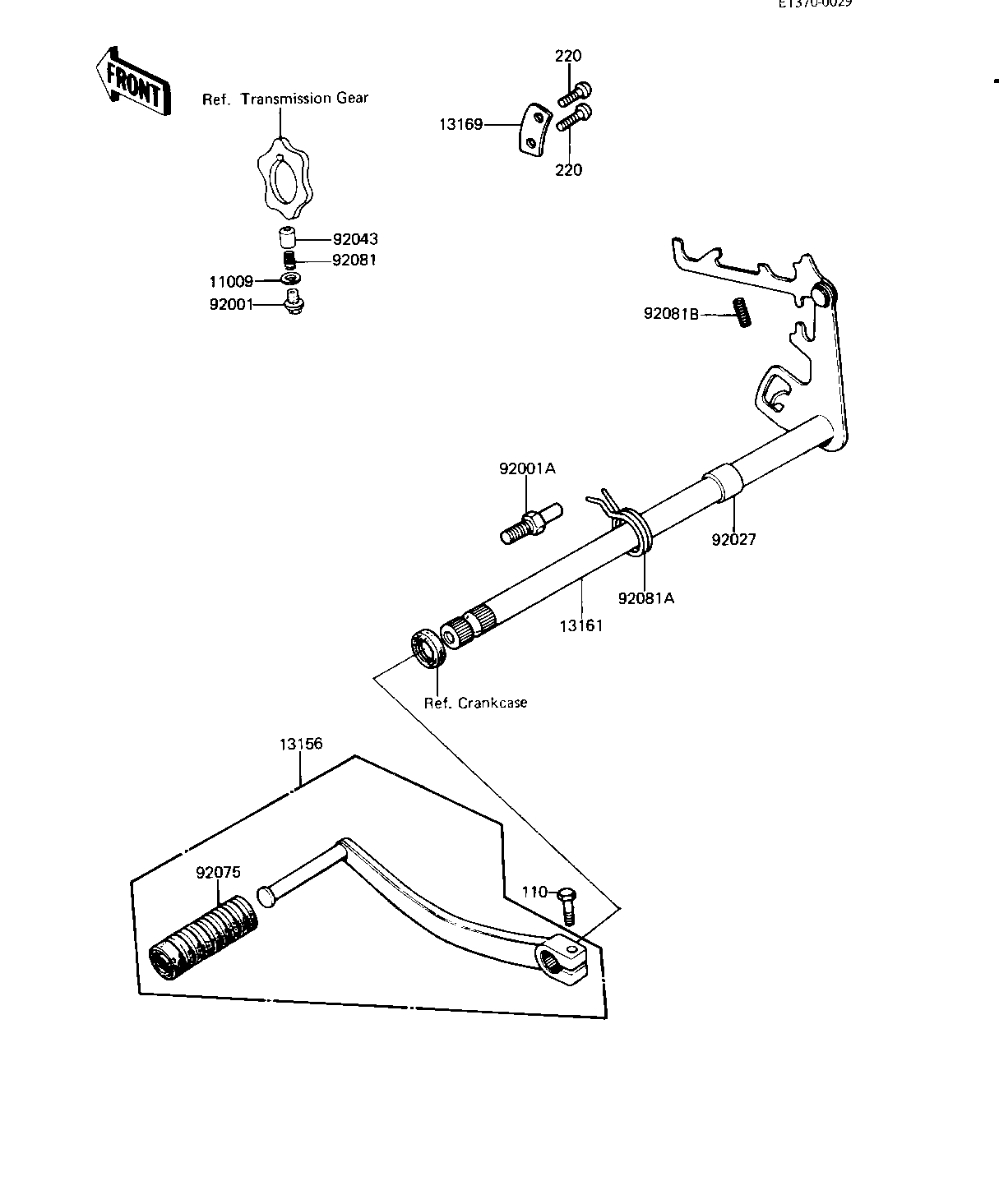

1983 KE125 - GEAR CHANGE MECHANISM ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11009 | 92065-090 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 13156 | 13242-1272 | 1 | ||
| LEVER ASY,GEAR SHIFT | 13161 | 13161-040 | 1 | ||
| PLATE CHNG DRUM PSTN | 13169 | 13169-002 | 1 | ||
| BOLT,10MM | 92001 | 92001-131 | 1 | ||
| BOLT,RETURN SPRING | 92001A | 92001-1401 | 1 | ||
| COLLAR,GEAR CHNG LEV | 92027 | 92027-205 | 1 | ||
| PIN-NEUTRAL POSITION | 92043 | 92043-076 | 1 | ||
| RUBBER CHANGE PEDAL | 92075 | 13157-004 | 1 | ||
| SPRING | 92081 | 92081-112 | 1 | ||
| SPRING,TENTION | 92081A | 92081-1129 | 1 | ||
| SPRING,KICK PAWL | 92081B | 92081-124 | 1 | ||
| BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 |
