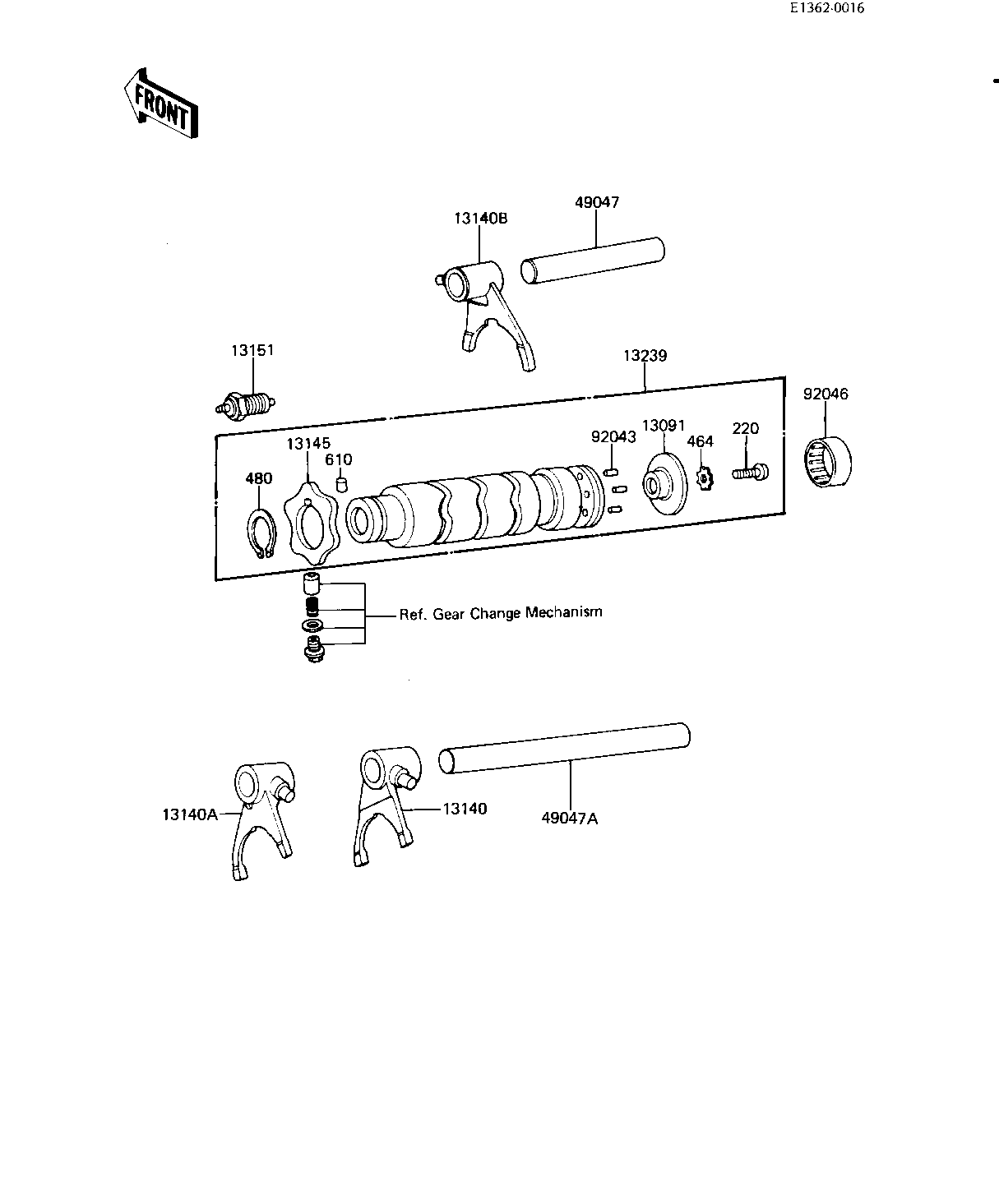

1983 KE125 - GEAR CHANGE DRUM & FORKS ('82-'83 A9/A10
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLTE,SHIFT DRUM PIN | 13091 | 13142-017 | 1 | ||
| FORK,SELECTOR,LOW&4TH | 13140 | 13140-058 | 1 | ||
| FORK,SELECTOR,2ND&3RD | 13140A | 13140-059 | 1 | ||
| FORK,SELECTOR,5TH&TOP | 13140B | 13140-060 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-1058 | 1 | ||
| SWITCH,NEUTRAL | 13151 | 13151-019 | 1 | ||
| DRUM ASSY,GEAR SHIFT | 13239 | 13239-018 | 1 | ||
| RODSHIFT,SHORT | 49047 | 13209-014 | 1 | ||
| RODSHIFT,SHORT | 49047A | 13209-014 | 1 | ||
| PIN,GEAR CHNGE DRUM | 92043 | 92042-030 | 6 | ||
| BEARING,NEEDLE | 92046 | 92046-043 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 1 | ||
| WASHER LOCK 6MM | 464 | 464H0600 | 1 | ||
| CIRCLIP,30MM | 480 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 610 | 610A0406 | 1 |
