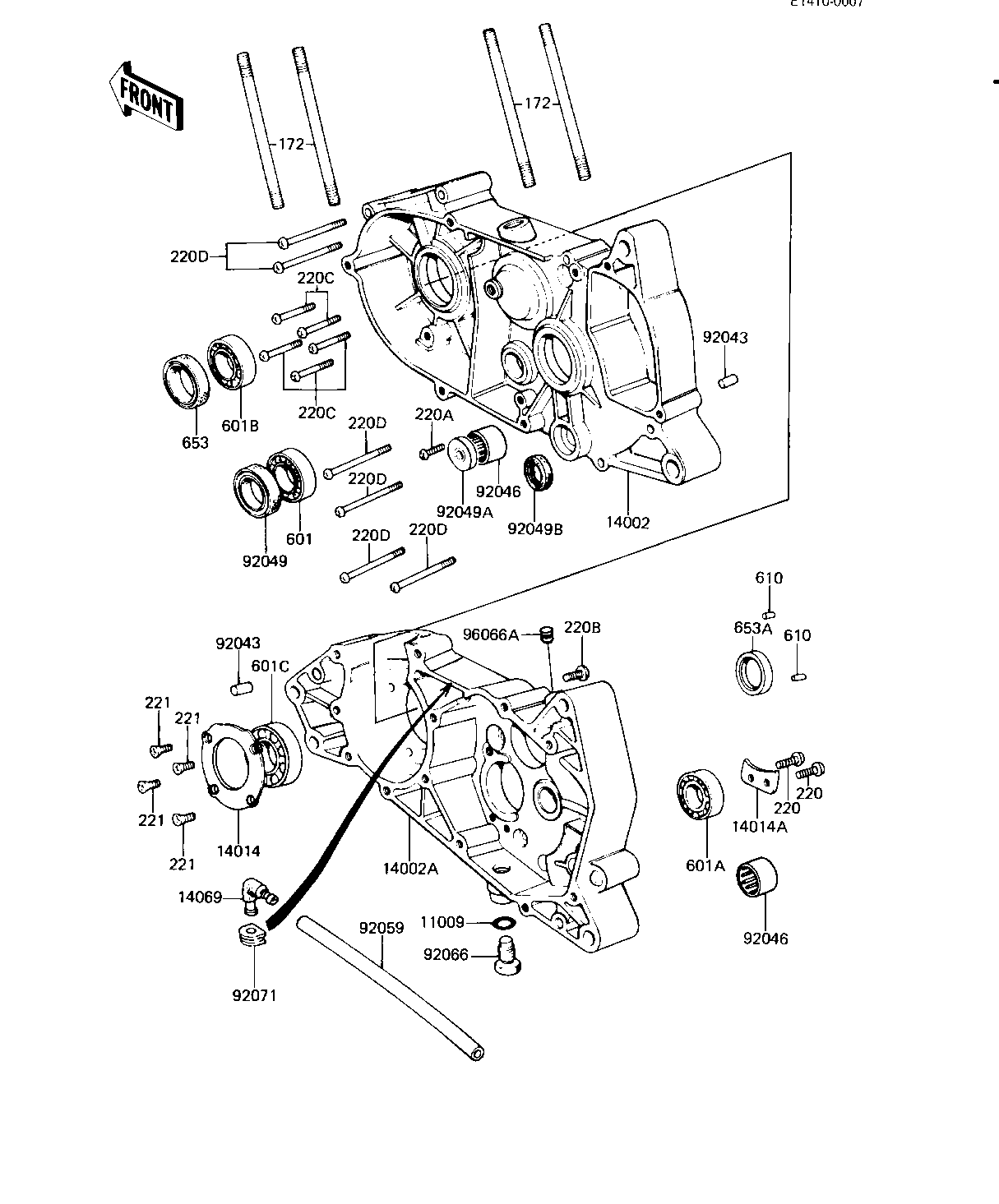

1983 KE125 - CRANKCASE ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-DRAIN PLUG | 11009 | 92065-073 | 1 | ||
| SET-CRANKCASE,F.BLACK | 14002 | 14001-5138 | 1 | ||
| SET-CRANKCASE,F.BLACK | 14002A | 14001-5138 | 1 | ||
| PLATE,CRANK BEARING | 14014 | 14014-028 | 1 | ||
| PLATE,MISSION BERNG | 14014A | 14014-029 | 1 | ||
| BREATHER ASSY | 14069 | 14069-1001 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 92043 | 92043-1037 | 4 | ||
| BRG,N,7E-HK1412 | 92046 | 92046-037 | 2 | ||
| OIL SEAL SC25376 | 92049 | 92050-013 | 1 | ||
| OIL SEAL,PUSH ROD | 92049A | 92050-058 | 1 | ||
| SEAL-OIL | 92049B | 92049-1271 | 1 | ||
| BREATHER ASSY | 92059 | 14069-1001 | 1 | ||
| PLUG | 92066 | 92066-1240 | 1 | ||
| RUBBER PLUG | 92066A | 92074-035 | 1 | ||
| GROMMET | 92071 | 92071-042 | 1 | ||
| STUD,8X70 | 172 | 172G0870 | 4 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 2 | ||
| SCREW PAN HEAD 6X20 | 220A | 220B0620 | 1 | ||
| SCREW PAN HEAD 6X25 | 220B | 220B0625 | 1 | ||
| SCREW PAN HEAD 6X40 | 220C | 220B0640 | 5 | ||
| SCREW PAN HEAD 6X60 | 220D | 220B0660 | 6 | ||
| SCREW CNTSNK HD 6X16 | 221 | 221B0616 | 4 | ||
| BEARING BALL #6004 | 601 | 601B6004 | 1 | ||
| BEARING BALL #6203 | 601A | 601B6203 | 1 | ||
| BEARING BALL #6204 | 601B | 601B6204 | 1 | ||
| BEARING BALL #6304 | 601C | 601B6304 | 1 | ||
| PIN DOWEL 5X12 | 610 | 610A0512 | 2 | ||
| SEAL-OIL | 653 | 92049-1240 | 1 | ||
| SEAL-OIL | 653A | 92049-1250 | 1 |
| GASKET-DRAIN PLUG | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE,F.BLACK | |
| REF # | 14002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE,F.BLACK | |
| REF # | 14002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CRANK BEARING | |
| REF # | 14014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MISSION BERNG | |
| REF # | 14014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER ASSY | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRG,N,7E-HK1412 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL SC25376 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,PUSH ROD | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER ASSY | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER PLUG | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X70 | |
| REF # | 172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X20 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X40 | |
| REF # | 220C |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X60 | |
| REF # | 220D |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X16 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6004 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6203 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6204 | |
| REF # | 601B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6304 | |
| REF # | 601C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 5X12 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 653 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 653A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
