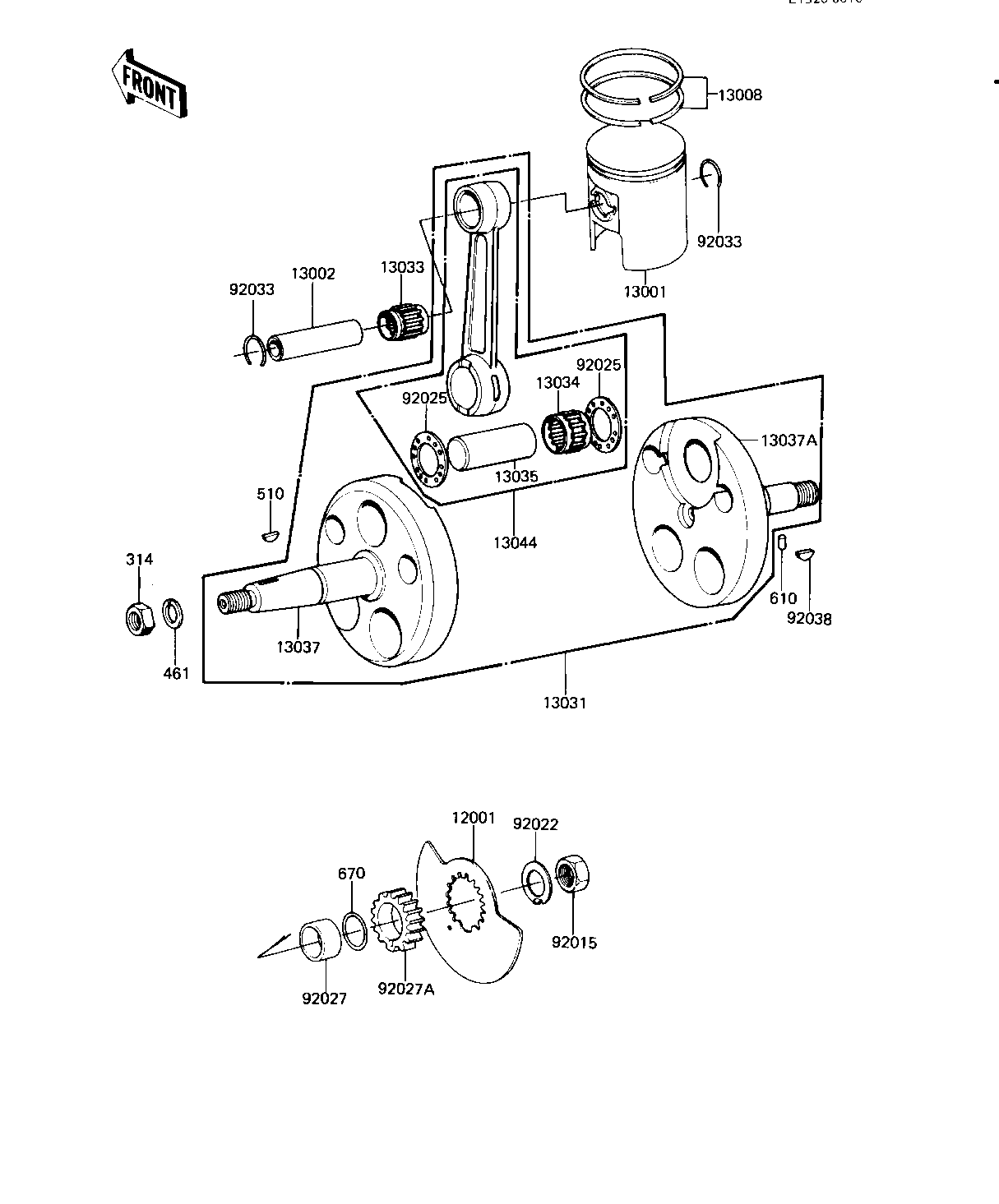

1983 KE125 - CRANKSHAFT/PISTON/ROTARY VALVE ('82-'83
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,ROTARY DISC | 12001 | 12002-029 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-1124 | 1 | ||
| PIN-PISTON | 13002 | 13002-1002 | 1 | ||
| RING-SET,PISTON,S.T.D | 13008 | 13008-5010 | 1 | ||
| CRANK AND CONROD ASSY | 13031 | 13031-1003 | 1 | ||
| BRG,N,UR14/20AP-1 | 13033 | 13033-035 | 1 | ||
| BRG,NEEDLE,KT202715EG | 13034 | 13034-1001 | 1 | ||
| CRANK PIN | 13035 | 13035-033 | 1 | ||
| CRANKSHAFT,L.H | 13037 | 13037-059 | 1 | ||
| CRANKSHAFT,R.H. | 13037A | 13037-1084 | 1 | ||
| CONNECTING ROD SET | 13044 | 13044-5003 | 1 | ||
| NUT 12MM | 92015 | 92015-006 | 1 | ||
| WASHER LOCK 12MM | 92022 | 92024-003 | 1 | ||
| WASHER SIDE | 92025 | 92025-005 | 2 | ||
| COLLAR,ENG SPROCKET | 92027 | 92027-1077 | 1 | ||
| COLLAR,ROTARY DISC | 92027A | 92027-1272 | 1 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-003 | 2 | ||
| WOODRUFF KEY PRY PINI | 92038 | 92038-003 | 1 | ||
| NUT,10MM | 314 | 314B1000 | 1 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 1 | ||
| WOODRUFF KEY | 510 | 510A3200 | 1 | ||
| PIN DOWEL 4X10 | 610 | 610A0410 | 1 | ||
| "0" RING,16MM | 670 | 670B2016 | 1 |
