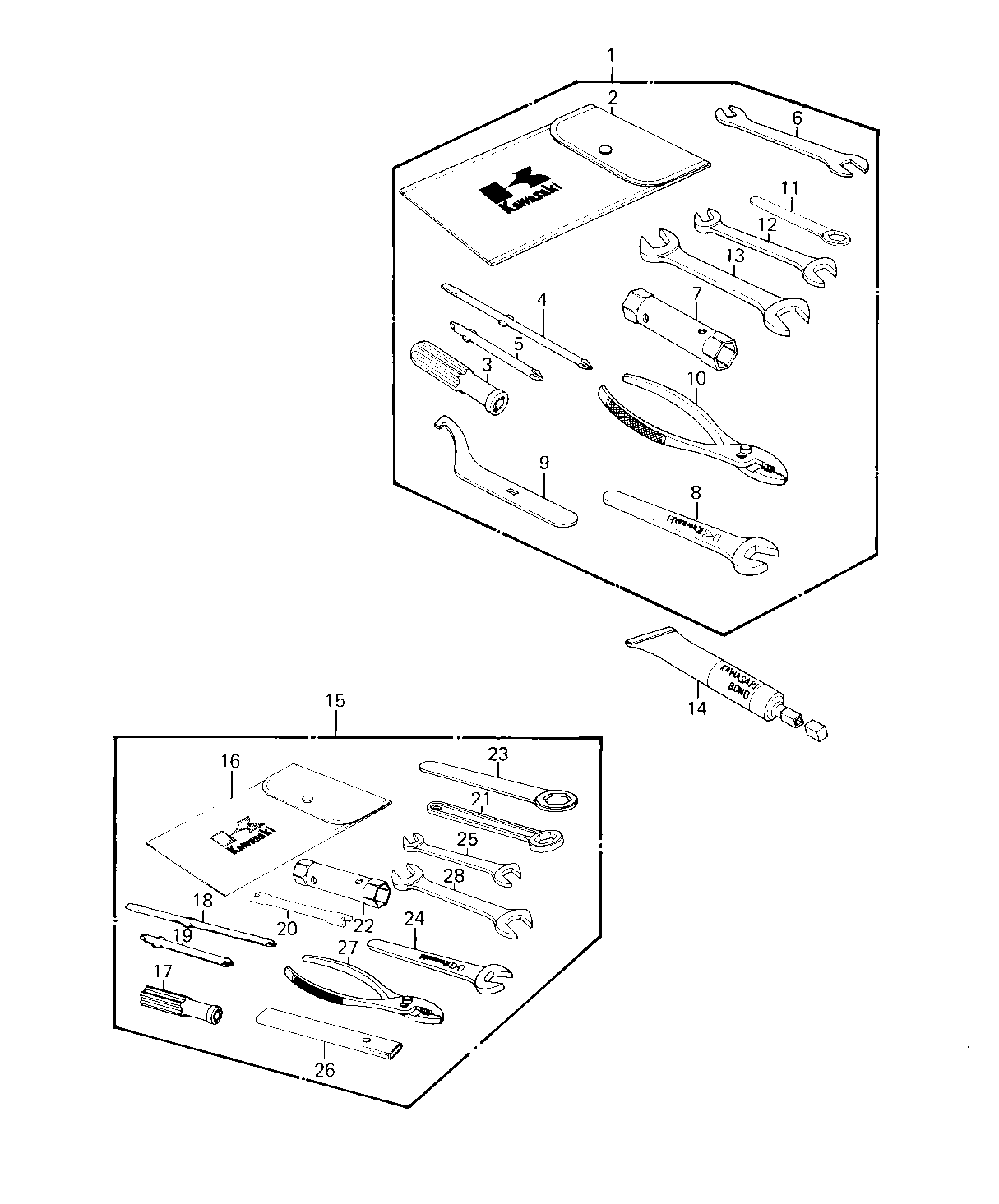

1980 KE125 - OWNER TOOLS ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL KIT | 1 | 56007-1058 | 1 | KE125-A7 | |
| BAG,TOOL | 2 | 56008-008 | 1 | KE125-A7 | |
| GRIP,SCREW DRIVER | 3 | 92106-1001 | 1 | KE125-A7 | |
| TOOL-DRIVER | 4 | 92107-1052 | 1 | KE125-A7 | |
| SCREW DRIVER #3 PHLIP | 5 | 92107-005 | 1 | KE125-A7 | |
| TIGHTENER,SPOKE | 6 | 92108-011 | 1 | KE125-A7 | |
| WRENCH,BOX,17X21 | 7 | 92110-012 | 1 | KE125-A7 | |
| WRENCH,OPEN END,10M/M | 8 | 92110-1031 | 1 | KE125-A7 | |
| 92110-1035 (Canada) | 9 | 92110-1006 | 1 | KE125-A7 | |
| PLIERS,160MM | 10 | 92112-003 | 1 | KE125-A7 | |
| TOOL-WRENCH,BOX END,2 | 11 | 92110-1150 | 1 | KE125-A7 | |
| WRENCH,OPEN END,12X13 | 12 | 92126-002 | 1 | KE125-A7 | |
| TOOL-WRENCH,OPEN END, | 13 | 92110-1153 | 1 | KE125-A7 | |
| LIQUID GASKET | 14 | 92104-002 | (1 | OPTION | |
| TOOLKIT | 15 | 56007-1073 | 1 | KE125-A8 | |
| BAG,TOOL | 16 | 56008-009 | 1 | KE125-A8 | |
| GRIP,SCREW DRIVER | 17 | 92106-1001 | 1 | KE125-A8 | |
| TOOL-DRIVER | 18 | 92107-1052 | 1 | KE125-A8 | |
| SCREW DRIVER #3 PHLIP | 19 | 92107-005 | 1 | KE125-A8 | |
| TIGHTENER,SPOKE | 20 | 92108-011 | 1 | KE125-A8 | |
| TOOL-WRENCH,BOX END,2 | 21 | 92110-1147 | 1 | KE125-A8 | |
| WRENCH,BOX,17X21 | 22 | 92110-012 | 1 | KE125-A8 | |
| TOOL-WRENCH,BOX END,2 | 23 | 92110-1150 | 1 | KE125-A8 | |
| WRENCH,OPEN END,19M/M | 24 | 92110-1004 | 1 | KE125-A8 | |
| TOOL-WRENCH,OPEN END | 25 | 92110-1038 | 1 | KE125-A8 | |
| BAR, BOS END WRENCH | 26 | 92111-004 | 1 | KE125-A8 | |
| PLIERS,160MM | 27 | 92112-003 | 1 | KE125-A8 | |
| TOOL-WRENCH,OPEN END, | 28 | 92110-1153 | 1 | KE125-A8 |
