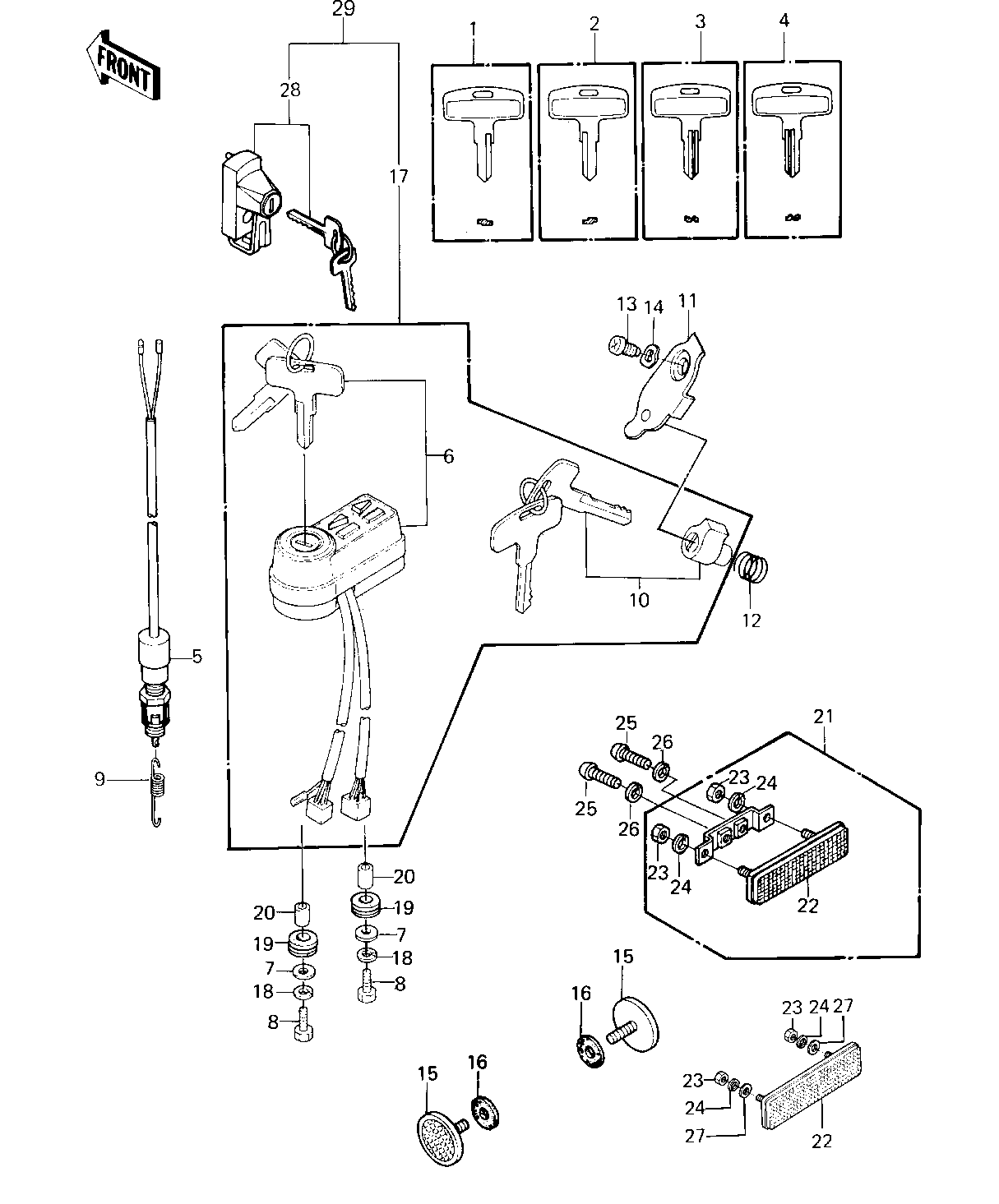

1980 KE125 - IGNITION SWITCH/LOCKS/REFLECTORS ('80-'8
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| KEY,BLANK | 1 | 27008-1024 | (1 | OPTION | |
| KEY,BLANK | 2 | 27008-1025 | (1 | OPTION | |
| KEY,BLANK | 3 | 27008-1026 | (1 | OPTION | |
| KEY,BLANK | 4 | 27008-1027 | (1 | OPTION | |
| SWITCH,BRAKE LIGHT | 5 | 27010-025 | 1 | ||
| SWITCH ASSY,IGNITION | 6 | 27005-1040 | 1 | ||
| WASHER 6.5X20X1.6T | 7 | 92022-125 | 2 | ||
| BOLT 6X22 | 8 | 112B0622 | 2 | ||
| SPRING BRAKE LAMP SW | 9 | 27011-006 | 1 | ||
| LOCK ASSY,STEERING | 10 | 27016-042 | 1 | ||
| CAP,STEERING LOCK | 11 | 11012-1134 | 1 | ||
| SPRING-STEERING LOCK | 12 | 27032-001 | 1 | ||
| SCREW-TAPPING | 13 | 92008-007 | 1 | ||
| WASHER | 14 | 92097-003 | 1 | ||
| REFLECTOR,REFLEX | 15 | 28012-016 | 2 | ||
| DAMPER RUBBER,REFLECT | 16 | 92094-011 | 2 | ||
| LOCK ASSY,KE125-A7 | 17 | 27004-5072 | (1 | OPTION | |
| WASHER SPRING 6MM | 18 | 461F0600 | 2 | ||
| DAMPER RUBBER,RR FENR | 19 | 92075-209 | 2 | ||
| COLLAR | 20 | 92027-241 | 2 | ||
| REFLECTOR ASSY,REFLEX | 21 | 28001-1011 | 1 | KE125-A7 | |
| REFLECTOR,REAR REFLEX | 22 | 28012-1005 | 1 | ||
| NUT,5MM | 23 | 311B0500 | 2 | ||
| WASHER SPRING 5MM | 24 | 461F0500 | 2 | ||
| SCREW PAN HEAD 6X12 | 25 | 220B0612 | 2 | KE125-A7 | |
| WASHER SPRING 6MM | 26 | 461F0600 | 2 | KE125-A7 | |
| WASHER PLAIN 5MM | 27 | 411B0500 | 2 | KE125-A8 | |
| LOCK ASSY,HELMET | 28 | 27016-5032 | 1 | KE125-A8 | |
| SWITCH-ASSY | 29 | 27004-5120 | (1 | OPTION |
