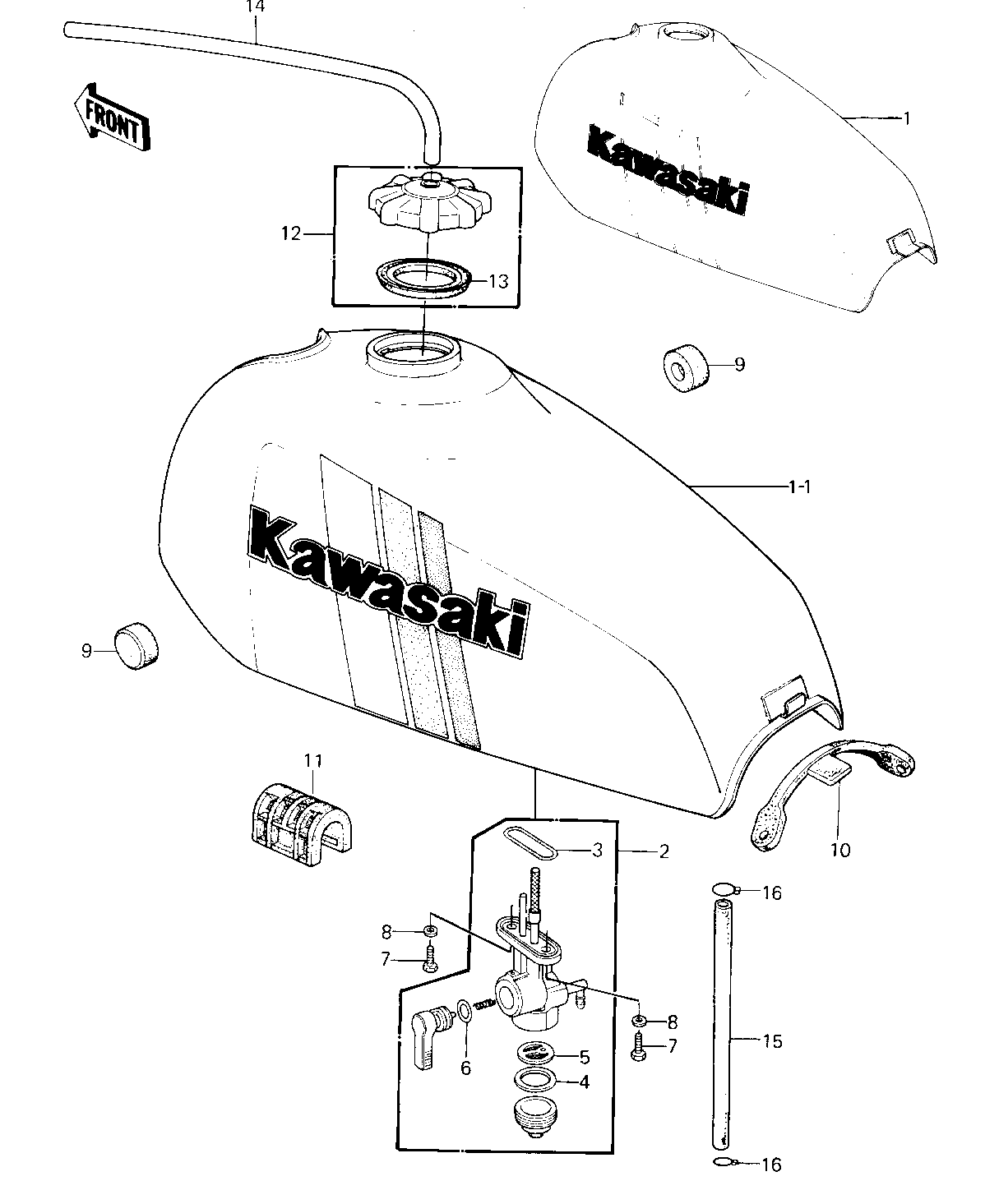

1980 KE125 - FUEL TANK ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,F.RED | 1 | 51001-1028-B1 | 1 | KE125-A7 | |
| TANK-FUEL,F.RED | 1-1 | 51001-5085-B1 | 1 | KE125-A8 | |
| TAP ASSY,FUEL | 2 | 51023-1001 | 1 | ||
| "O" RING | 3 | 51039-003 | 1 | ||
| GASKET,FUEL TAP CUP | 4 | 11009-1013 | 1 | ||
| STRINER,FUEL TAP | 5 | 14043-1002 | 1 | ||
| "0" RING, 10MM | 6 | 670B2010 | 1 | ||
| BOLT,6X20,FUEL TAP | 7 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 8 | 92022-183 | 2 | ||
| DAMPER RUBBER-FL TANK | 9 | 92075-101 | 2 | ||
| BAND,FUEL TANK | 10 | 92072-049 | 1 | ||
| DAMPER RUBBER | 11 | 92075-284 | 1 | ||
| CAP ASSY,TANK,FUEL | 12 | 51048-1004 | 1 | ||
| GASKET,FUEL TANK CAP | 13 | 51059-006 | 1 | ||
| TUBE-RUBBER 5X400 | 14 | 702A05400 | 1 | ||
| TUBE,BREATHER | 15 | 92059-129 | 1 | ||
| CLAMP FUEL PIPE | 16 | 92037-010 | 2 |
| TANK-FUEL,F.RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| TANK-FUEL,F.RED | |
| REF # | 1-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| TAP ASSY,FUEL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TAP CUP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRINER,FUEL TAP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-FL TANK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP ASSY,TANK,FUEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER 5X400 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP FUEL PIPE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
