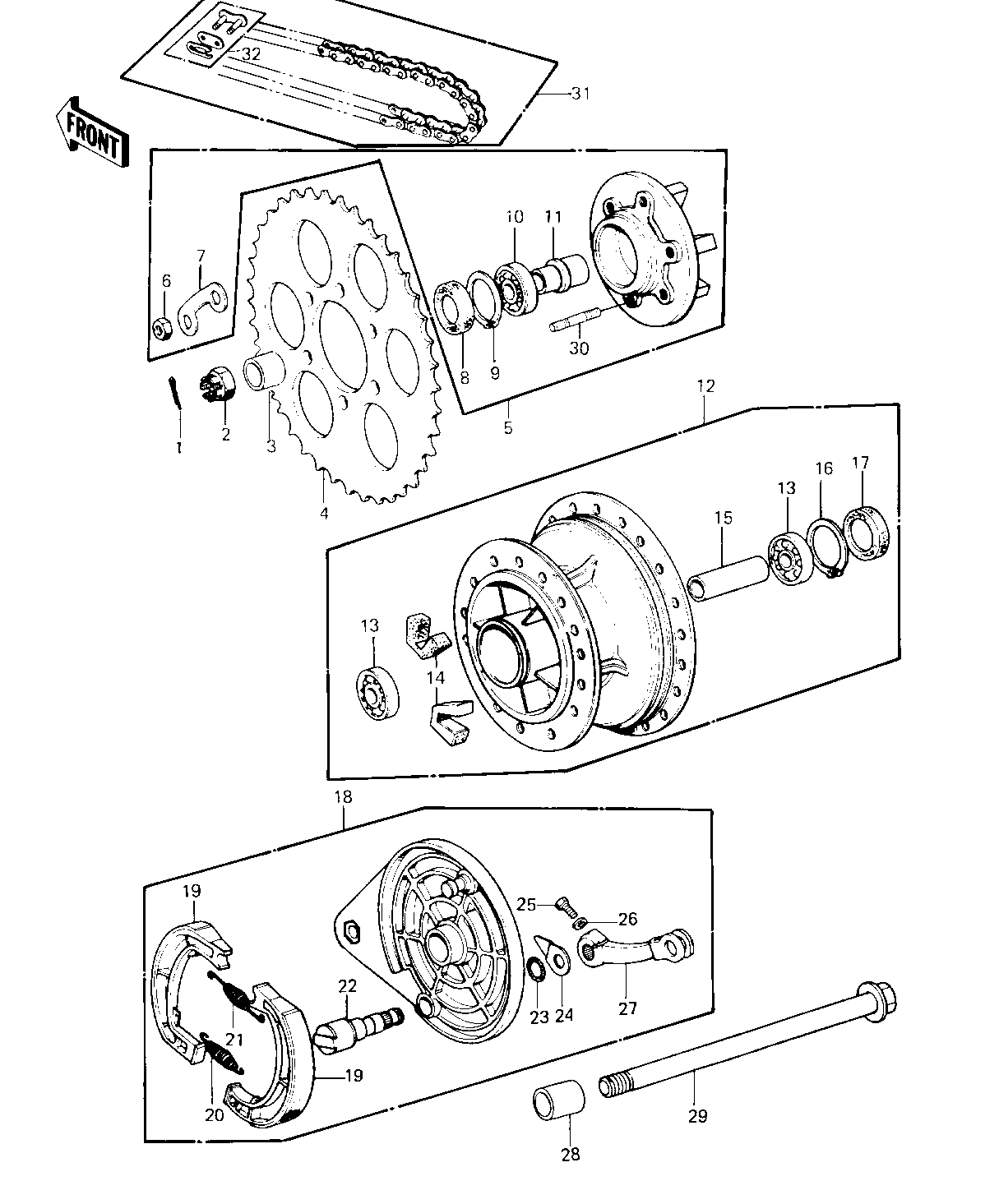

1980 KE125 - REAR HUB/BRAKE/CHAIN ('80-'81 A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035 1
NUT CASTLE 14MM 2 92103-006 1
COLLAR,RR BRAKE,L=22 3 92027-1253 1
REAR SPROCKET.50T 4 42041-146 1
REAR SPROCKET,54T 4 42041-147 (1
COUPLING-ASSY,RR HUB 5 42033-1028 1
NUT,8M/M 6 317B0800 6
WASHER,SPROCKET LOCK 7 92088-019 3
OIL SEAL,RR HUB BRNG 8 92050-060 1
CIRCLIP,42MM 9 92033-1041 1
BEARING BALL #6004 10 601B6004 1
SLEEVE,RR HUB COUPLNG 11 42036-018 1
DRUM-ASSY,RR BRK 12 41034-1025 1
BEARING BALL #6202 13 601B6202 2
DAMPER,REAR HUB SHOCK 14 42014-023 6
SPACER,RR HUB BEARING 15 42010-029 1
CIRCLIP,35MM 16 481J3500 1
OIL SEAL,TCY22358 17 654A223508 1
PANEL-ASY,RR BRK 18 41035-1036 1
SHOE,BRAKE 19 42019-010 2
SPRING,BRAKE SHOE 20 92081-1550 1
SPRING,BRAKE SHOE 21 92081-1766 1
CAM SHAFT,REAR BRAKE 22 42026-025 1
"0" RING,11MM 23 92055-004 1
INDICATOR,FR BRK PNL 24 41085-002 1
BOLT-UPSET 25 112G0622 1
WASHER PLAIN 6MM 26 410B0600 1
LEVER,REAR BRAKE CAM 27 42029-030 1
COLLAR,RR BRAKE,L=25 28 92027-1254 1
AXLE,REAR,15X247 29 41068-1049 1
AXLE,REAR,15X247 29 41068-1049 1
STUD,8X17 30 92004-1015 6
DR CHAIN 428X118H 31 92057-030 1
JOINT-CHAIN 32 92058-1015 1
