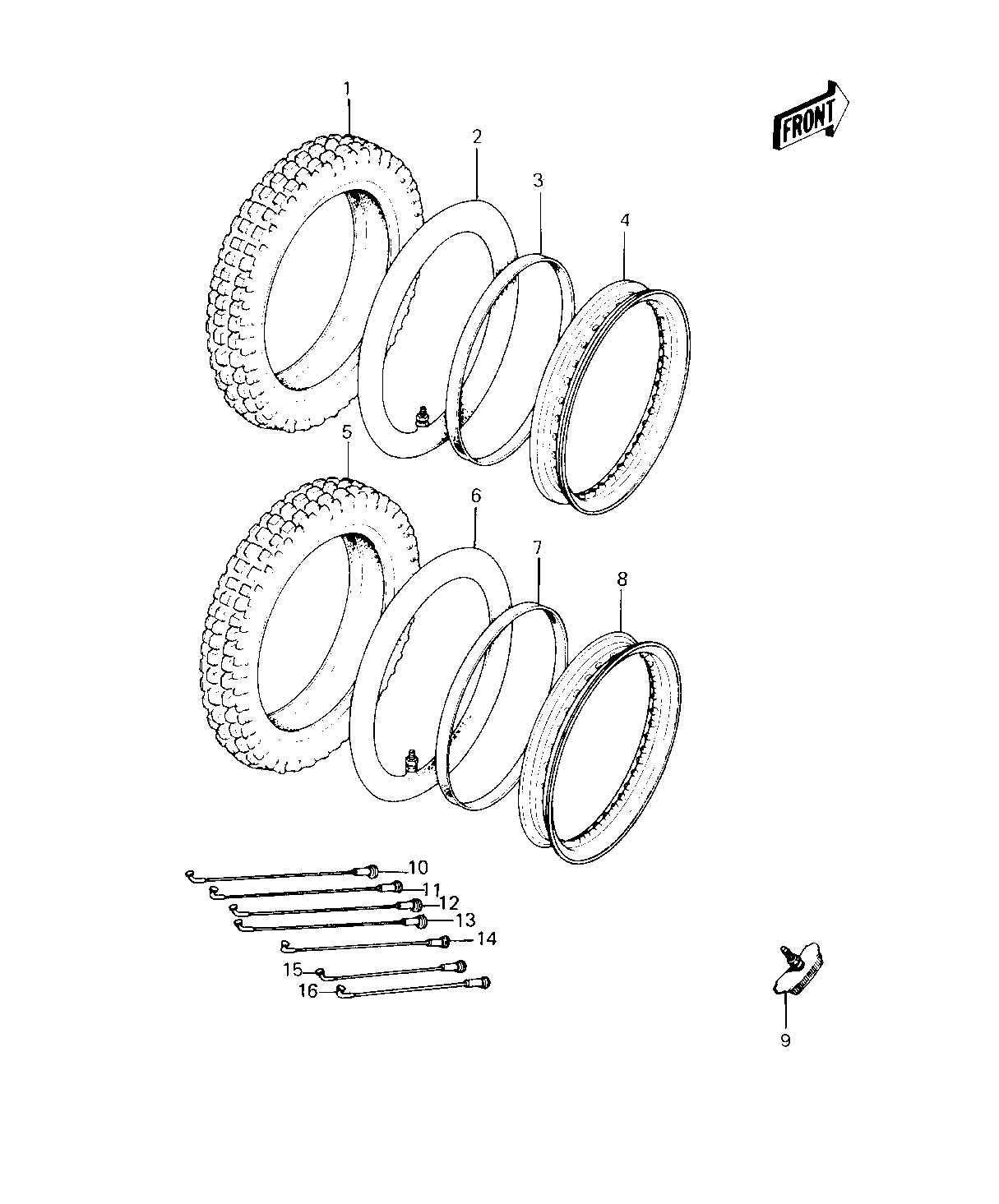

1980 KE125 - WHEELS/TIRES ('80-81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-21 Y965 F | 1 | 41002-1215 | 1 | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
| BAND,RIM,3.00-21 | 3 | 41023-1001 | 1 | ||
| RIM,1.60AX21 | 4 | 41025-078 | 1 | ||
| TIRE 350-18 Y962 R | 5 | 41002-1216 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 41022-1004 | 1 | ||
| BAND RIM | 7 | 41023-001 | 1 | ||
| RIM 1.85BX18W | 8 | 41025-044 | 1 | ||
| PROTECTOR-BEAD 1.85B | 9 | 41024-007 | 1 | ||
| SPOKE-ASY,FR INNER | 10 | 41027-068 | 9 | 98.2 X 227 M/M | |
| SPOKE-ASY FR OUTER | 11 | 41028-068 | 9 | 85.3 X 227 M/M | |
| SPOKE-ASY,FR | 12 | 41027-069 | 18 | 90 X 239.5 M/M | |
| SPOKE-ASY,RR INNER L | 13 | 41027-070 | 9 | 106 X 171 M/M | |
| SPOKE-ASY RR OUTER L | 14 | 41028-069 | 9 | 80 X 170 M/M | |
| SPOKE-ASY,RR INNER R | 15 | 41027-071 | 9 | 108 X 167.5 M/M | |
| SPOKE-ASY RR OUTER R | 16 | 41028-070 | 9 | 80 X 166.5 M/M |
