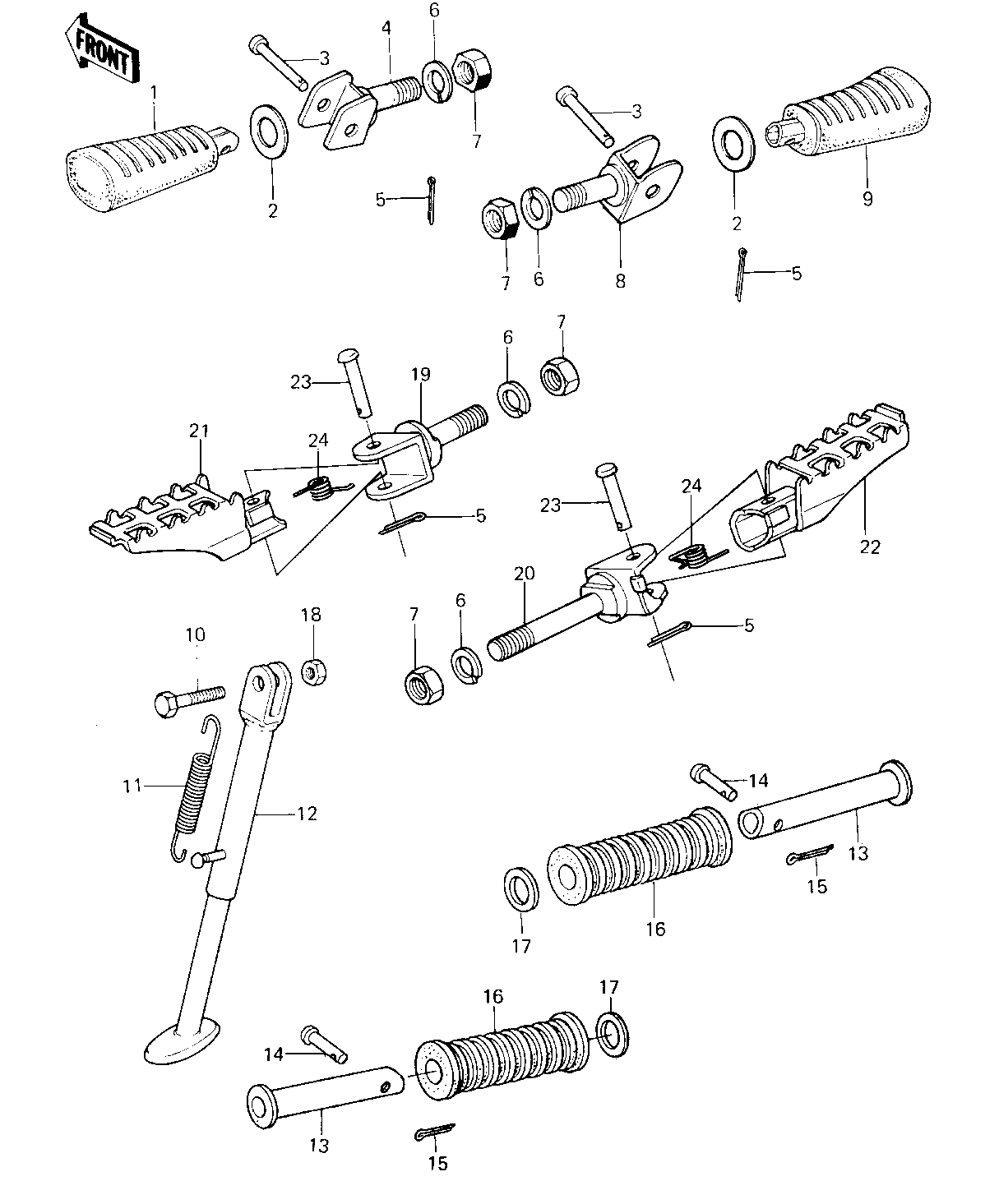

1980 KE125 - FOOTRESTS/STAND ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP-ASSY,FR,LH | 1 | 34027-1114 | 1 | KE125-A7 | |
| WASHER,PLAIN | 2 | 92022-250 | 2 | KE125-A7 | |
| PIN-FOOTREST BAR FIT | 3 | 92043-080 | 2 | KE125-A7 | |
| BRACKET,FOTRST BAR,LH | 4 | 34003-051 | 1 | KE125-A7 | |
| PIN,COTTER,2.5X15 | 5 | 550D2515 | 2 | ||
| WASHER SPRING 14MM | 6 | 461F1400 | 2 | ||
| NUT,14MM | 7 | 314B1400 | 2 | ||
| BRACKET,FOTRST BAR,RH | 8 | 34003-052 | 1 | KE125-A7 | |
| STEP-ASSY,FR,RH | 9 | 34027-1115 | 1 | KE125-A7 | |
| BOLT,HEX HEAD 10X35 | 10 | 92001-1252 | 1 | ||
| SPRING,SIDE STAND | 11 | 34025-008 | 1 | ||
| STAND-SIDE | 12 | 34024-1043 | 1 | ||
| BAR-RR FOOTREST (OPT) | 13 | 34028-009 | 2 | ||
| PIN | 14 | 92043-1464 | 2 | ||
| PIN COTTER 2.0X15 | 15 | 550D2015 | 2 | ||
| RUBBER,REAR FOOTREST | 16 | 92076-024 | 2 | ||
| WASHER-PLAIN (OPT) | 17 | 92022-199 | 2 | ||
| NUT,10MM | 18 | 314B1000 | 1 | ||
| HOLDER-STEP,FR,LH | 19 | 34003-1112 | 1 | KE125-A8 | |
| HOLDER-STEP,RH | 20 | 34003-1111 | 1 | KE125-A8 | |
| STEP,L.H FR FOOTREST | 21 | 34028-1013 | 1 | KE125-A8 | |
| STEP,R.H FR FOOTREST | 22 | 34028-1014 | 1 | KE125-A8 | |
| PIN-FOOTREST BAR FIT | 23 | 92043-080 | 2 | KE125-A8 | |
| SPRING,FR FOOTREST | 24 | 92081-1133 | 2 | KE125-A8 |
| STEP-ASSY,FR,LH | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| WASHER,PLAIN | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| PIN-FOOTREST BAR FIT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| BRACKET,FOTRST BAR,LH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| PIN,COTTER,2.5X15 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 14MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FOTRST BAR,RH | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| STEP-ASSY,FR,RH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| BOLT,HEX HEAD 10X35 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SIDE STAND | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAR-RR FOOTREST (OPT) | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RUBBER,REAR FOOTREST | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN (OPT) | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-STEP,FR,LH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| HOLDER-STEP,RH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| STEP,L.H FR FOOTREST | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| STEP,R.H FR FOOTREST | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| PIN-FOOTREST BAR FIT | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| SPRING,FR FOOTREST | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KE125-A8 |
