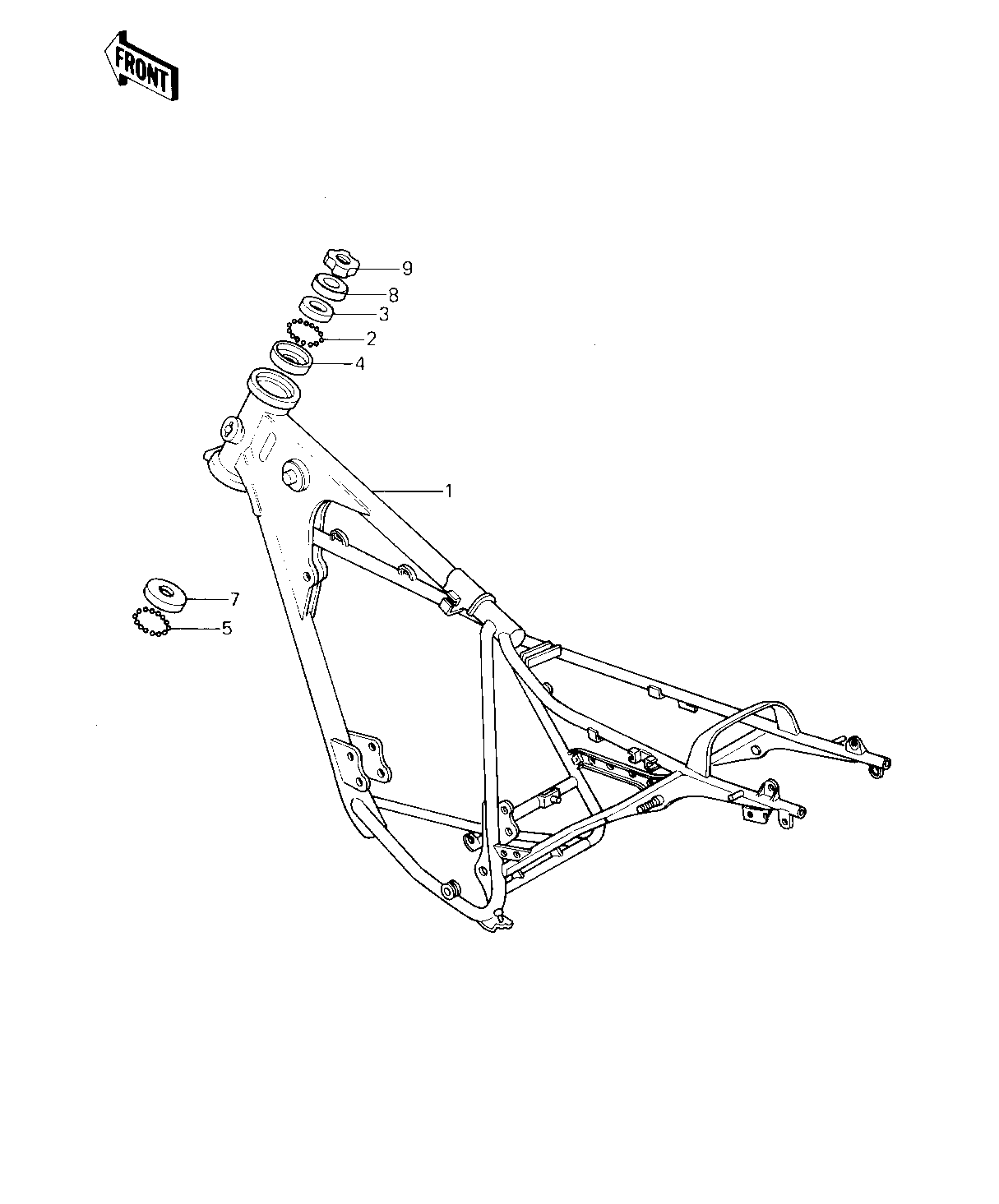

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP | 1 | 32002-1256 | 1 | KE125-A7 | |
| FRAME-COMP | 1 | 32002-1256 | 1 | KE125-A8 | |
| BALL STEEL 3/16' | 2 | 600A0600 | 23 | ||
| CONE,STRG STM BRG,UP | 3 | 92047-014 | 1 | ||
| RACE,STRG STM BEARING | 4 | 92048-009 | 1 | ||
| BALL STEEL 1/4' | 5 | 600A0800 | 19 | ||
| COLLAR,REAR FENDER | 6 | 92027-1181 | 2 | ||
| RACE STEERING BEARING | 7 | 92048-005 | 1 | ||
| CAP,STEERING STEM | 8 | 46098-018 | 1 | ||
| NUT,STEERING STEM | 9 | 92090-022 | 1 |
| FRAME-COMP | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| FRAME-COMP | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| BALL STEEL 3/16' | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RACE STEERING BEARING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
