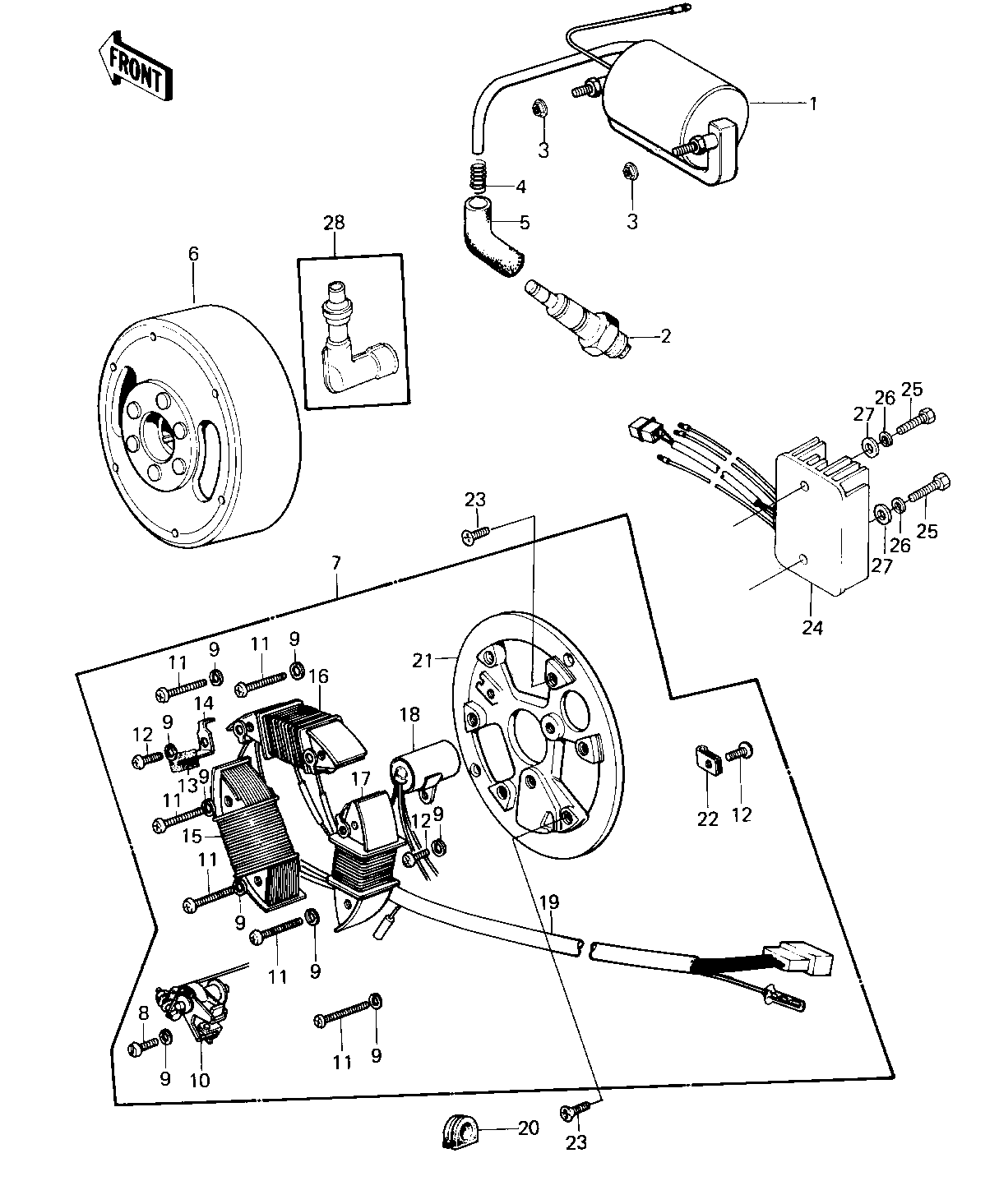

1980 KE125 - IGNITION/GENERATOR ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL,IGNITION | 1 | 21121-1047 | 1 | ||
| SPARK PLUG B8ES | 2 | B8ES | 1 | ||
| NUT-6MM | 3 | 92015-1078 | 2 | ||
| SPRING-SPARK PLUG CAP | 4 | 92101-001 | 1 | ||
| CAP SPARK PLUG | 5 | 21130-009 | 1 | ||
| FLYWHEEL,MAGNETO | 6 | 21050-1008 | 1 | ||
| STATOR ASSY | 7 | 21003-1014 | 1 | ||
| SCREW-PAN-CRSOSS,4X12 | 8 | 220B0412 | 1 | ||
| WASHER SPRING 4MM | 9 | 461F0400 | 9 | ||
| BREAKER ASSY, CONTACT | 10 | 21008-006 | 1 | ||
| SCREW PAN HEAD 4X30 | 11 | 220E0430 | 6 | ||
| SCREW PAN HEAD 4X6 | 12 | 220B0406 | 3 | ||
| FELT OIL | 13 | 21019-005 | 1 | ||
| HOLDER,OIL FELT | 14 | 21038-002 | 1 | ||
| COIL,CHARGING B | 15 | 59031-1002 | 1 | ||
| COIL,CHARGING A | 16 | 59031-1001 | 1 | ||
| COIL,EXCITING | 17 | 21049-1004 | 1 | ||
| CONDENSER | 18 | 21013-006 | 1 | ||
| WIRING HARNESS,MAGNET | 19 | 26001-1077 | 1 | ||
| GROMMET WIRING HARN | 20 | 21017-002 | 1 | ||
| PLATE-COIL,MAGNETO | 21 | 21048-1002 | 1 | ||
| CLAMP WIRING HARNESS | 22 | 21037-002 | 1 | ||
| SCREW CNTSNK HD 6X14 | 23 | 221B0614 | 2 | ||
| REGULATOR,VOLTAGE | 24 | 21066-1012 | 1 | ||
| BOLT-UPSET | 25 | 112G0625 | 2 | ||
| WASHER SPRING 6MM | 26 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 27 | 411B0600 | 2 |
