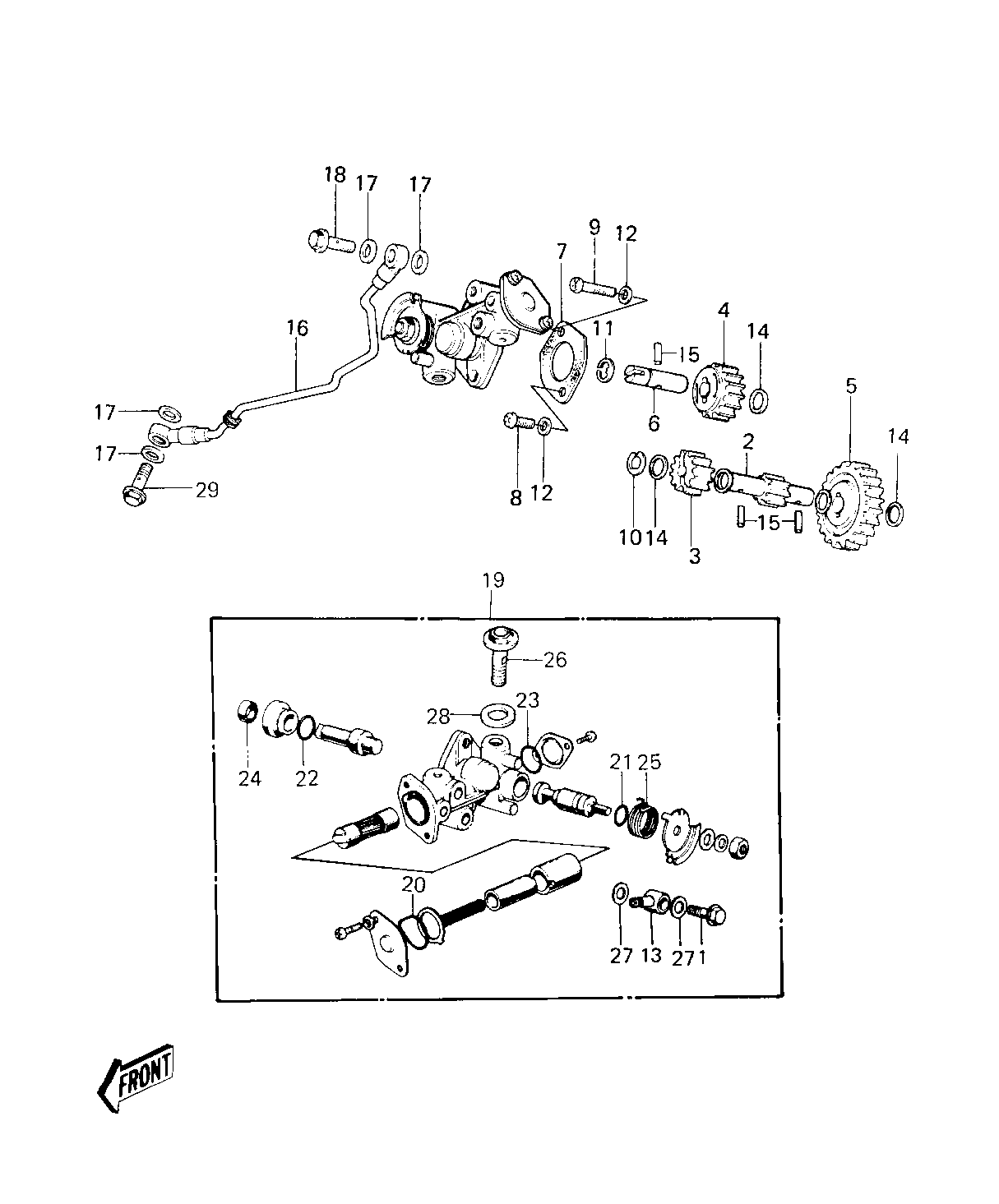

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-BANJO,6MM | 1 | 92060-013 | 1 | ||
| PINION,TACHOMETER | 2 | 13224-010 | 1 | ||
| GEAR,OIL PUMP | 3 | 16085-020 | 1 | ||
| GEAR,OIL PUMP | 4 | 16085-021 | 1 | ||
| GEAR,OIL PUMP | 5 | 16085-022 | 1 | ||
| SHAFT,OIL PUMP GEAR | 6 | 16086-003 | 1 | ||
| GASKET,OIL PUMP | 7 | 11060-1160 | 1 | ||
| SCREW-PAN-CROS | 8 | 220B0514 | 1 | ||
| SCREW PAN CROSS,5X28 | 9 | 220B0528 | 1 | ||
| CIRCLIP 7MM | 10 | 482J7000 | 1 | ||
| CIRCLIP 7MM | 11 | 482J7000 | 1 | ||
| WASHER OIL PUMP | 12 | 92022-037 | 2 | ||
| CONNECTOR BANJO | 13 | 92061-009 | 1 | ||
| WASHER,THRUST | 14 | 92026-095 | 5 | ||
| PIN,DOWEL | 15 | 92042-035 | 3 | ||
| PIPE,OIL | 16 | 16134-022 | 1 | ||
| WASHER OIL PUMP BANJO | 17 | 92022-077 | 4 | ||
| BOLT-BANJO,6MM | 18 | 92060-013 | 1 | ||
| OIL PUMP ASSY | 19 | 16082-1014 | 1 | ||
| "0" RING,UPPER CAP | 20 | 16088-002 | 1 | ||
| SEAL-OIL,CAMSHAFT,"X" | 21 | 92049-1294 | 1 | ||
| "0" RING,OIL PUMP SHT | 22 | 16090-002 | 1 | ||
| "0" RING,LOWER CAP | 23 | 16090-004 | 1 | ||
| OIL SEAL OIL PUMP SHT | 24 | 16091-001 | 1 | ||
| SPRING,OIL PUMP LEVER | 25 | 16093-007 | 1 | ||
| BOLT,AIR VENT | 26 | 92009-1010 | 1 | ||
| WASHER OIL PUMP BANJO | 27 | 92022-077 | 2 | ||
| WASHER | 28 | 92022-1006 | 1 | ||
| BOLT BANJO | 29 | 92060-008 | 1 |
