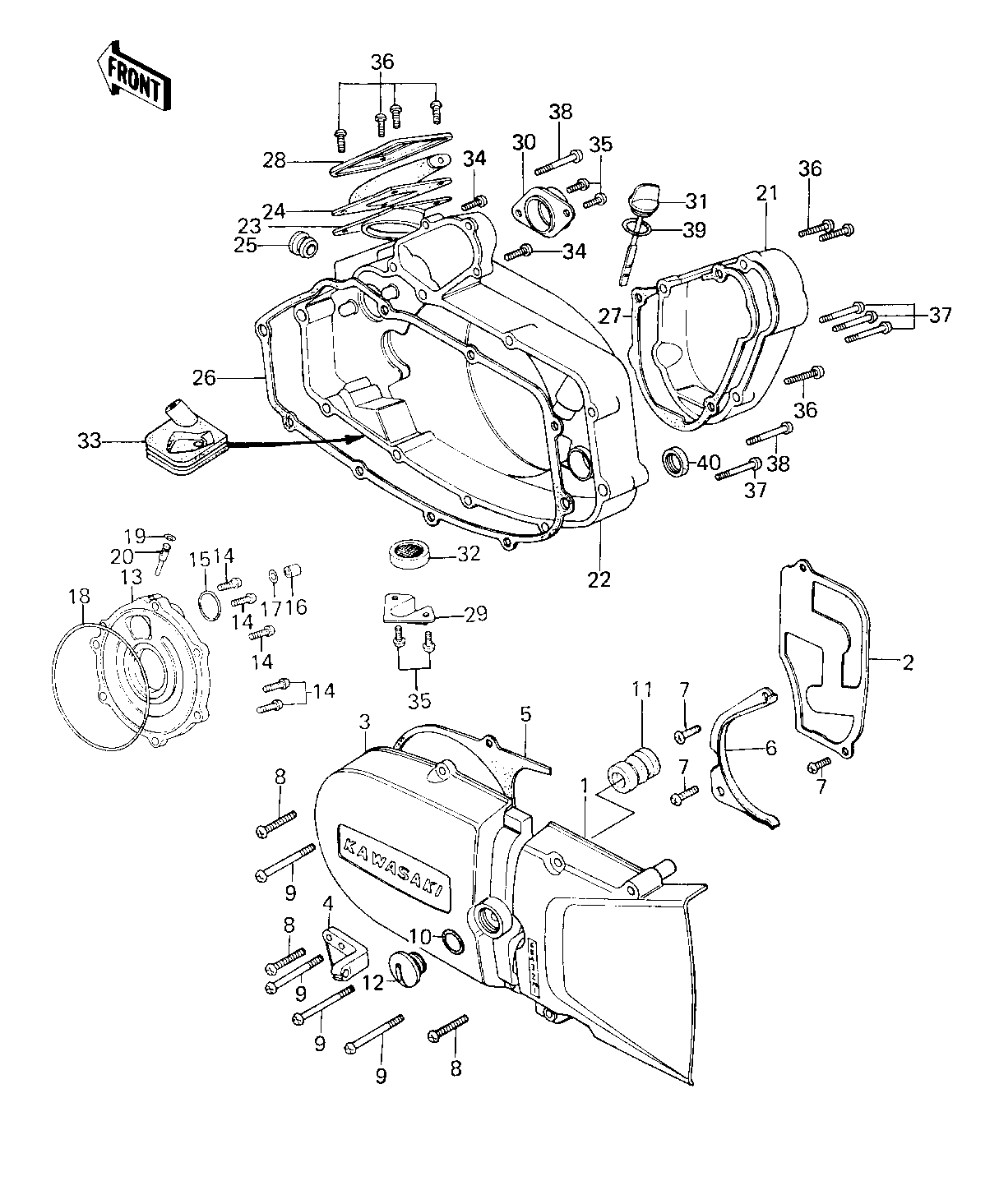

1980 KE125 - ENGINE COVERS ('80-81 A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,CHAIN 1 14026-1029 1
COVER,OIL PUMP 2 14030-060 1
COVER,MAGNETO,F.BLACK 3 14031-1053 1
HOLDER,WIRE GUIDE 4 14044-012 1
GASKET,L.H ENG COVER 5 14045-017 1
GUIDE,CHAIN 6 14077-003 1
SCREW PAN HEAD 6X12 7 220B0612 3
SCREW PAN HEAD 6X20 8 220B0620 3
SCREW PAN HEAD 6X35 9 220B0635 4
"0" RING,16MM 10 670B2016 1
COLLAR 11 92027-207 1
PLUG,L.H ENG COVER 12 92067-017 1
COVER,ROTARY DISC 13 14019-055 1
SCREW PAN HEAD 6X20 14 220B0620 5
"O" RING,28MM 15 670B3028 1
PIN DOWEL 8X16 16 92042-017 1
"0" RING,8MM 17 92055-029 1
"O" RING,VALVE COVER 18 92055-057 1
"O" RING, NOZZLE 19 92055-080 1
NOZZLE 20 92062-012 1
COVER,CARBURETOR 21 14030-1013 1
COVER,CLUTCH 22 14032-1035 1
CAP,CARBURETOR 23 14038-039 1
CAP,CARBURETOR 24 14038-040 1
CAP CARB MOUNT HOLE 25 14039-001 1
GASKET,R.H ENG COVER 26 14046-029 1
GASKET,CARBURETOR COV 27 11009-1277 1
HOLDER,CARBRETOR CAP 28 14065-007 1
COVER,FUEL DRAIN 29 14076-006 1
HOLDER,CARBURETOR 30 16065-033 1
PLUG,OIL FILLER 31 16115-020 1
DRAIN,FUEL 32 16116-006 1
GROMMET,OVERFLOW 33 16136-009 1
UNAVAILABLE IN PRICE BOOK 34 214B0516A 4
SCREW PAN HEAD 6X12 35 220B0612 4
SCREW PAN HEAD 6X20 36 220B0620 9
SCREW PAN HEAD 6X30 37 220B0630 7
SCREW PAN HEAD 6X45 38 220B0645 2
"0" RING,20MM 39 670B2020 1
OIL SEAL SB16244 40 92049-002 1
