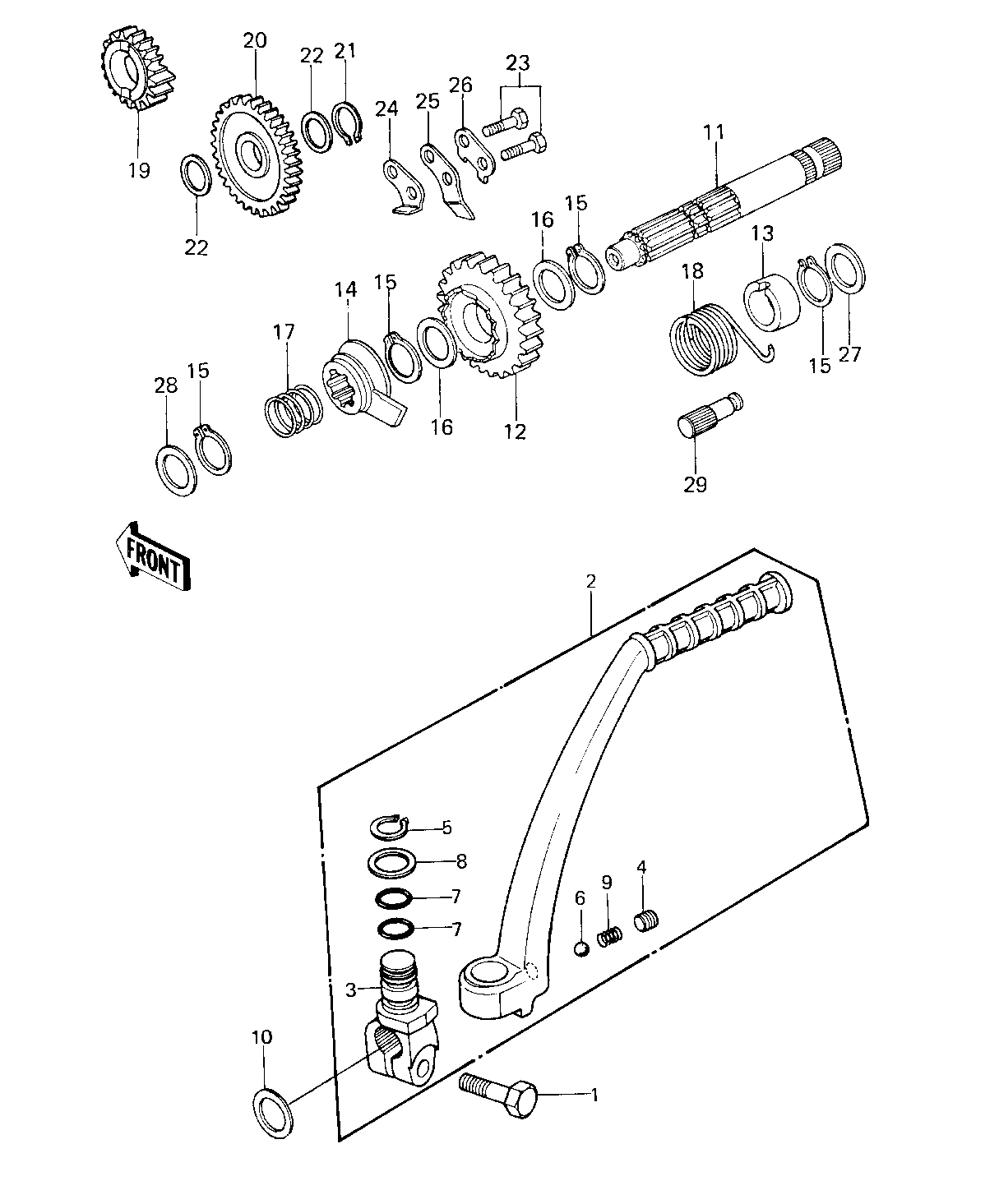

1980 KE125 - KICKSTARTER MECHANISM ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 1 | ||
| PEDAL ASSY,KICK | 2 | 13064-1027 | 1 | ||
| PEDAL ASSY,KICK | 2 | 13064-1027 | 1 | ||
| BOSS,KICK PEDAL | 3 | 13061-5001 | 1 | ||
| BOSS,KICK PEDAL | 3 | 13061-5001 | 1 | ||
| SCREW,8X8 | 4 | 290Q0808 | 1 | ||
| CIR CLIP | 5 | 482K0100 | 1 | ||
| BALL STEEL 1/4' | 6 | 600A0800 | 1 | ||
| "O" RING,12MM | 7 | 670B2012 | 2 | ||
| WASHER,PLAIN | 8 | 92022-1019 | 1 | ||
| SPRING KICK PEDAL | 9 | 92081-020 | 1 | ||
| WASHER,16.3X24X1 | 10 | 92022-1205 | 1 | ||
| SHAFT,KICKSTARTER | 11 | 13066-1012 | 1 | ||
| GEAR,KICKSTARTER | 12 | 13068-032 | 1 | ||
| GUIDE,KICKSPRING | 13 | 13070-008 | 1 | ||
| RATCHET,KL250-D2 | 14 | 13078-1052 | 1 | ||
| CIRCLIP 16MM | 15 | 480J1600 | 4 | ||
| WASHER,PLAIN | 16 | 92022-315 | 2 | ||
| SPRING,RATCHET | 17 | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 18 | 92082-005 | 1 | ||
| PINION,KICKSTARTER | 19 | 13075-010 | 1 | ||
| IDLE GEAR,KICKSTARTER | 20 | 13073-011 | 1 | ||
| CIRCLIP,13MM | 21 | 480J1300 | 1 | ||
| WASHER,PLAIN | 22 | 92022-267 | 2 | ||
| BOLT HEX HEAD 6X18 | 23 | 110N0618 | 2 | ||
| STOPPER,KICKSTARTER | 24 | 32085-1061 | 1 | ||
| GUIDE,KICKSTARTER | 25 | 13206-010 | 1 | ||
| WASHER,LOCK | 26 | 92024-054 | 1 | ||
| WASHER,PLAIN | 27 | 92022-268 | 1 | ||
| WASHER,PLAIN | 28 | 92022-269 | 1 | ||
| PIN | 29 | 92043-102 | 1 |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL ASSY,KICK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL ASSY,KICK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOSS,KICK PEDAL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOSS,KICK PEDAL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,8X8 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIR CLIP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING KICK PEDAL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.3X24X1 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,KICKSTARTER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,KICKSTARTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICKSPRING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,KL250-D2 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 16MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PINION,KICKSTARTER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IDLE GEAR,KICKSTARTER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,13MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 6X18 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICKSTARTER | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
