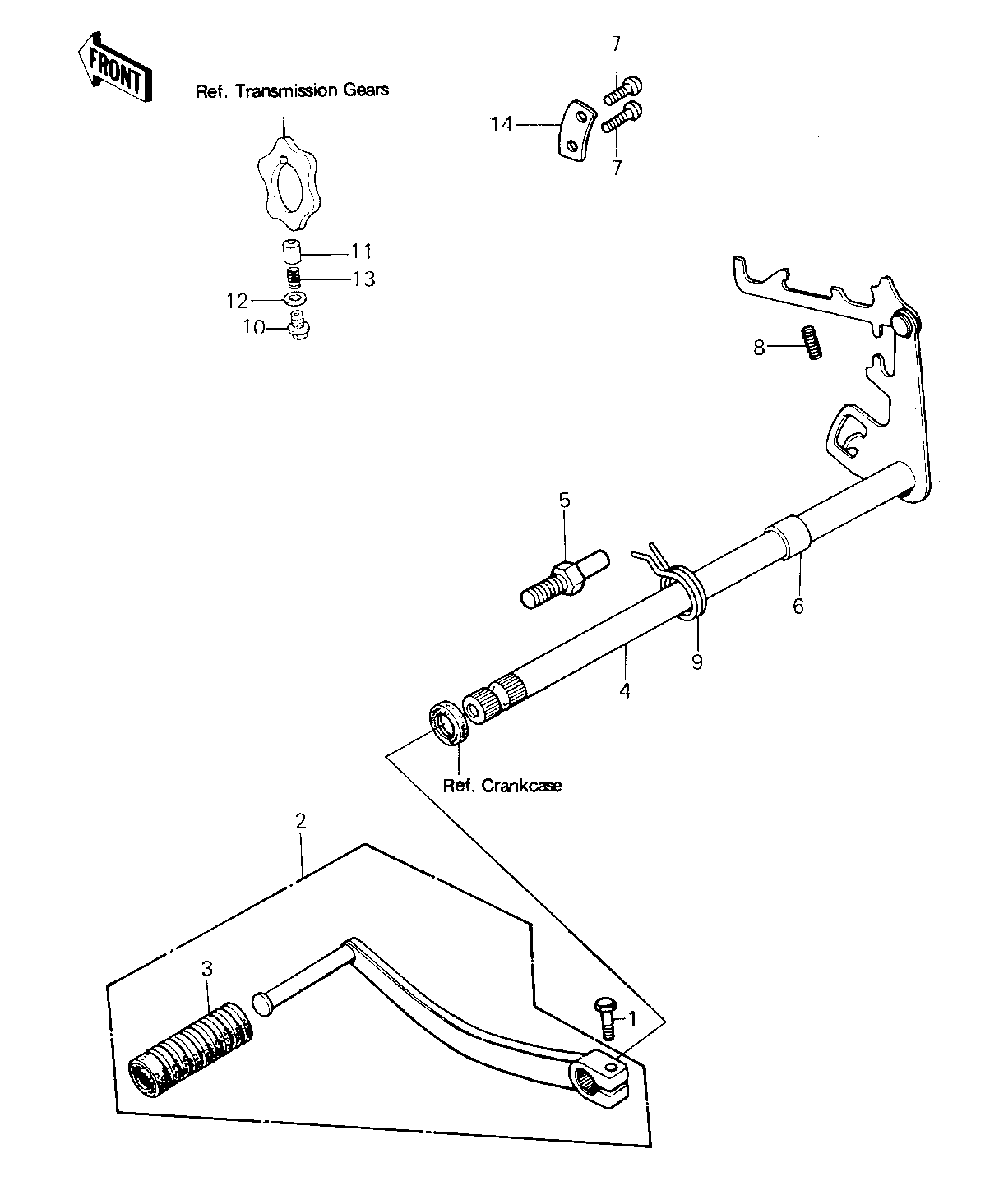

1980 KE125 - GEAR CHANGE MECHANISM ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 2 | 13242-1272 | 1 | ||
| RUBBER CHANGE PEDAL | 3 | 13157-004 | 1 | ||
| LEVER ASY,GEAR SHIFT | 4 | 13161-040 | 1 | ||
| BOLT,RETURN SPRING | 5 | 92001-1401 | 1 | ||
| COLLAR,GEAR CHNG LEV | 6 | 92027-205 | 1 | ||
| SCREW PAN HEAD 6X14 | 7 | 220B0614 | 2 | ||
| SPRING,KICK PAWL | 8 | 92081-124 | 1 | ||
| SPRING,TENTION | 9 | 92081-1129 | 1 | ||
| BOLT,10MM | 10 | 92001-131 | 1 | ||
| PIN-NEUTRAL POSITION | 11 | 92043-076 | 1 | ||
| GASKET | 12 | 92065-090 | 1 | ||
| SPRING | 13 | 92081-112 | 1 | ||
| PLATE CHNG DRUM PSTN | 14 | 13169-002 | 1 |
