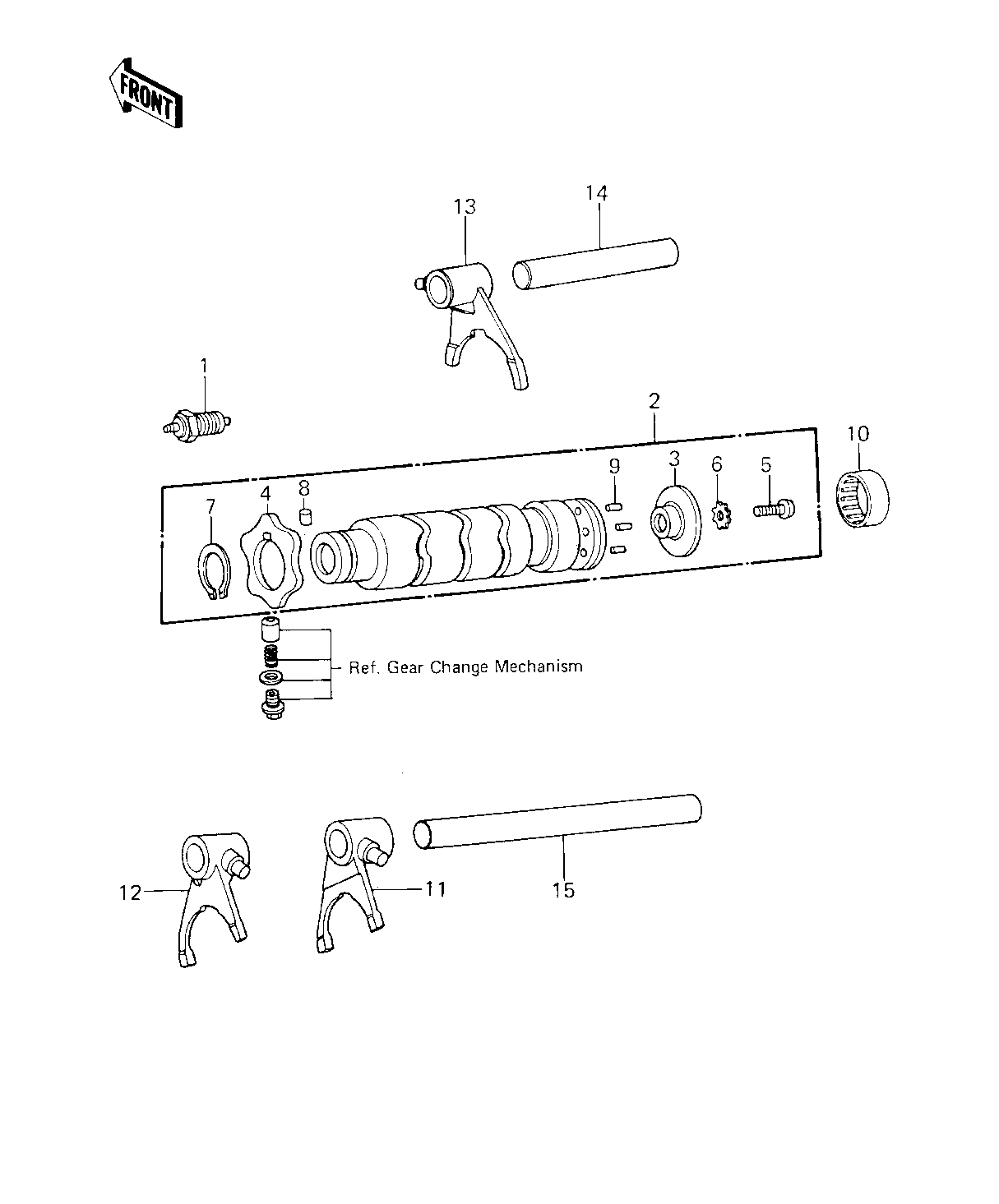

1980 KE125 - GEAR CHANGE DRUM & FORKS ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,NEUTRAL | 1 | 13151-019 | 1 | ||
| DRUM ASSY,GEAR SHIFT | 2 | 13239-018 | 1 | ||
| PLTE,SHIFT DRUM PIN | 3 | 13142-017 | 1 | ||
| CAM-CHANGE DRUM | 4 | 13145-1058 | 1 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 1 | ||
| WASHER LOCK 6MM | 6 | 464H0600 | 1 | ||
| CIRCLIP,30MM | 7 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 8 | 610A0406 | 1 | ||
| PIN,GEAR CHNGE DRUM | 9 | 92042-030 | 6 | ||
| BEARING,NEEDLE | 10 | 92046-043 | 1 | ||
| FORK,SELECTOR,LOW&4TH | 11 | 13140-058 | 1 | ||
| FORK,SELECTOR,2ND&3RD | 12 | 13140-059 | 1 | ||
| FORK,SELECTOR,5TH&TOP | 13 | 13140-060 | 1 | ||
| RODSHIFT,SHORT | 14 | 13209-014 | 1 | ||
| ROD-SHIFT,10X102 | 15 | 49047-1060 | 1 |
