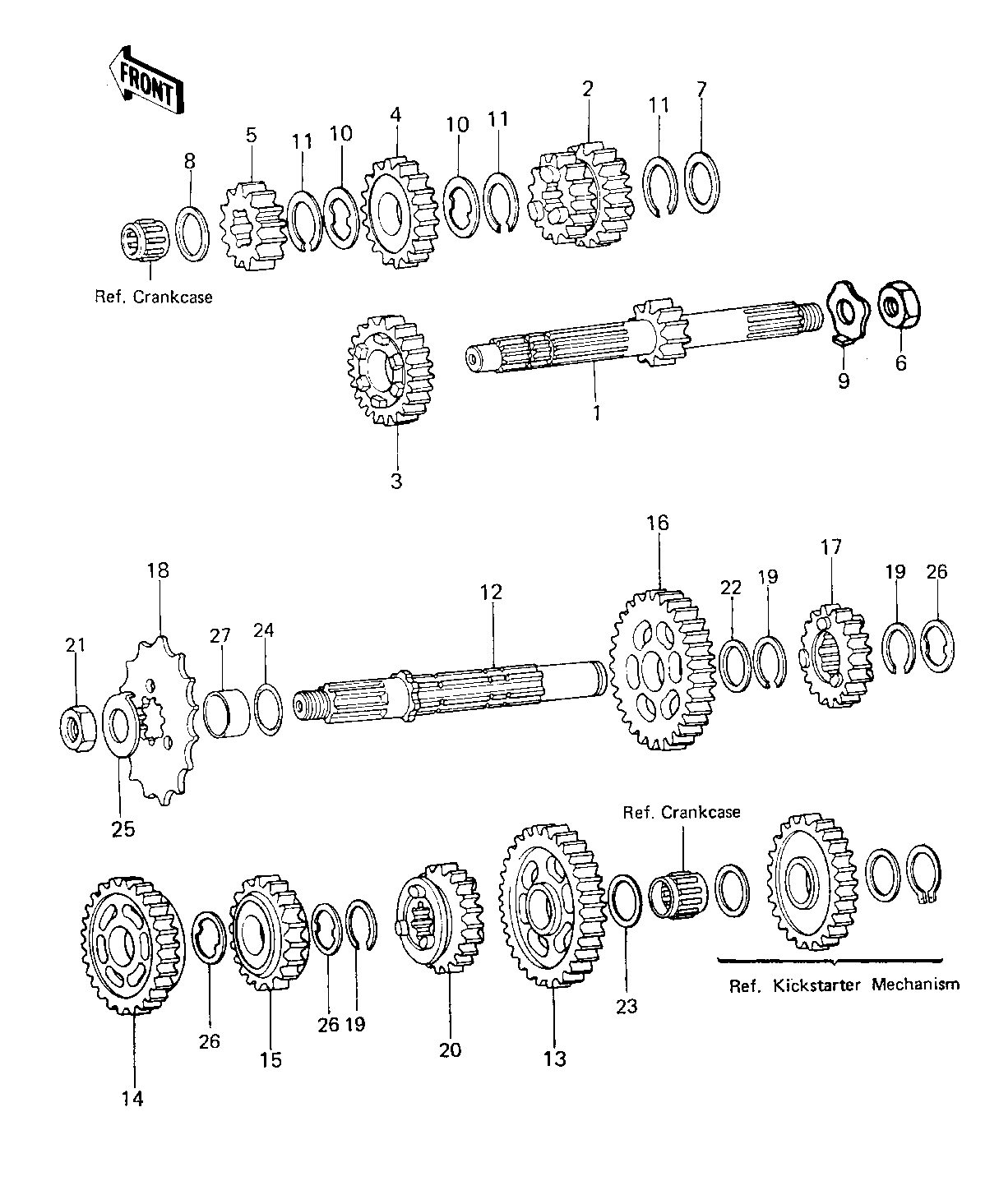

1980 KE125 - TRANSMISSION ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE | 1 | 13127-045 | 1 | ||
| 3RD&4TH GEAR,DRIVE SF | 2 | 13129-1010 | 1 | ||
| 5TH GEAR,DRIVE SHAFT | 3 | 13129-1018 | 1 | ||
| TOP GEAR,DRIVE,SHAFT | 4 | 13129-1021 | 1 | ||
| 2ND GEAR,DRIVE SHAFT | 5 | 13130-036 | 1 | ||
| NUT 14MM | 6 | 315B1400 | 1 | ||
| WASHER,PLAIN | 7 | 92022-271 | 1 | ||
| WASHER,PLAIN | 8 | 92022-272 | 1 | ||
| WASHER-LOCK,14MM | 9 | 92024-046 | 1 | ||
| WASHER,LOCK | 10 | 92024-055 | 2 | ||
| CIRCLIP | 11 | 92033-028 | 3 | ||
| SHAFT,OUTPUT | 12 | 13128-040 | 1 | ||
| LOW GEAR,OUTPUT SHAFT | 13 | 13129-050 | 1 | ||
| 3RD GEAR,OUTPUT SHAFT | 14 | 13129-1011 | 1 | ||
| 4TH GEAR,OUTPUT SHAFT | 15 | 13129-1015 | 1 | ||
| 2ND GEAR,OUTPUT SHAFT | 16 | 13131-043 | 1 | ||
| TOP GEAR,OUTPUT SHAFT | 17 | 13137-043 | 1 | ||
| SPROCKET-OUTPUT,14T | 18 | 13144-1058 | 1 | ||
| ENGINE SPROCKET,13T | 18 | 13144-053 | (1 | ||
| ENGINE SPROCKET,1ST | 18 | 13144-054 | (1 | ||
| CIRCLIP | 19 | 92033-028 | 3 | ||
| 5TH GEAR,OUTPUT SHAFT | 20 | 13248-003 | 1 | ||
| NUT 14MM | 21 | 315B1400 | 1 | ||
| WASHER,PLAIN | 22 | 92022-271 | 1 | ||
| WASHER,PLAIN | 23 | 92022-273 | 1 | ||
| "0" RING | 24 | 92055-022 | 1 | ||
| WASHER, | 25 | 92024-052 | 1 | ||
| WASHER,LOCK | 26 | 92024-055 | 3 | ||
| COLLAR,ENG SPROCKET | 27 | 92027-1077 | 1 |
