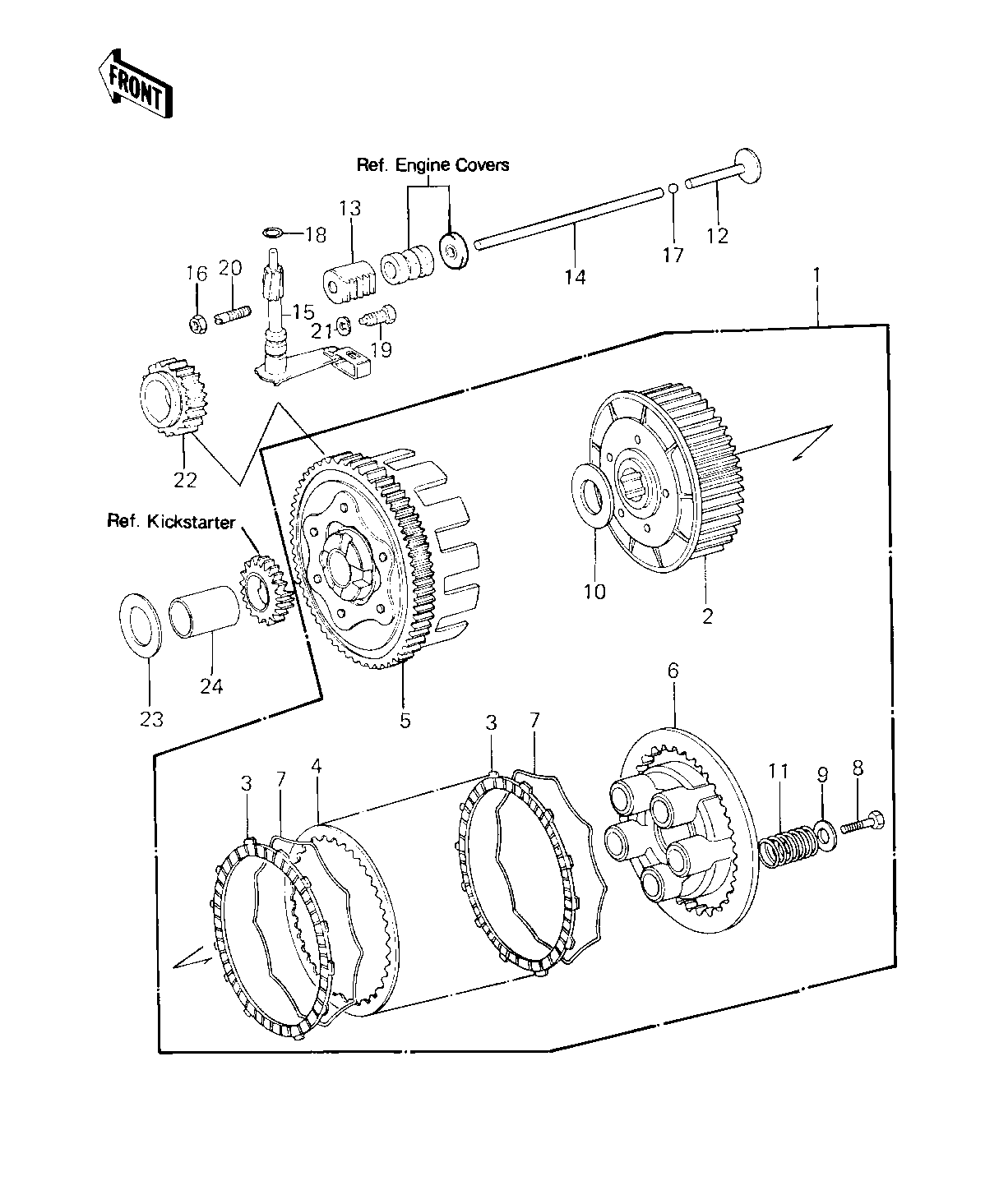

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 1 | 13081-1053 | 1 | KE125-A7 | |
| CLUTCH-ASSY | 2 | 13081-1053 | 1 | KE125-A8 | |
| HUB,CLUTCH | 2 | 13087-038 | 1 | ||
| PLATE-FRICTION | 3 | 13088-1015 | 5 | ||
| PLATE CLUTCH STEEL | 4 | 13089-003 | 4 | ||
| HOUSING CLUTCH | 5 | 13095-1034 | 1 | KE125-A7 | |
| HOUSING CLUTCH | 5 | 13095-1034 | 1 | KE125-A8 | |
| PLATE-CLUTCH SPRING | 6 | 13187-004 | 1 | ||
| RING-CLUTCH STEEL | 7 | 13229-002 | 5 | ||
| BOLT,5X18 | 8 | 92003-078 | 5 | ||
| WASHER-PLAIN,5MM | 9 | 92022-167 | 5 | ||
| WASHER,PLAIN | 10 | 92022-270 | 1 | ||
| SPRING,CLUTCH | 11 | 92081-123 | 5 | ||
| PUSHER-CLTCH SPRG PLT | 12 | 13116-016 | 1 | ||
| ROD,CLTCH RELESE PUSH | 13 | 13116-026 | 1 | ||
| ROD,CLUTCH PUSH,LONG | 14 | 13116-027 | 1 | ||
| SHAFT ASY,CLTCH RELES | 15 | 13234-003 | 1 | ||
| NUT 6MM | 16 | 311B0600 | 1 | ||
| BALL STEEL 7/32' | 17 | 600A0700 | 1 | ||
| "0" RING, 10MM | 18 | 670B2010 | 1 | ||
| BOLT,CLUTCH RELEASE | 19 | 92003-130 | 1 | ||
| SCREW,SLOTTED,6X26 | 20 | 92014-015 | 1 | ||
| WASHER,LOCK | 21 | 92031-009 | 1 | ||
| GEAR,PRIMARY 22T | 22 | 13097-1040 | 1 | KE125-A7 | |
| GEAR,PRIMARY 22T | 22 | 13097-1040 | 1 | KE125-A8 | |
| WASHER,PLAIN | 23 | 92022-270 | 1 | ||
| BUSHING,CLUTCH | 24 | 92028-138 | 1 |
