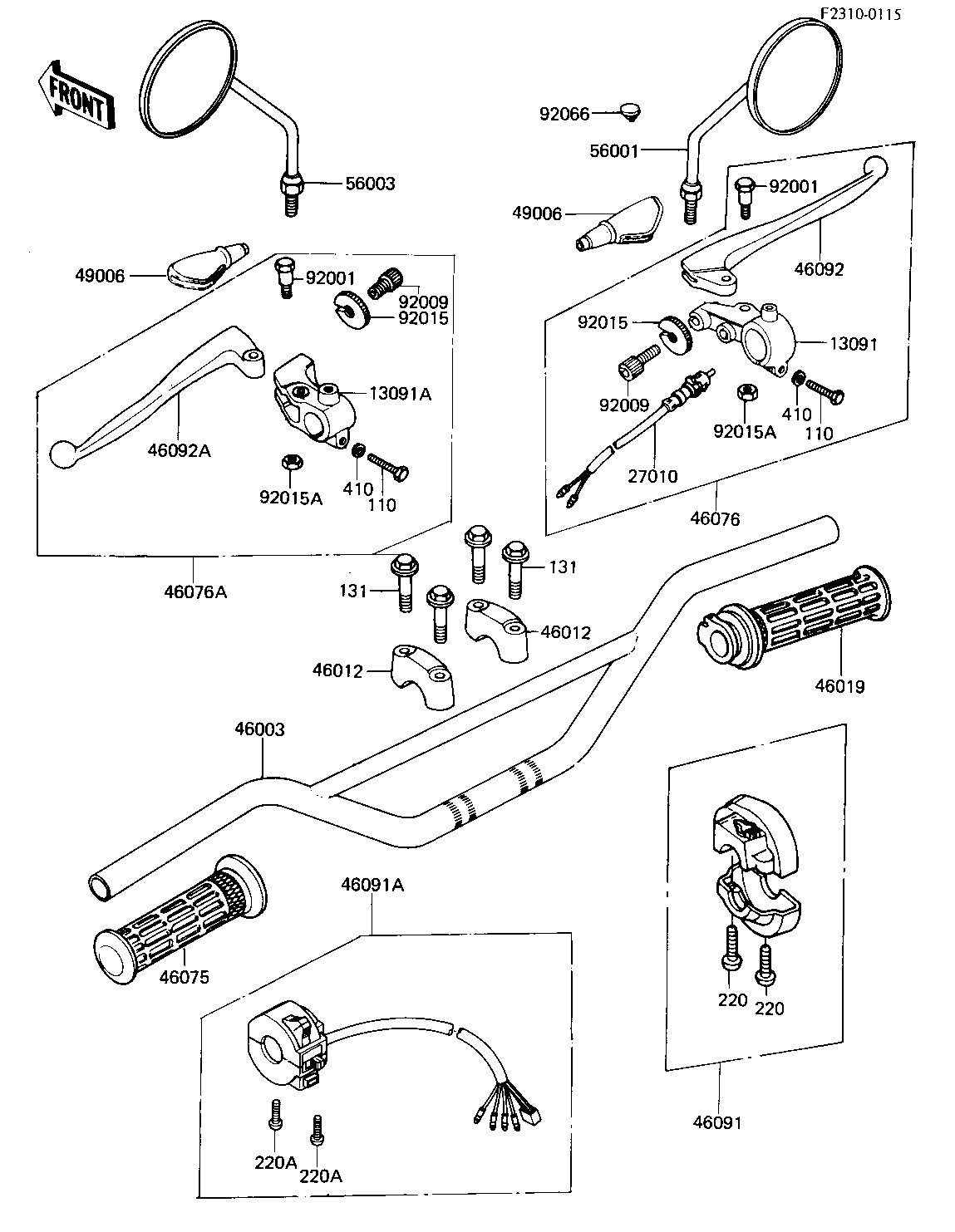

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-FR BRK LEV,BLK | 13091 | 46060-009-21 | 1 | ||
| HOLDER-CLUTCH LEV,BLK | 13091A | 46094-011-21 | 1 | ||
| SWITCH-FR. BRAKE LAMP | 27010 | 27021-004 | 1 | ||
| HANDLEBAR | 46003 | 46003-1038 | 1 | ||
| HOLDER,HANDLEBAR | 46012 | 46012-014 | 2 | ||
| GRIP ASSY,THROTTLE | 46019 | 46019-1005 | 1 | ||
| GRIP,L.H. | 46075 | 46075-1004 | 1 | ||
| LEVER ASSY,FRNT BRAKE | 46076 | 46021-031 | 1 | ||
| LEVER ASSY,CLUTCH | 46076A | 46076-044 | 1 | ||
| HOUSING ASSY,CONT,R.H | 46091 | 46091-1041 | 1 | ||
| HOUSING ASSY,CONT,LH | 46091A | 46091-1166 | 1 | ||
| LEVER FRONT BRAKE | 46092 | 46058-004 | 1 | ||
| LEVER-CLUTCH | 46092A | 46092-015 | 1 | ||
| BOOTS,LEVER HOLDER | 49006 | 49006-1017 | 2 | ||
| REAR VIEW MIRROR,R.H | 56001 | 56002-020 | 1 | US | |
| REAR VIEW MIRROR,L.H | 56003 | 56003-009 | 1 | ||
| BOLT,HEX HEAD,5X22 | 92001 | 92007-046 | 2 | ||
| SCREW CABLE ADJUST | 92009 | 46055-003 | 2 | ||
| NUT-LOCK | 92015 | 46056-005 | 2 | ||
| NUT-LOCK,5MM | 92015A | 92019-014 | 2 | ||
| PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
| BOLT HEX HEAD 6X25 | 110 | 110N0625 | 2 | ||
| BOLT,FLANGED,8X35 | 131 | 130G0835 | 4 | ||
| SCREW PAN HEAD 5X18 | 220 | 220B0518 | 2 | ||
| SCREW PAN HEAD 5X22 | 220A | 220B0522 | 2 | ||
| WASHER,PLAIN,6MM | 410 | 410D0600 | 2 |
