Parts Diagrams |

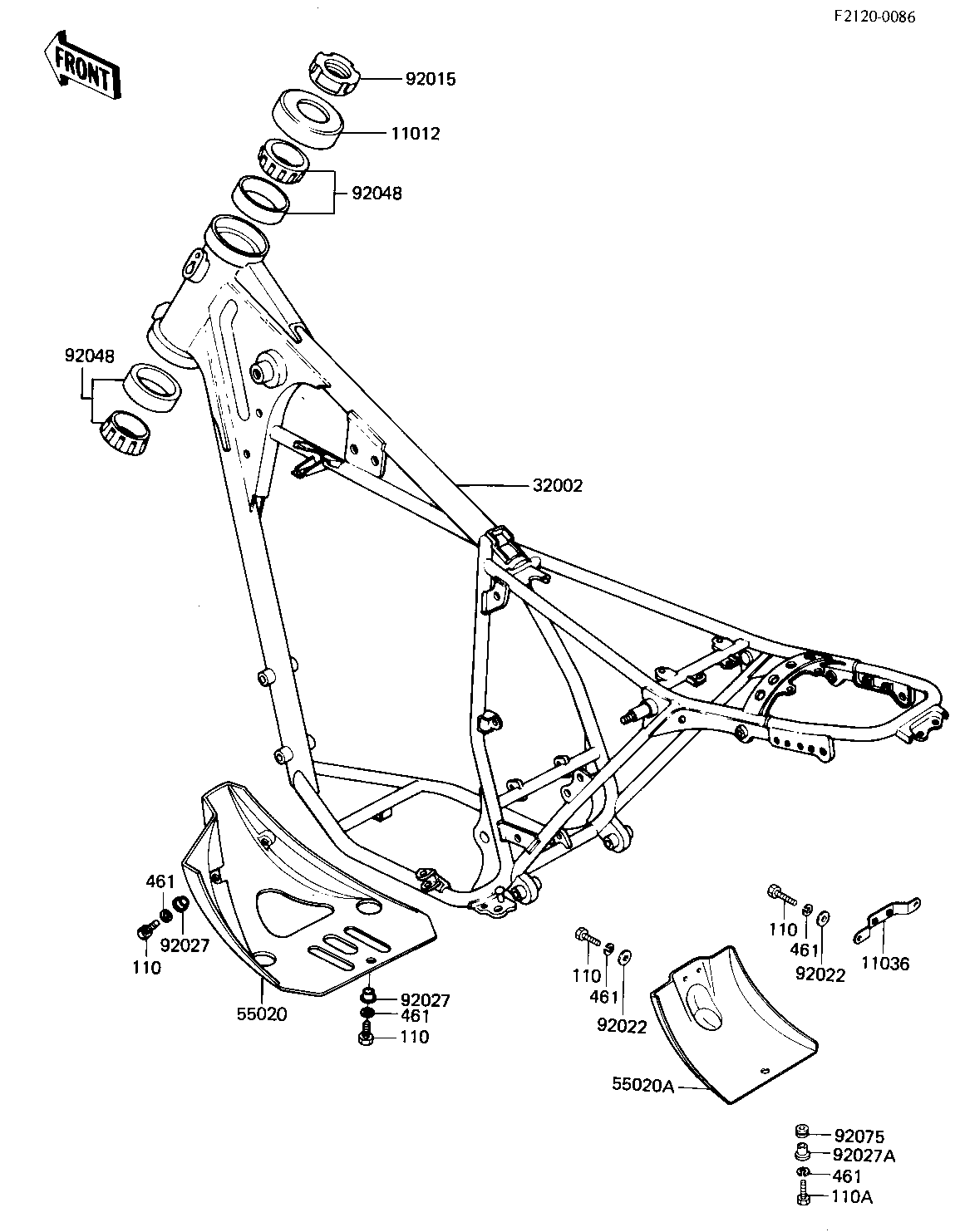

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 46098-017 | 1 | ||
| BRACKET-A | 11036 | 11036-1073 | 1 | (OPTION) | |
| FRAME | 32002 | 32002-1074 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-1023 | 1 | ||
| GUARD,ENGINE | 55020A | 55020-1057 | 1 | (OPTION) | |
| NUT | 92015 | 92015-1546 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 4 | (OPTION) | |
| COLLAR | 92027 | 92027-122 | 3 | ||
| COLLAR | 92027A | 92027-153 | 1 | (OPTION) | |
| BEARING,STEERING STEM | 92048 | 92047-017 | 2 | ||
| DAMPER RUBBER,RR FEND | 92075 | 92075-121 | 1 | (OPTION) | |
| BOLT-UPSET 6X14 | 110 | 112B0614 | 7 | ||
| BOLT-UPSET,6X20 | 110A | 112G0620 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 8 |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-A | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| FRAME | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BEARING,STEERING STEM | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BOLT-UPSET 6X14 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
