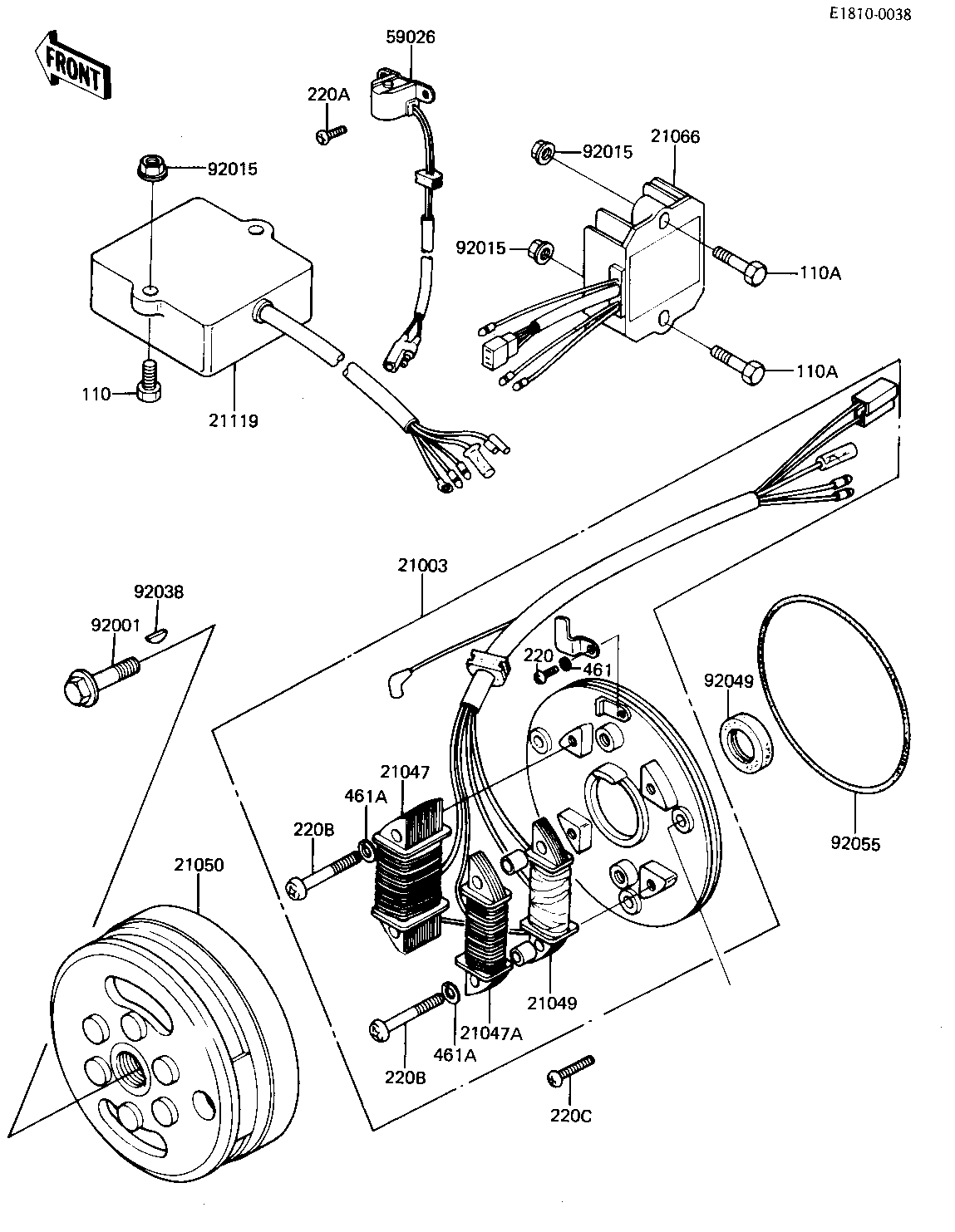

1982 KLR250 - IGNITION/GENERATOR/REGULATOR
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STATOR ASSY,MAGNETO | 21003 | 21003-1034 | 1 | ||
| COIL,LIGHTING"A" | 21047 | 21047-1011 | 1 | ||
| COIL,LIGHTING"B" | 21047A | 21047-1012 | 1 | ||
| COIL,EXCITING | 21049 | 21049-1008 | 1 | ||
| FLYWHEEL,MAGNETO | 21050 | 21050-1017 | 1 | ||
| REGULATOR,VOLTAGE | 21066 | 21066-1010 | 1 | ||
| IGNITER | 21119 | 21119-1006 | 1 | ||
| COIL,PULSING | 59026 | 59026-1005 | 1 | ||
| BOLT,10X40 | 92001 | 92001-1201 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 4 | ||
| WOODRUFF KEY | 92038 | 92038-001 | 1 | ||
| OIL SEAL,S-27408-LHS | 92049 | 92049-1004 | 1 | ||
| "O" RING,MAGNETO BASE | 92055 | 92055-1006 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 2 | ||
| BOLT-UPSET | 110A | 112G0625 | 2 | ||
| SCREW PAN HEAD 4X6 | 220 | 220B0406 | 1 | ||
| SCREW PAN HEAD 5X8 | 220A | 220B0508 | 2 | ||
| SCREW-PAN-CROS | 220B | 220B0535 | 4 | ||
| SCREW PAN HEAD 6X25 | 220C | 220B0625 | 3 | ||
| WASHER SPRING 4MM | 461 | 461F0400 | 1 | ||
| WASHER SPRING 5MM | 461A | 461F0500 | 4 |
