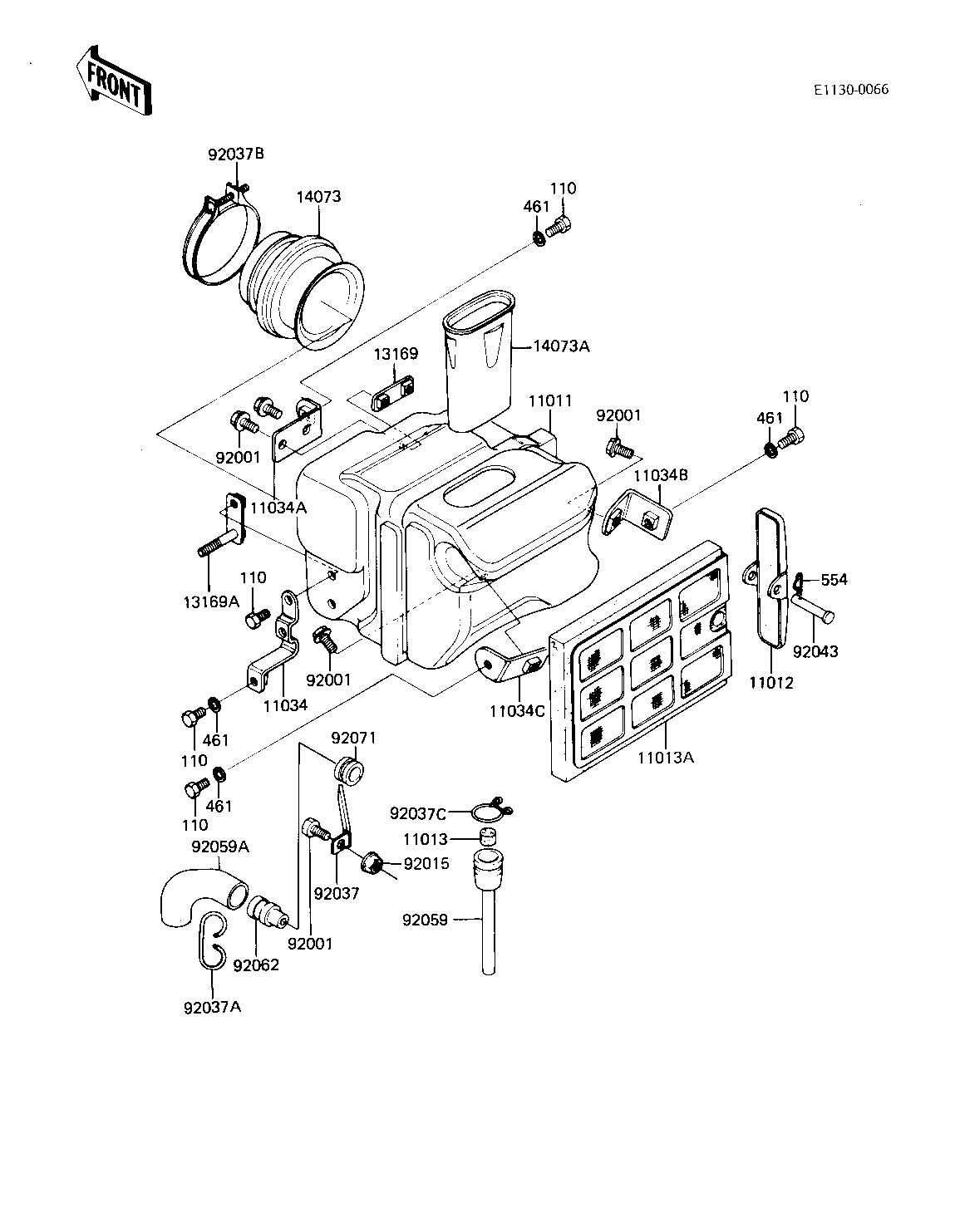

1982 KLR250 - AIR CLEANER (F/NO.044976-)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE,AIR FILTER | 11011 | 11011-1109 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1236 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-060 | 1 | ||
| ELEMENT,AIR CLNR | 11013A | 11013-1018 | 1 | ||
| BRACKET,AIR FILTER | 11034 | 11034-1704 | 1 | ||
| BRACKET,AIR FILTER | 11034A | 11034-1705 | 1 | ||
| BRACKET,AIR FILTER | 11034B | 11034-1727 | 1 | ||
| BRACKET,AIR FILTER | 11034C | 11034-1728 | 1 | ||
| PLATE,AIR FILTER | 13169 | 13169-1234 | 1 | ||
| PLATE,AIR FILTER | 13169A | 13169-1606 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1025 | 1 | ||
| DUCT,AIR FILTER CASE | 14073A | 14073-1041 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1460 | 4 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| CLAMP,MAGNETO LEAD | 92037A | 92037-1209 | 1 | ||
| CLAMP | 92037B | 92037-171 | 1 | ||
| CLAMP,BREATHER TUBE | 92037C | 92037-213 | 1 | ||
| PIN | 92043 | 92043-1113 | 1 | ||
| TUBE,AIR CLNR DRAIN | 92059 | 92059-1020 | 1 | ||
| HOSE,BREATHER | 92059A | 92059-1158 | 1 | ||
| NOZZLE,BREATHER TUBE | 92062 | 92062-1010 | 1 | ||
| GROMMET | 92071 | 92071-1010 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 6 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 | ||
| PIN,SNAP | 554 | 554A0600 | 1 |
| CASE,AIR FILTER | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR FILTER | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR FILTER | |
| REF # | 11034A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR FILTER | |
| REF # | 11034B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR FILTER | |
| REF # | 11034C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,AIR FILTER | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,AIR FILTER | |
| REF # | 13169A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER CASE | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MAGNETO LEAD | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BREATHER TUBE | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIR CLNR DRAIN | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,BREATHER | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,BREATHER TUBE | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,SNAP | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
