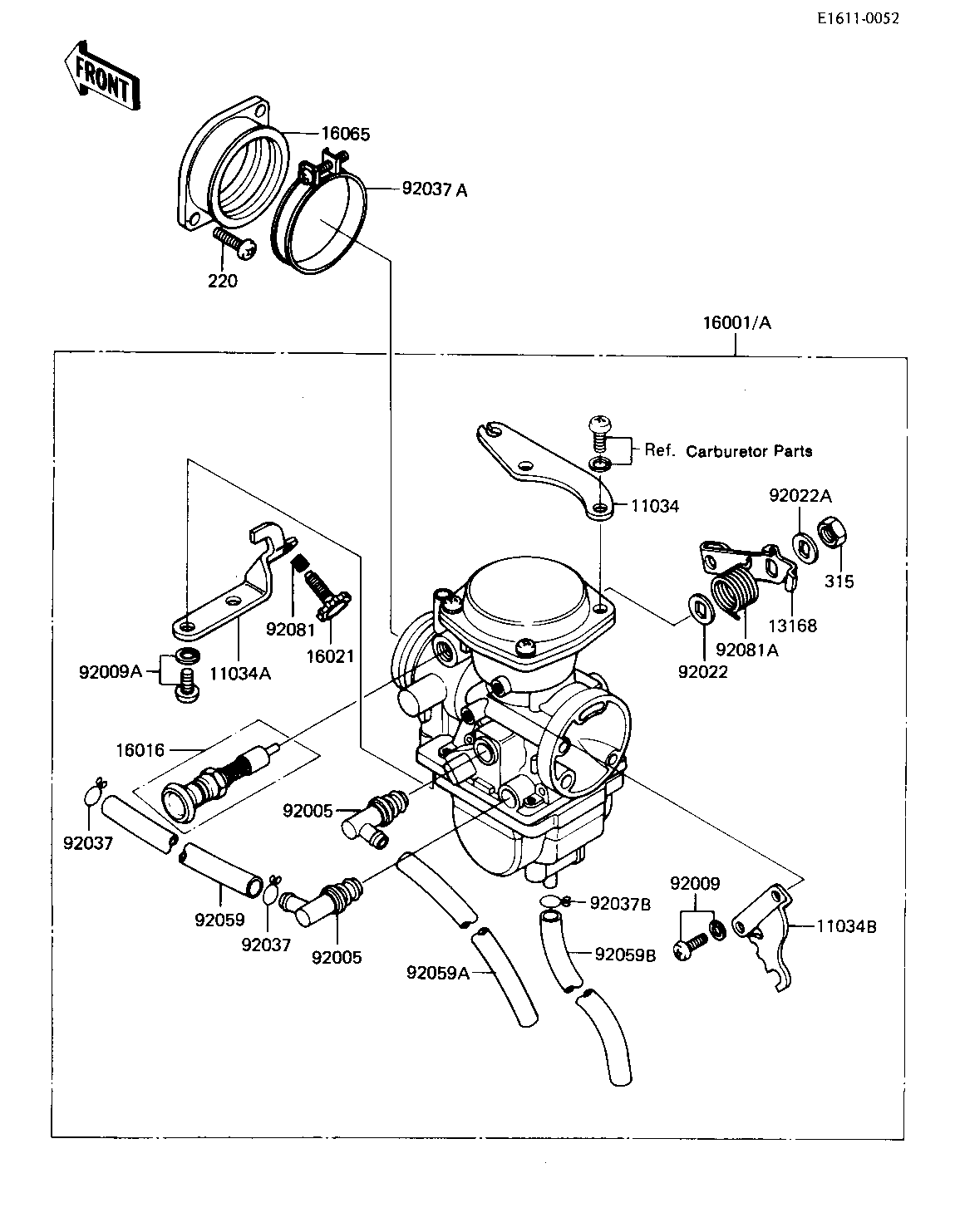

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,THROTTLE CABL | 11034 | 11034-1747 | 1 | ||
| BRACKET,STOP SCREW | 11034A | 11034-1748 | 1 | ||
| BRACKET,FITTING | 11034B | 11034-1749 | 1 | ||
| LEVER,THROTTLE | 13168 | 13168-1063 | 1 | ||
| PLUNGER ASSY,STARTER | 16016 | 16016-1016 | 1 | ||
| SCREW,THROTTLE STOP | 16021 | 16021-1026 | 1 | ||
| HOLDER,CARBURETOR | 16065 | 16065-1018 | 1 | ||
| FITTING,CARBURETOR | 92005 | 92005-1023 | 2 | ||
| SCREW-CLAMP | 92009 | 16033-014 | 2 | ||
| SCREW | 92009A | 16033-026 | 2 | ||
| WASHER,PLAIN | 92022 | 92022-1148 | 1 | ||
| WASHER,LOCK | 92022A | 92022-1191 | 1 | ||
| CLAMP-PIPE | 92037 | 92037-072 | 2 | ||
| CLAMP,57M/M | 92037A | 92037-1006 | 1 | ||
| CLAMP,BREATHER HOSE | 92037B | 92037-174 | 1 | ||
| TUBE,5.3X10.5X140 | 92059 | 92059-1019 | 1 | ||
| HOSE,AIR VENT,5X8X340 | 92059A | 92059-1128 | 1 | ||
| HOSE,OVERFLOW,5X270L | 92059B | 92059-1475 | 1 | ||
| SPRING,THROTTLE ADJST | 92081 | 16022-010 | 1 | ||
| SPRING,THROTTLE RETRN | 92081A | 92081-1231 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
| NUT,8 M/M | 315 | 315G0800 | 1 |
| BRACKET,THROTTLE CABL | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,STOP SCREW | |
| REF # | 11034A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FITTING | |
| REF # | 11034B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,THROTTLE | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUNGER ASSY,STARTER | |
| REF # | 16016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CARBURETOR | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,CARBURETOR | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CLAMP | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,57M/M | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BREATHER HOSE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.3X10.5X140 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,AIR VENT,5X8X340 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,OVERFLOW,5X270L | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJST | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE RETRN | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8 M/M | |
| REF # | 315 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
