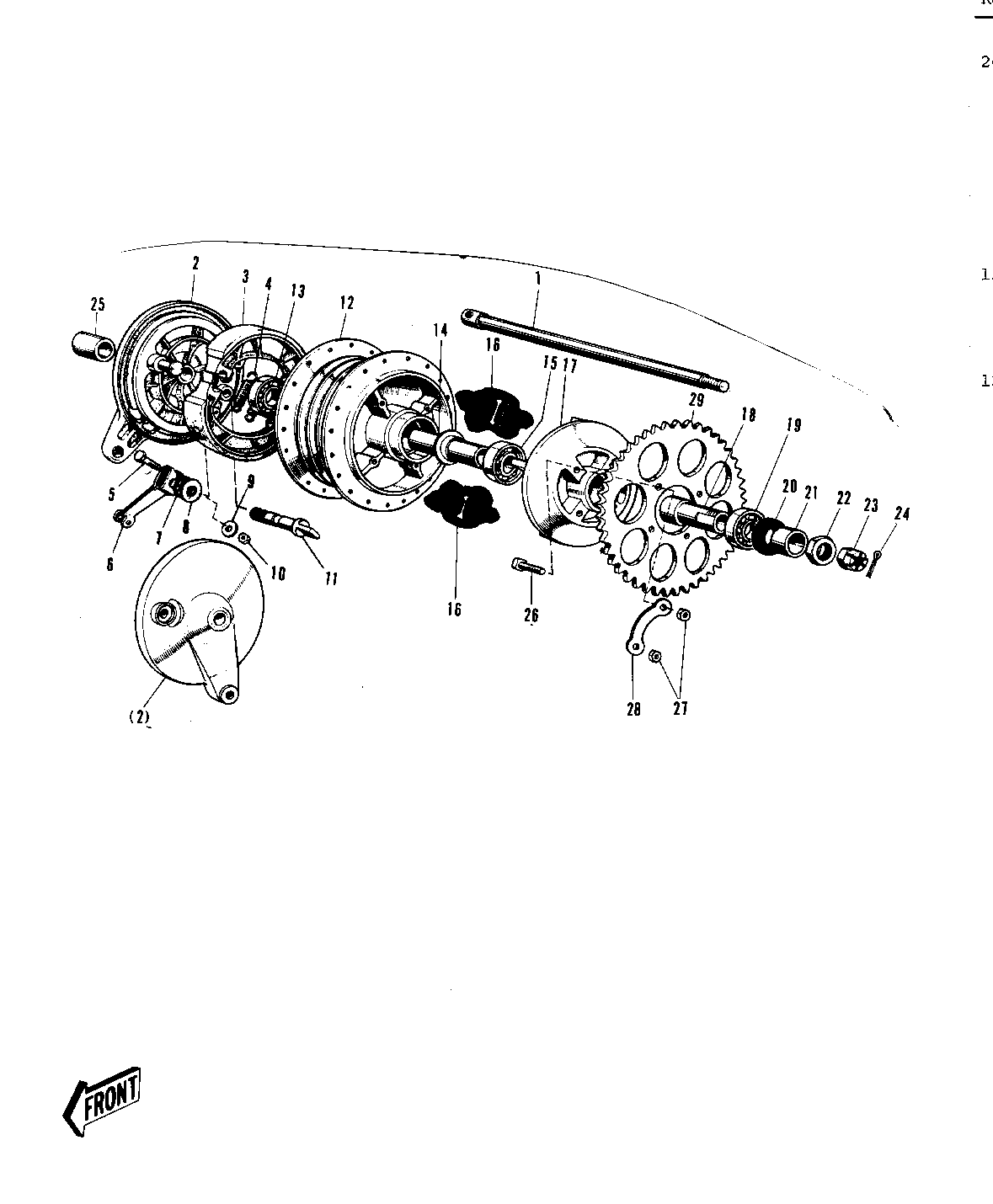

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE REAR | 1 | 42031-022 | |||
| PANEL-ASY,RR BRK | 2~11 | 42006-015 | |||
| SHOE,BRAKE | 3 | 41048-1007 | |||
| SPRING,BRAKE SHOE | 4 | 92081-1766 | |||
| BOLT-UPSET | 5 | 112G0630 | |||
| LEVER REAR BRAKE CAM | 6 | 42029-012 | |||
| "0" RING,11MM | 7 | 92055-004 | |||
| WASHER BRAKE CAM SHT | 8 | 41052-001 | |||
| WASHER PLAIN 6MM | 9 | 410B0600 | |||
| NUT 6MM | 10 | 311B0600 | |||
| CAM SHAFT-FRONT BRAKE | 11 | 41050-018 | |||
| DRUM ASSY REAR BRAKE | 12~16 | 42005-016 | |||
| BEARING BALL #6302Z | 13 | 601B6302Z | |||
| SPACER RR HUB BEARING | 14 | 42010-006 | |||
| BEARING BALL #6202 | 15 | 601B6202 | |||
| DAMPER REAR HUB SHOCK | 16 | 42014-015 | |||
| COUPLING ASSY RR HUB | 12~22 | 42033-001 | |||
| SLEEVE COUPLING | 18 | 42036-003 | |||
| BEARING BALL #6004 | 19 | 601B6004 | |||
| OIL SEAL RR BRK DRUM | 20 | 92050-009 | |||
| COLLAR OIL SEAL | 21 | 42037-004 | |||
| NUT 20MM | 22 | 42045-009 | |||
| NUT CASTLE 14MM | 23 | 321B1400 | |||
| PIN COTTER 3.0X30 | 24 | 550D3030 | |||
| COLLAR REAR HUB R.H | 25 | 42032-013 | |||
| BOLT REAR SPROCKET | 26 | 92001-021 | |||
| NUT,8MM | 27 | 311B0800 | |||
| WASHER RR SPRCKT LOCK | 28 | 92088-004 | |||
| REAR SPROCKET 50T | 29 | 42041-065 | S.T.D. | ||
| REAR SPROCKET 54T | 29 | 42041-052 | OPTION | ||
| REAR SPROCKET 52T | 29 | 42041-066 | OPTION |
