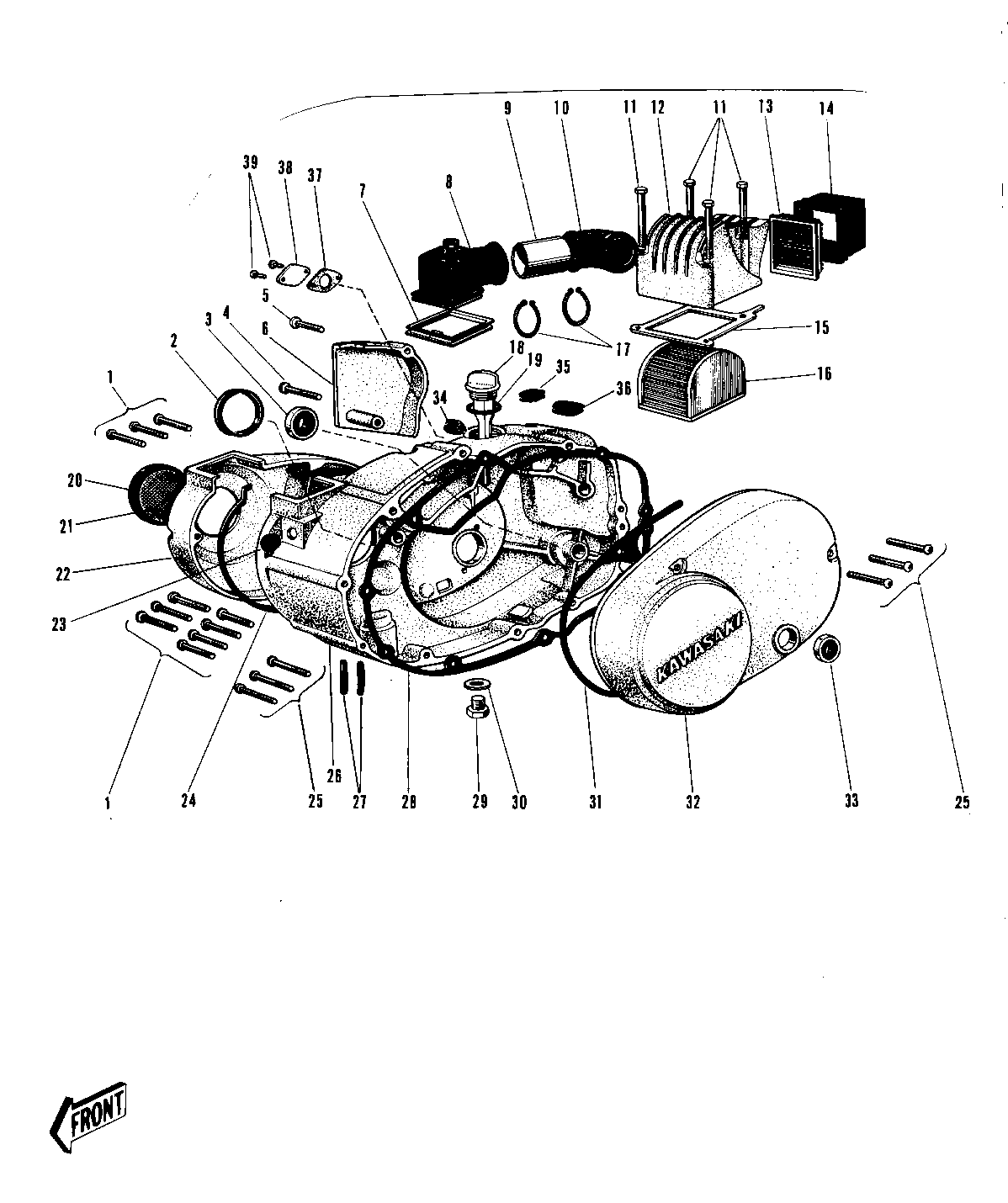

1971 Centurion - ENGINE COVERS/AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630
GROMMET 2 14038-020
OIL SEAL TB14257 3 653B142507
SCREW PAN HEAD 6X35 4 220B0635
SCREW PAN HEAD 6X25 5 220B0625
COVER OIL PUMP 6 14030-006
HOLDER INLET PIPE 7 11033-002
INLET PIPE 8 11015-018
INLET PIPE 9 11015-017
INLET PIPE 10 11015-016
BOLT HEX HEAD 6X75 11 110B0675
COVER AIR CLEANER 12 14042-005
SCREEN AIR CLEANER 13 14037-003
AIR DUCT 14 14073-002
GASKET AIR CLEAN COV 15 14059-001
ELEMENT,AIR CLNR 16 11013-018
SPRING COIL 17 92081-047
FILLER,OIL 18 16115-018
"0" RING,OIL FIL PLUG 19 92055-026
CAP AIR FILTER RUBBER 20 14060-001
FILTER AIR 21 14063-001
COVER CARBURETOR 22 14030-016
CAP CARB MOUNT HOLE 23 14039-001
GASKET CARB COVER 24 14048-001
SCREW PAN HEAD 6X45 25 220B0645
UNAVAILABLE IN PRICE BOOK 26 14032-044
COVER R.H ENGINE 27 14032-050 NOT REQ'D
GUIDE FUEL OVERFLOW 27 16136-002 USE FOR
GASKET,CLUTCH COVER 28 11060-1198
PLUG OIL DRAIN 29 92067-001
GASKET CHECK VALVE 30 92065-058
GASKET L.H ENGINE COV 31 14045-007
COVER,L.H ENG,SILVER 32 14031-078-75
OIL SEAL SB12205 33 92049-004
GROMMET OIL PIPE 34 16135-006
GROMMET 35 16135-007
GROMMET 36 16135-008
GASKET,OIL PUMP 37 11060-1160
PLUG-OIL PUMP-HOLE 38 92084-004
SCREW PAN HEAD 5X8 39 220B0508
