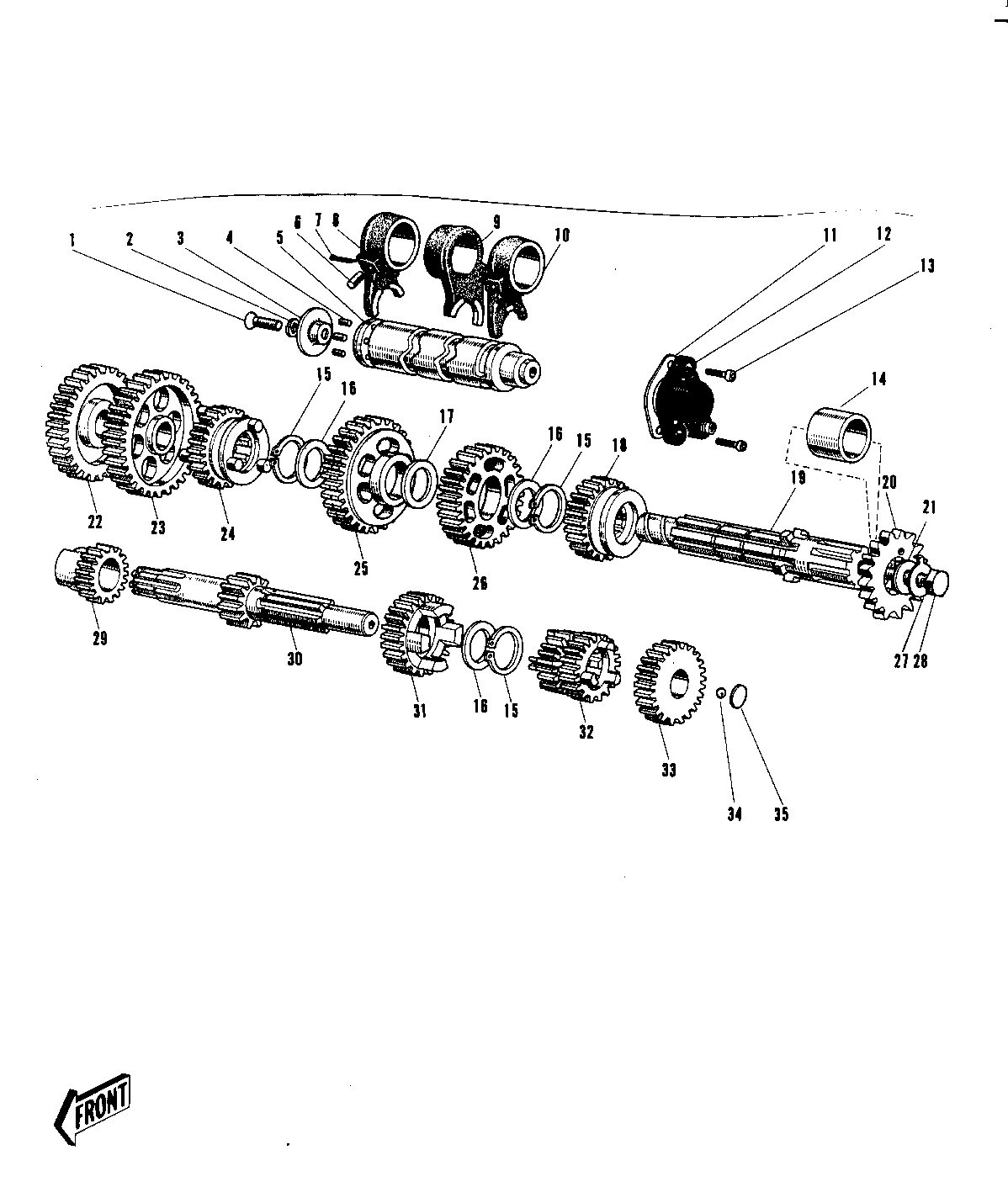

1971 Centurion - TRANSMISSION/CHANGE DRUM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X12 1 220B0612
WASHER LOCK 6MM 2 464H0600
PLATE CHANGE DRUM PIN 3 13142-008
PIN GEAR CHANGE DRUM 4 92042-014
GEAR CHANGE DRUM 5 13141-010
PIN SELECT FORK GUIDE 6 92043-005
PIN COTTER 3.0X20 7 550D3020
FORK SELECTOR LOW-2ND 8 13140-010
FORK SELECTOR 4TH-TOP 9 13140-017
FORK SELECTOR 3RD 10 13140-009
GASKET NEUTRAL SWITCH 11 13146-002
SWITCH,NEUTRAL 12 13151-1001
SCREW PAN HEAD 6X16 13 220B0616
SPACER ENG SPROCKET 14 92027-009
CIRCLIP 15 92033-014
WASHER THRUST 16 92022-118 T=1.2 M/M
WASHER THRUST 17 92022-146 T=1.6 M/M
UNAVAILABLE IN PRICE BOOK 18 13137-003 23 TEETH
SHAFT OUTPUT 19 13128-021
SPROCKET-OUTPUT,14T 20 13144-1058 S.T.D.
ENG SPROCKET ASY,13T 20 13249-001 OPTION
ENG SPROCKET,ASY,15T 20 13249-003 OPTION
ENGINE SPROCKET 16T 20 13144-040 OPTION
WASHER ENG SPROCKET 21 92022-130
IDLE GEAR 22 13073-004 30 TEETH
LOW GEAR OUTPUT SHAFT 23 13129-025 33 TEETH
GEAR-TRANSMISSION SPU 24 13129-1708 24 TEETH
2ND GEAR OUTPUT SHAFT 25 13131-021 29 TEETH
3RD GEAR OUTPUT SHAFT 26 13133-005 26 TEETH
WASHER LOCK 8MM 27 92030-007
BOLT-SMALL-UPSET,8X16 28 115G0816
PINION KICKSTARTER 29 13075-004 16 TEETH
UNAVAILABLE IN PRICE BOOK 30 13127-021 14 TEETH
4TH GEAR,DRIVE 31 13129-1053 22 TEETH
2ND-3RD GEAR DRV SHFT 32 13130-019 18/20 TEETH
GEAR,INPUT TOP,24T 33 13129-1927 24 TEETH
BALL STEEL 7/32' 34 600A0700
WASHER THRUST 35 92022-115
