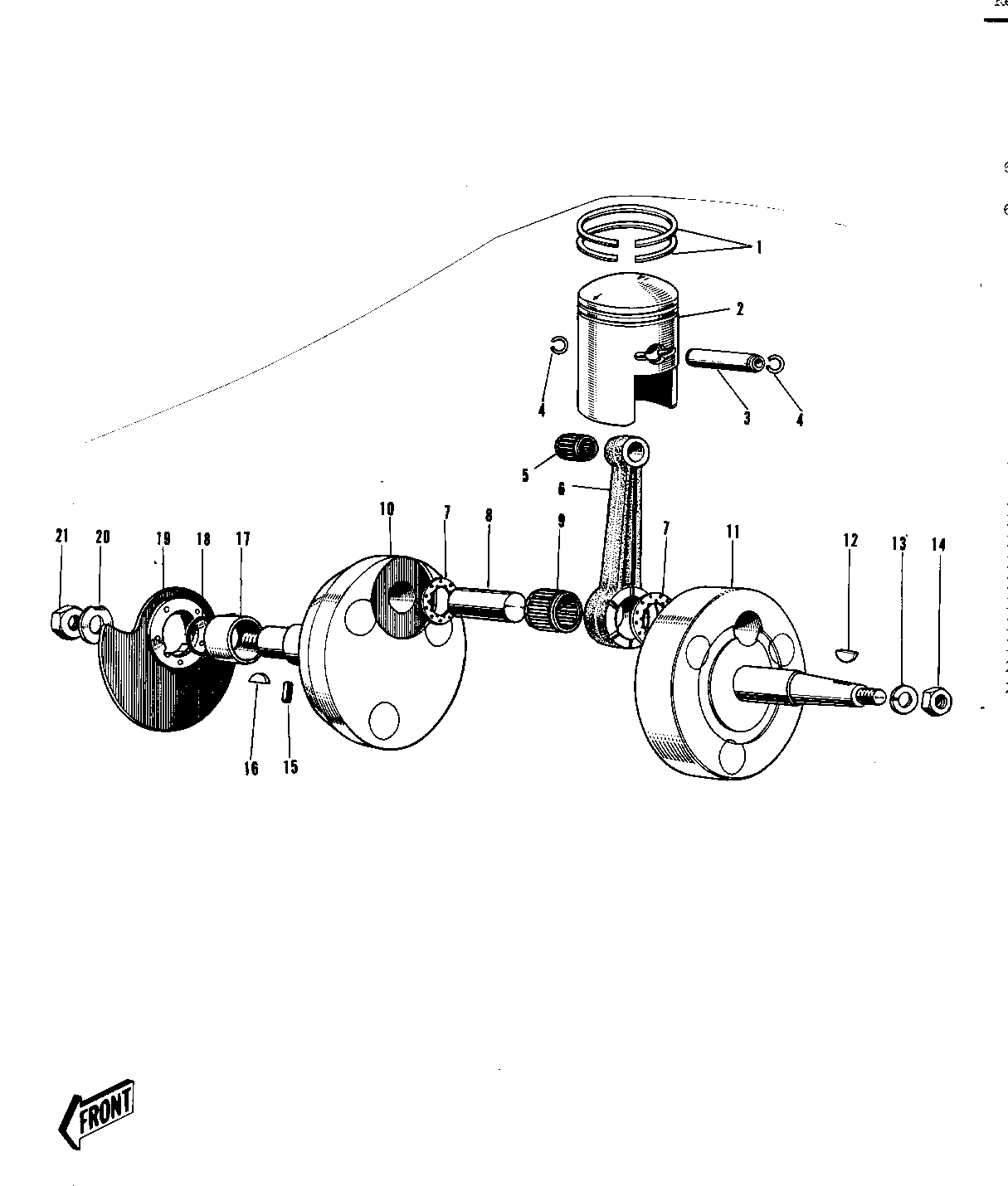

1971 Centurion - CRANKSHAFT/PISTON/ROTARY VALVE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RING SET,STD 1 13003-029
PISTON STD 2 13001-033
PIN-PISTON 3 13002-007
CIRCLIP PISTON PIN 4 92036-007
BRG N72KTV030 5 13033-028 U/W 13036-022
BRG N72KTV030 5 13033-028 U/W 13036-034
CONNECTING ROD SET 6~9 13044-008 U/W 13036-022
CONNECTING ROD SET 6~9 13044-019 U/W 13036-034
CRANK&CONROD ASSY 6~11 13036-034 E/NO. 5009
CRANK&CONROD ASSY 6~11 13036-034 E/NO. 5010
WASHER SIDE 7 92025-005 U/W 13036-022
WASHER-SIDE 7 92025-047 U/W 13036-034
CRANK PIN 8 13035-008 U/W 13036-022
CRANK PIN 8 13035-025 U/W 13036-034
NEEDLE BEARING BG END 9 13034-018 U/W 13036-022
NEEDLE BEARING-BG END 9 13034-025 U/W 13036-034
CRANKSHAFT R.H 10 13038-012 U/W 13036-022
CRANKSHAFT,R.H 10 13038-040 U/W 13036-034
CRANKSHAFT L.H 11 13037-018 U/W 13036-022
CRANKSHAFT,L.H 11 13037-044 U/W 13036-034
WOODRUFF KEY 12 510A3200
WASHER SPRING 10MM 13 461F1000
NUT,10MM 14 314B1000
PIN DOWEL 4X8 15 610A0408
WOODRUFF KEY PRY PINI 16 92038-003
COLLAR CRANKSHAFT 17 92027-022
"0" RING,16MM 18 670B2016
VALVE ROTARY DISC 19 12001-015
WASHER LOCK 12MM 20 92024-003
NUT 12MM 21 92015-006
