Parts Diagrams |

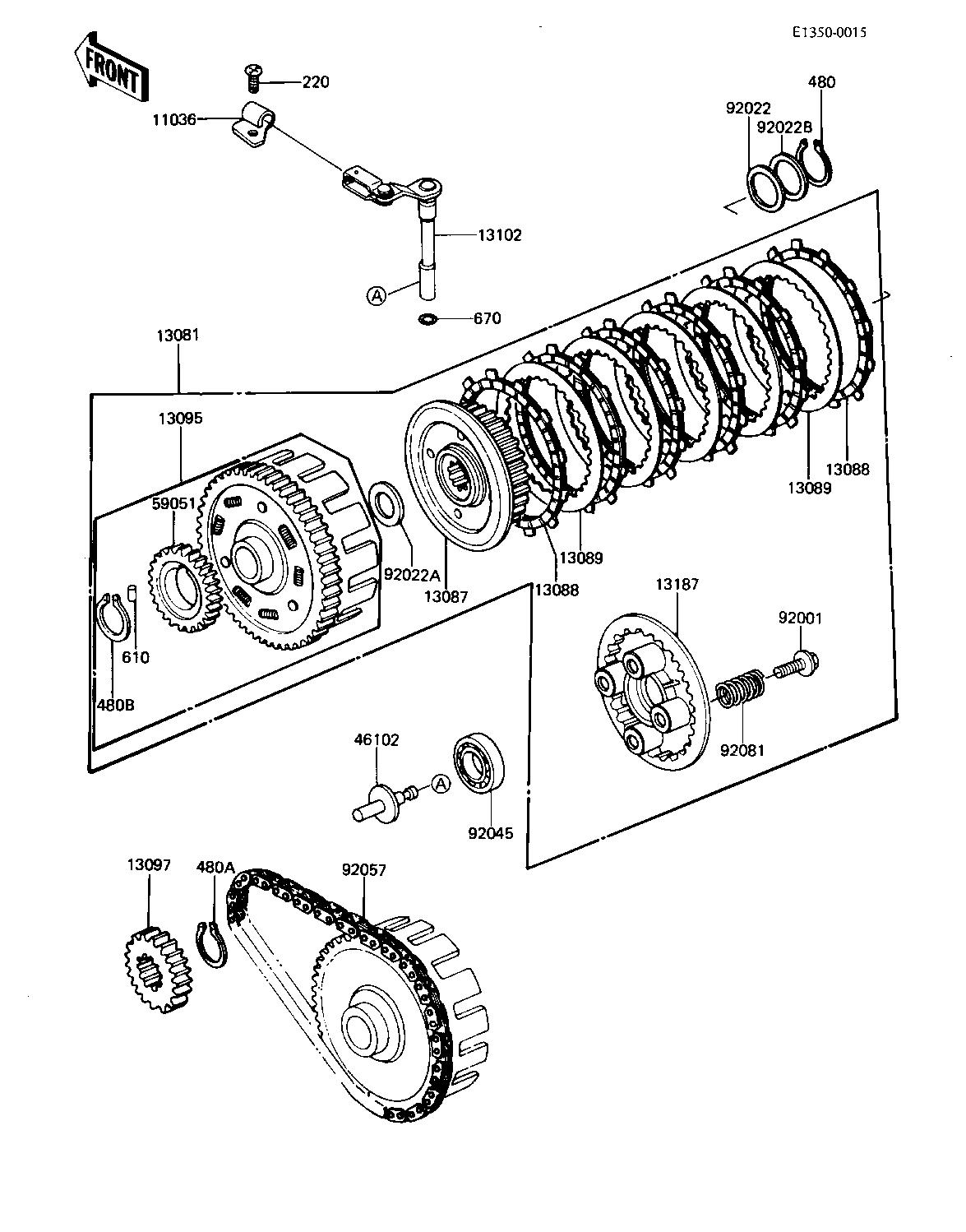

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,CLUTCH RELE | 11036 | 11036-1125 | 1 | ||
| CLUTCH-ASSY | 13081 | 13081-1067 | 1 | ||
| HUB,CLUTCH | 13087 | 13087-040 | 1 | ||
| PLATE,FRICTION | 13088 | 13088-1001 | 6 | ||
| PLATE,CLUTCH STEEL | 13089 | 13089-026 | 5 | ||
| HOUSING,CLUTCH | 13095 | 13095-1008 | 1 | ||
| SPROCKET,PRIMARY | 13097 | 13121-030 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1009 | 1 | ||
| PLATE-CLUTCH OPERATIN | 13187 | 13187-1007 | 1 | ||
| ROD,CLUTCH | 46102 | 46102-1031 | 1 | ||
| GEAR,OIL PUMP,34T | 59051 | 59051-1001 | 1 | ||
| BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 4 | ||
| WASHER-THRUST | 92022 | 92022-225 | 1 | ||
| WASHER,CLUTCH THRUST | 92022A | 92022-288 | 1 | ||
| WASHER,CLUTCH TRUST | 92022B | 92022-302 | 1 | ||
| BEARING-BALL,16005(NT | 92045 | 92045-1045 | 1 | ||
| CHAIN,PRIMARY DRIVE | 92057 | 13122-005 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1033 | 4 | ||
| SCREW PAN HEAD 6X16 | 220 | 220B0616 | 1 | ||
| CIRCLIP 24MM | 480 | 480J2400 | 1 | ||
| CIRCLIP,30MM | 480A | 480J3000 | 1 | ||
| CIRCLIP, 38MM | 480B | 480J3800 | 1 | ||
| PIN, DOWELL, 6X6 | 610 | 610A0606 | 1 | ||
| "O" RING,9MM | 670 | 670B1509 | 1 |
| BRACKET-A,CLUTCH RELE | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH STEEL | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,PRIMARY | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATIN | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OIL PUMP,34T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-THRUST | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH THRUST | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH TRUST | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,16005(NT | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,PRIMARY DRIVE | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 24MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,30MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP, 38MM | |
| REF # | 480B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN, DOWELL, 6X6 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
