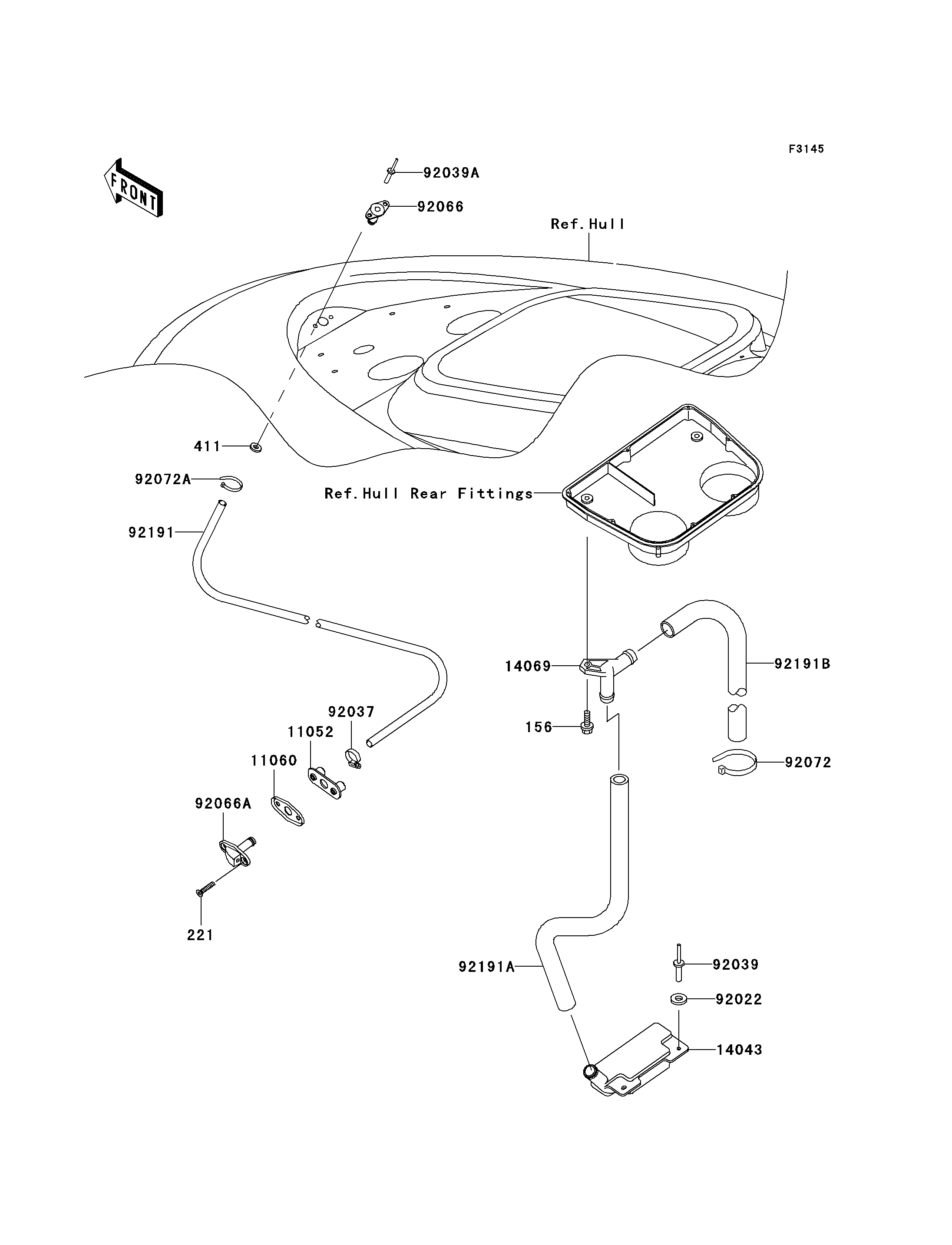

2005 Ultra 150 - Bilge System

DOWNLOAD PDF
SELECT A NEW PART
156
221
411
11052
11060
14043
14069
92022
92037
92039
92039A
92066
92066A
92072
92072A
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP,6X18 156 156R0618 1
SCREW-CSK-CROSS,5X25 221 221R0525 2
WASHER-PLAIN,5MM 411 411S0500 2
BRACKET 11052 11052-3735 1
GASKET 11060 11060-3798 1
FILTER 14043 14043-3710 1
BREATHER 14069 14069-3708 1
WASHER,5X16X1.5 92022 92022-3041 2
CLAMP 92037 92037-3726 1
RIVET 92039 92039-3714 2
RIVET 92039A 92039-3747 2
PLUG 92066 92066-3766 1
PLUG 92066A 92066-3767 1
BAND,L=188 92072 92072-1239 1
BAND,L=99 92072A 92072-3871 1
TUBE,10X13X600 92191 92191-3862 1
TUBE 92191A 92191-3883 1
TUBE,15.88X22.24X570 92191B 92191-3896 1
