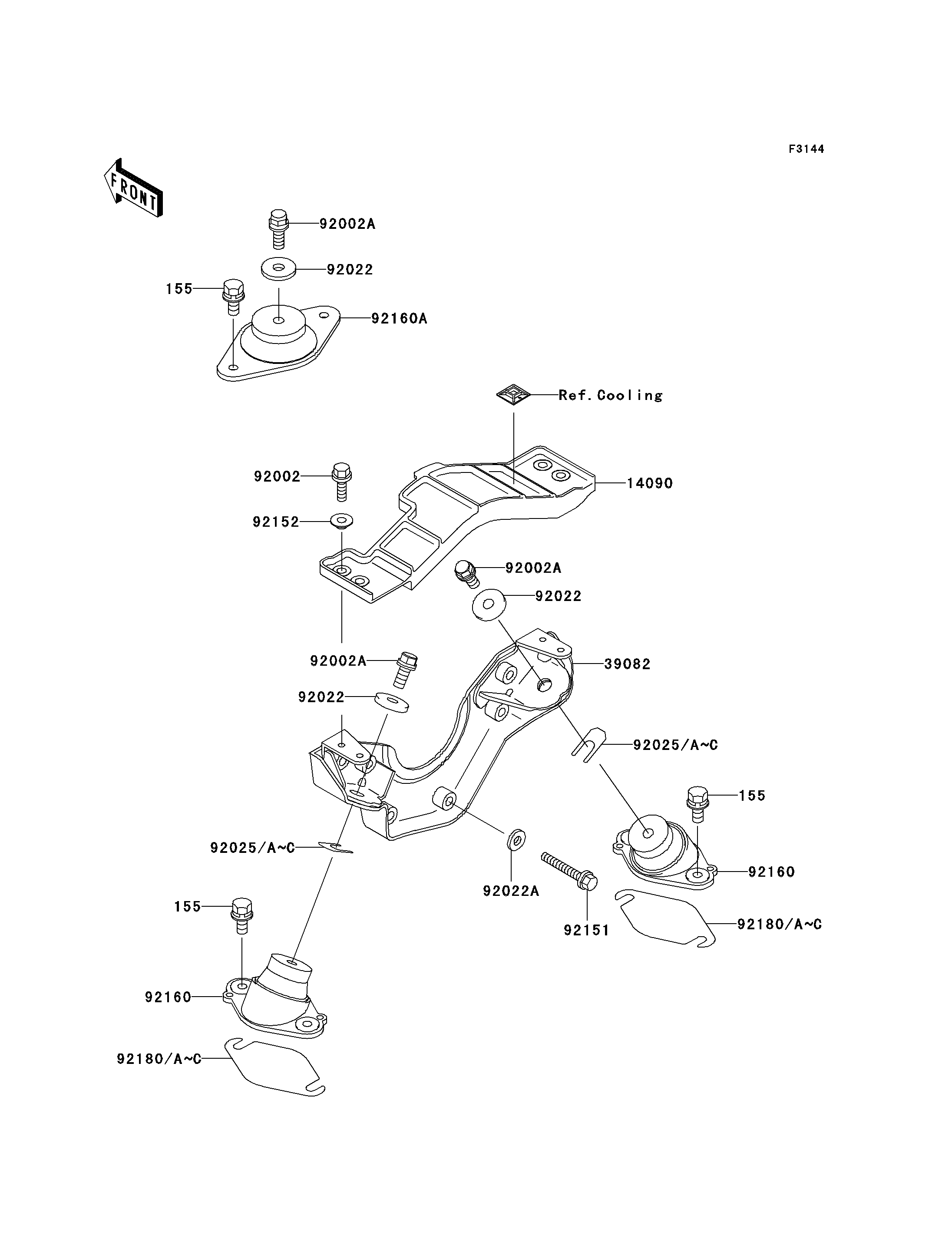

2005 Ultra 150 - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
155
155
155
14090
39082
92002
92002A
92002A
92002A
92022
92022
92022
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92151
92152
92160
92160
92160A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X30 155 155R0830 6
COVER 14090 14090-3815 1
MOUNT-ENGINE 39082 39082-3720 1
BOLT,6X16 92002 92002-3728 4
BOLT,10X25 92002A 92002-3770 3
WASHER,32X10.5X4 92022 92022-3023 3
WASHER,8.2X18X1.5 92022A 92022-3743 6
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
BOLT,8X35 92151 92151-3763 6
COLLAR 92152 92152-3712 4
DAMPER,ENGINE MOUNT 92160 92160-3838 2
DAMPER 92160A 92160-3903 1
SHIM,T=0.30 92180 92180-3708 AR
SHIM,T=0.50 92180A 92180-3709 AR
SHIM,T=1.00 92180B 92180-3710 AR
SHIM,T=1.50 92180C 92180-3711 AR
