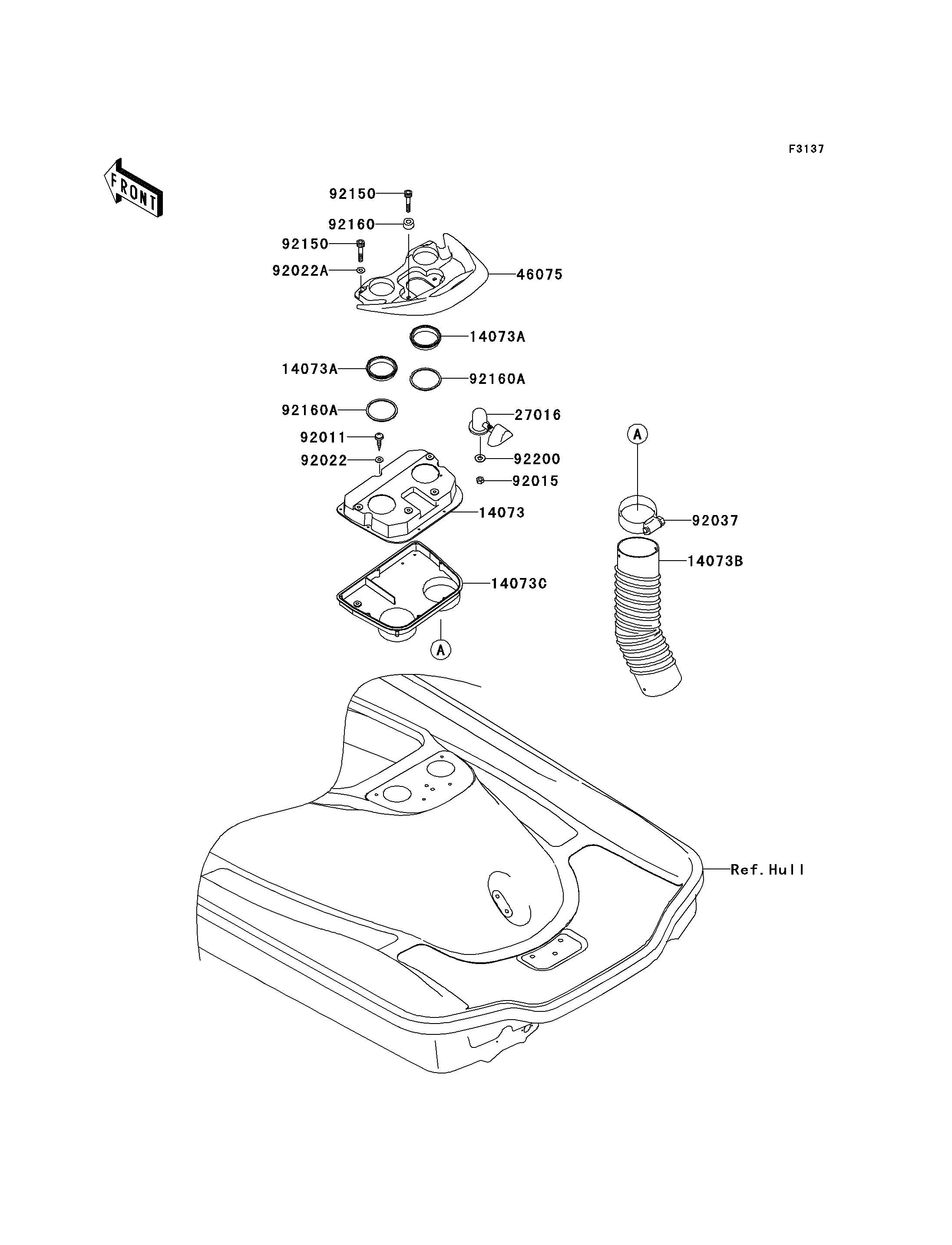

2005 Ultra 150 - Hull Rear Fittings

DOWNLOAD PDF
SELECT A NEW PART
14073
14073A
14073A
14073B
14073C
27016
46075
92011
92015
92022
92022A
92037
92150
92150
92160
92160A
92160A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DUCT,RR,UPP 14073 14073-3767 1
DUCT 14073A 14073-3769 2
DUCT 14073B 14073-3771 1
DUCT,RR,LWR 14073C 14073-3782 1
LOCK-ASSY,SEAT,F.BLACK 27016 27016-3744-6Z 1
GRIP,TAIL,F.BLACK 46075 46075-3746-6Z 1
SCREW 92011 92011-562 7
NUT,FLANGED,8MM 92015 92015-3709 1
WASHER,5X16X1.5 92022 92022-3041 7
WASHER,6.5X20X1.5 92022A 92022-3710 2
CLAMP,MAX120.7MM 92037 92037-3733 1
BOLT,SOCKET,6X30 92150 92150-3822 4
DAMPER 92160 92160-3738 2
DAMPER 92160A 92160-3910 2
WASHER,8.5X25X1.5 92200 92200-3717 1
