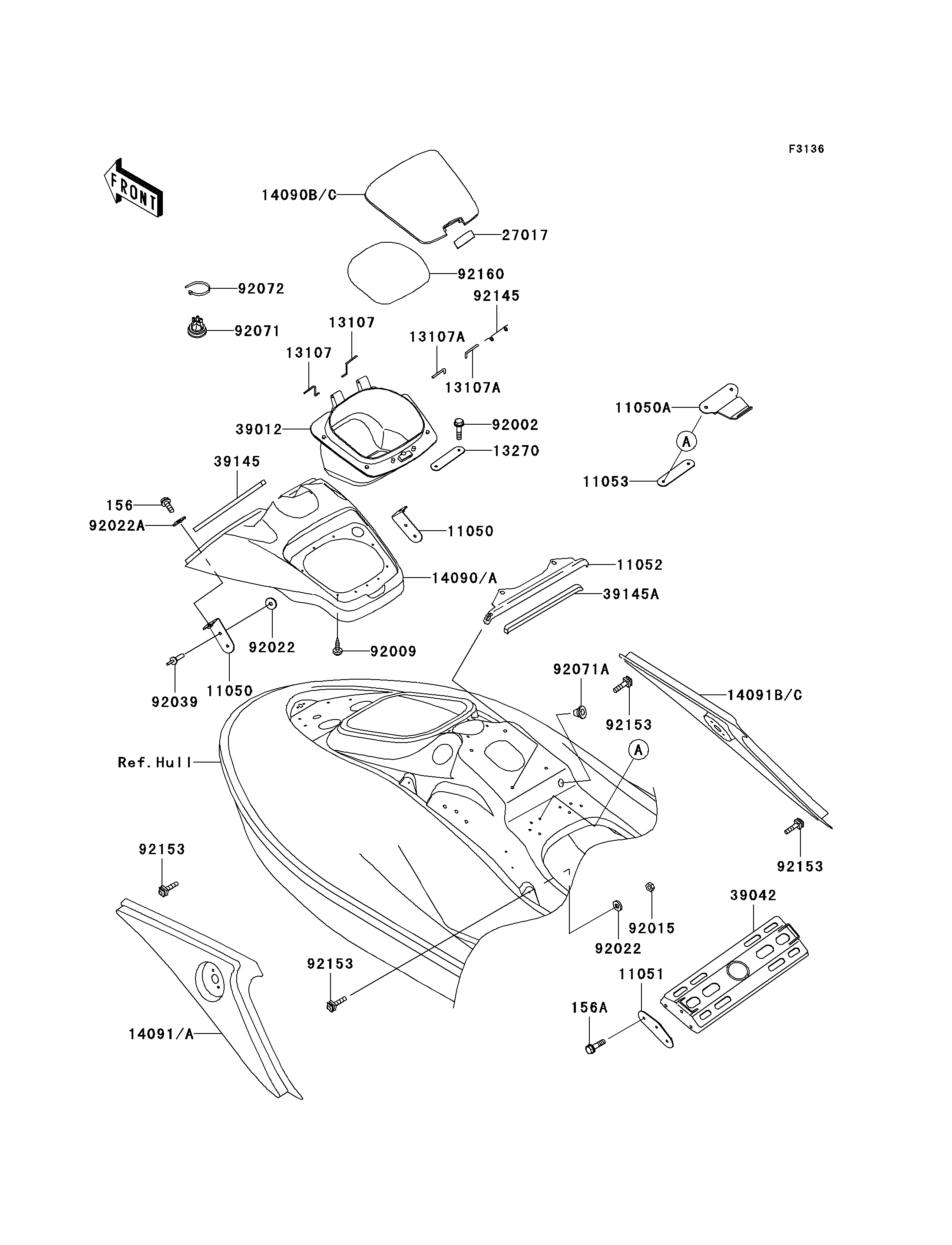

2005 Ultra 150 - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
156
156A
11050
11050
11050A
11051
11052
11053
13107
13107
13107A
13107A
13270
14090A
14090C
14091A
14091C
27017
39012
39042
39145
39145A
92002
92009
92015
92022
92022
92022A
92039
92071
92071A
92072
92145
92153
92153
92153
92153
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP,6X18 156 156R0618 2
BOLT-WP,6X25 156A 156R0625 6
BRACKET 11050 11050-3746 2
BRACKET 11050A 11050-3775 1
BRACKET 11051 11051-3760 2
BRACKET 11052 11052-3748 1
BRACKET 11053 11053-3732 1
SHAFT 13107 13107-3761 2
SHAFT 13107A 13107-3769 2
PLATE 13270 13270-3909 1
COVER,HANDLE,L.GREEN 14090A 14090-3809-777 1
COVER,CENTER STORAGE,L.GREEN 14090C 14090-3812-777 1
COVER,SIDE,LH,I.M.CARBON 14091A 14091-3731-380 1
COVER,SIDE,RH,I.M.CARBON 14091C 14091-3732-380 1
LOCK,CENTER STORAGE,F.BLACK 27017 27017-3720-6Z 1
CASE-STORAGE 39012 39012-3737 1
CROSSMEMBER,FR 39042 39042-3707 1
TRIM-SEAL,L=340 39145 39145-3764 2
TRIM-SEAL,L=340 39145A 39145-3779 1
BOLT,6X25 92002 92002-3714 2
SCREW,TAPPING,5X20 92009 92009-3716 8
NUT,LOCK,5MM 92015 92015-3798 4
WASHER,5X16X1.5 92022 92022-3041 8
WASHER,6.5X20X1.5 92022A 92022-3710 2
RIVET 92039 92039-3775 4
GROMMET 92071 92071-3819 1
GROMMET 92071A 92071-3826 1
BAND,L=292.1 92072 92072-3509 1
SPRING 92145 92145-3711 1
BOLT,5MM 92153 92153-3703 4
DAMPER 92160 92160-3933 1
