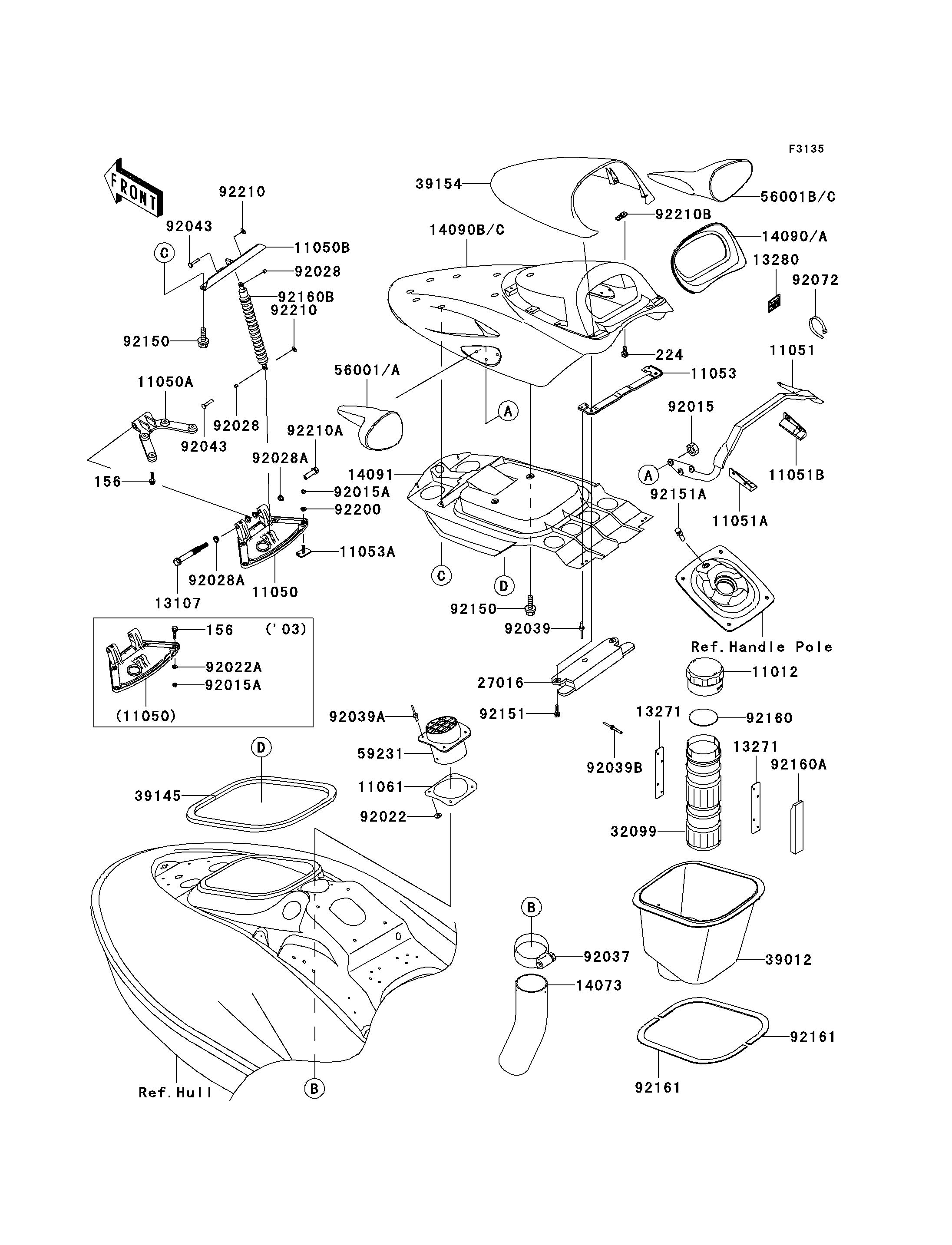

2005 Ultra 150 - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11050
11050
11050A
11050A
11050B
11050B
11051
11051
11051A
11051A
11051B
11051B
11053
11053
11053A
11053A
11061
11061
13107
13107
13271
13271
13271
13271
13280
13280
14073
14073
14090A
14090A
14090C
14090C
14091
14091
27016
27016
32099
32099
39012
39012
39145
39145
39154
39154
56001
56001
56001B
56001B
59231
59231
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92037
92037
92039
92039
92039A
92039A
92039B
92039B
92043
92043
92043
92043
156
156
156
156
224
224
92072
92072
92150
92150
92150
92150
92151
92151
92151A
92151A
92160
92160
92160A
92160A
92160B
92160B
92161
92161
92161
92161
92200
92200
92210
92210
92210
92210
92210A
92210A
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET 11050 11050-3743 1
BRACKET 11050A 11050-3744 1
BRACKET 11050B 11050-3778 1
BRACKET 11051 11051-3707 1
BRACKET,LH 11051A 11051-3745 1
BRACKET,RH 11051B 11051-3746 1
BRACKET 11053 11053-3714 1
BRACKET 11053A 11053-3776 4
GASKET,FRONT DUCT 11061 11061-3703 1
SHAFT 13107 13107-3767 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 2
HOLDER 13280 13280-3739 1
DUCT,FR 14073 14073-3784 1
COVER,METER,L.GREEN 14090A 14090-3820-777 1
COVER,HATCH,L.GREEN 14090C 14090-3823-777 1
COVER,DUCT 14091 14091-3730 1
LOCK-ASSY,LID 27016 27016-3753 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
CASE-STORAGE 39012 39012-3721 1
TRIM-SEAL 39145 39145-3756 1
WINDSHIELD 39154 39154-3707 1
MIRROR-ASSY,LH,L.GREEN 56001 56001-3713-777 1
MIRROR-ASSY,RH,L.GREEN 56001B 56001-3714-777 1
FILLER 59231 59231-3725 1
NUT,LOCK,6MM 92015 92015-3766 6
NUT,6MM 92015A 92015-3767 4
WASHER,5X16X1.5 92022 92022-3041 4
BUSHING 92028 92028-3765 2
BUSHING 92028A 92028-3770 4
CLAMP,MAX120.7MM 92037 92037-3733 1
RIVET 92039 92039-3747 4
RIVET 92039A 92039-3775 4
RIVET 92039B 92039-3783 4
PIN,6X33 92043 92043-3748 2
BOLT-WP,6X20 156 156R0620 4
SCREW-PAN-WP-CROS,5X14 224 224R0514 8
BAND 92072 92072-3857 1
BOLT,6X18 92150 92150-3729 4
BOLT,6X22 92151 92151-3769 2
BOLT 92151A 92151-3776 1
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER 92160B 92160-3919 1
DAMPER 92161 92161-3714 2
WASHER,6.5X16X1.0 92200 92200-3712 4
NUT,SPEED,6MM 92210 92210-3739 2
NUT,8MM 92210A 92210-3748 1
NUT 92210B 92210-3750 8
