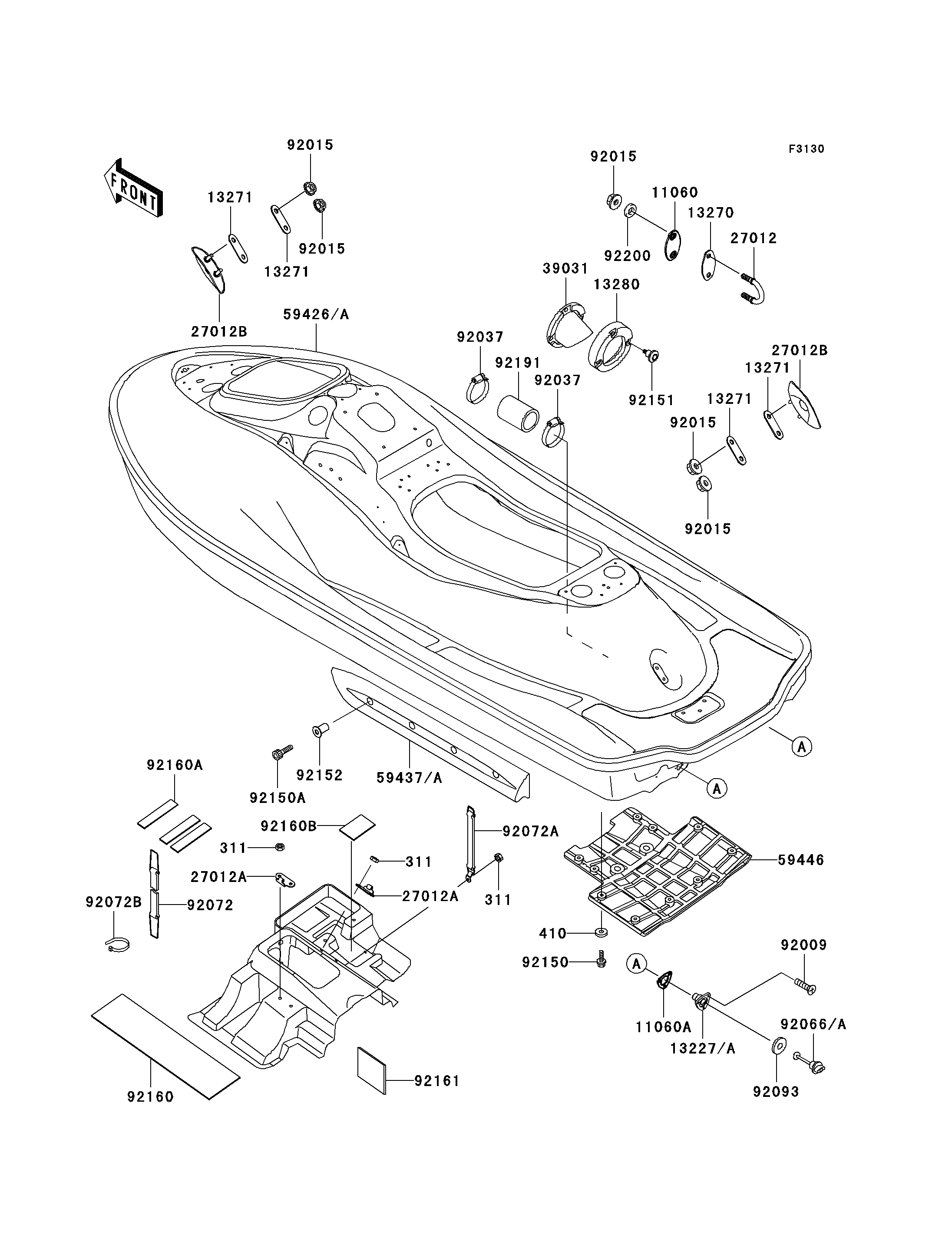

2005 Ultra 150 - Hull

DOWNLOAD PDF
SELECT A NEW PART
311
311
311
410
11060
11060A
13227A
13270
13271
13271
13271
13271
13280
27012
27012A
27012A
27012B
27012B
39031
59437
59437A
59446
92009
92015
92015
92015
92015
92015
92037
92037
92066A
92072
92072A
92072B
92093
92150
92150A
92151
92152
92160
92160A
92160B
92161
92191
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 5
WASHER-PLAIN-SMALL,6MM 410 410S0600 10
GASKET,U HOOK,RR 11060 11060-3800 2
GASKET,DRAIN PLUG 11060A 11060-3801 2
HOUSING,DRAIN PLUG,F.BLACK 13227A 13227-3721-6Z 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 4
HOLDER,EXHAUST VALVE 13280 13280-3718 1
HOOK 27012 27012-3797 2
HOOK 27012A 27012-3816 2
HOOK,BOW,F.BLACK 27012B 27012-3822-6Z 2
CAP-END 39031 39031-3704 1
STABILIZER,LH,F.BLACK 59437 59437-3733-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3734-6Z 1
COVER-JET PUMP 59446 59446-3749 1
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 8
CLAMP 92037 92037-3009 2
PLUG,RR,DRAIN,F.BLACK 92066A 92066-3783-6Z 2
BAND,340X22 92072 92072-3805 1
BAND,248X18 92072A 92072-3829 1
BAND,L=99 92072B 92072-3871 1
SEAL 92093 92093-3720 2
BOLT,SOCKET,6X18 92150 92150-3775 10
BOLT,SOCKET,6X30 92150A 92150-3822 8
BOLT,SOCKET,M6,SHOULDER 92151 92151-3746 3
COLLAR 92152 92152-3715 8
DAMPER 92160 92160-3839 1
DAMPER 92160A 92160-3840 3
DAMPER 92160B 92160-3913 1
DAMPER 92161 92161-3704 1
TUBE,39X51X70 92191 92191-3856 1
WASHER 92200 92200-3779 4
HULL-COMP,G.BLACK 59426 59426-3925-650 1 US
