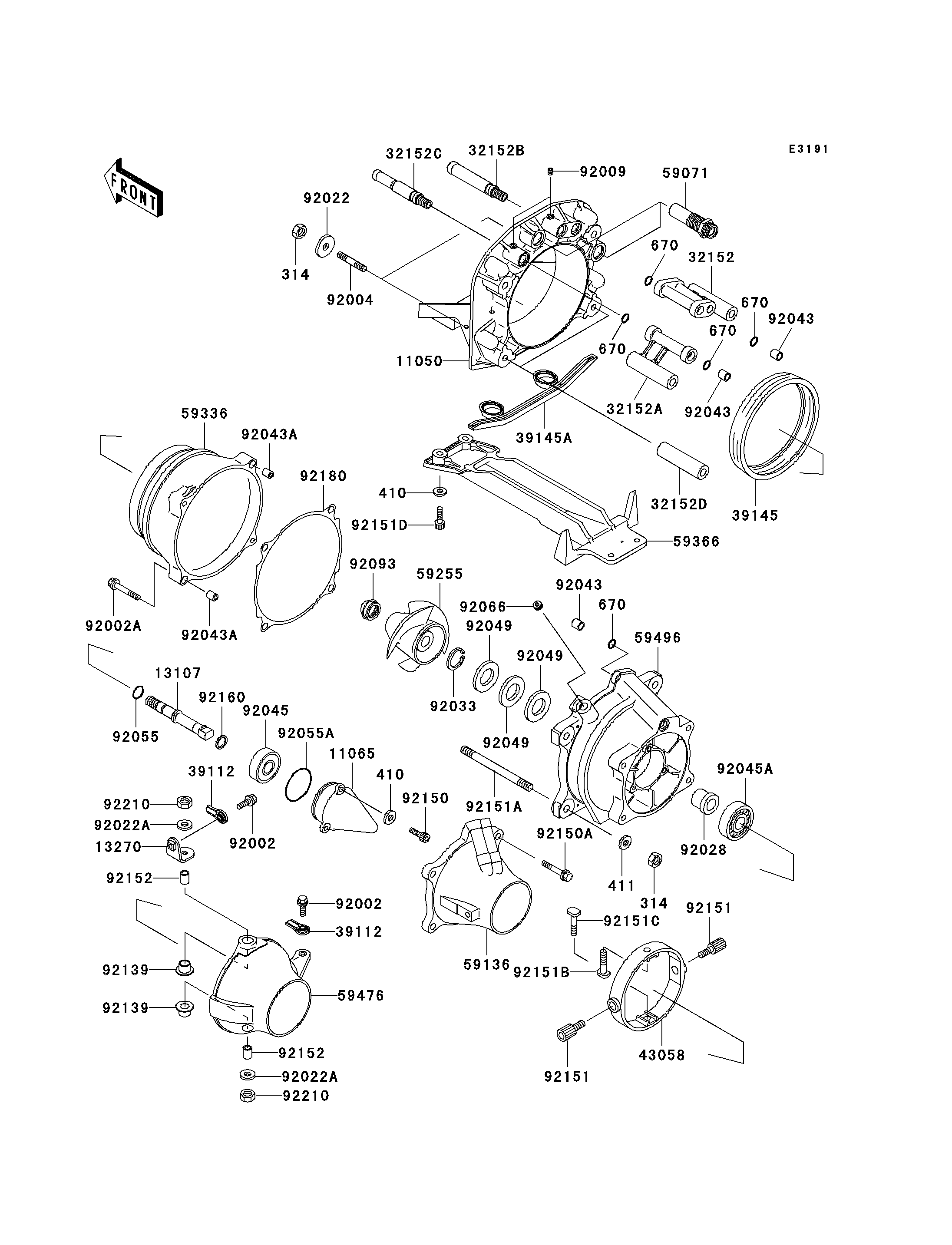

2005 Ultra 150 - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11065
11065
13107
13107
13270
13270
32152
32152
32152A
32152A
32152B
32152B
32152C
32152C
32152D
32152D
39112
39112
39112
39112
39145
39145
39145A
39145A
43058
43058
59071
59071
59136
59136
59255
59255
59336
59336
59366
59366
59476
59476
59496
59496
92002
92002
92002
92002
92002A
92002A
92004
92004
92009
92009
92022
92022
92022A
92022A
92022A
92022A
92028
92028
92033
92033
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92045
92045
92045A
92045A
92049
92049
92049
92049
92049
92049
92055
92055
92055A
92055A
92066
92066
92093
92093
92139
92139
92139
92139
92150
92150
92150A
92150A
314
314
314
314
410
410
410
410
411
411
670
670
670
670
670
670
670
670
670
670
92151
92151
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92152
92152
92152
92152
92160
92160
92180
92180
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11050 11050-3758 1
CAP 11065 11065-3705 1
SHAFT 13107 13107-3773 1
PLATE 13270 13270-3905 1
PIPE 32152 32152-3742 1
PIPE 32152A 32152-3743 1
PIPE 32152B 32152-3744 1
PIPE 32152C 32152-3745 1
PIPE 32152D 32152-3751 2
RODEND-TIE 39112 39112-3703 2
TRIM-SEAL 39145 39145-3758 1
TRIM-SEAL 39145A 39145-3766 1
RING,TILT 43058 43058-3731 1
JOINT,CABLE 59071 59071-3760 2
NOZZLE-PUMP 59136 59136-3742 1
IMPELLER-COMP 59255 59255-3723 1
CASE-PUMP 59336 59336-3713 1
GRATE 59366 59366-3718 1
NOZZLE-STRG 59476 59476-3738 1
VANE-GUIDE 59496 59496-3735 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X40 92002A 92002-3716 4
STUD,10X35 92004 92004-3732 4
SCREW 92009 92009-3780 2
WASHER,32X10.5X4 92022 92022-3023 4
WASHER,PLAIN 92022A 92022-3026 2
BUSHING 92028 92028-3773 1
RING-SNAP 92033 92033-3730 1
PIN,12X12 92043 92043-3745 3
PIN,10X12 92043A 92043-3747 2
BEARING-BALL,62022RD 92045 92045-3721 1
BEARING-BALL 92045A 92045-3730 1
SEAL-OIL 92049 92049-3739 3
RING-O,OIL FILTER 92055 92055-1011 1
RING-O,52.6X2.4 92055A 92055-1520 1
PLUG,PT1/4X8.9 92066 92066-3765 1
SEAL 92093 92093-3749 1
BUSHING 92139 92139-3701 2
BOLT,SOCKET,6X18 92150 92150-3775 3
BOLT,8X35 92150A 92150-3792 4
NUT-HEX-FINE,10MM 314 314R1000 8
WASHER-PLAIN-SMALL,6MM 410 410S0600 7
WASHER-PLAIN,10MM 411 411S1000 4
O RING,12MM 670 670B2012 5
BOLT 92151 92151-3705 2
BOLT,10X110 92151A 92151-3733 4
BOLT,8MM 92151B 92151-3735 1
BOLT,8X32 92151C 92151-3752 1
BOLT,SOCKET,6X20 92151D 92151-3774 4
COLLAR,8.2X11.8X15 92152 92152-3703 2
DAMPER 92160 92160-3932 1
SHIM,T=0.5 92180 92180-3705 AR
NUT,LOCK,8MM 92210 92210-3742 2
