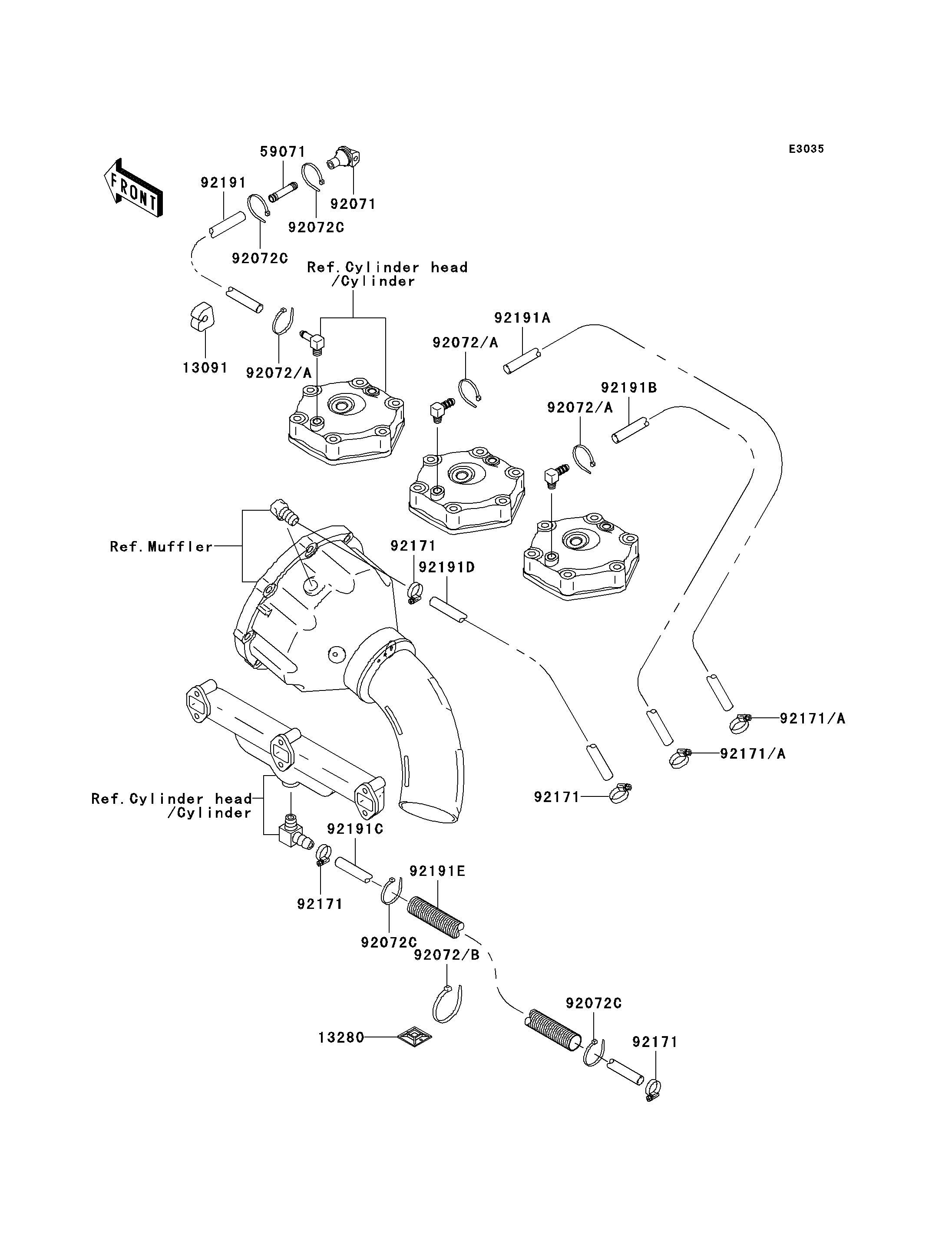

Parts Diagrams |
13091
13280
59071
92071
92072
92072
92072
92072
92072C
92072C
92072C
92072C
92171
92171
92171
92171
92171
92171
92191
92191A
92191B
92191C
92191D
92191E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| HOLDER | 13280 | 13280-3739 | 1 | ||
| JOINT | 59071 | 59071-3764 | 1 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| BAND,L=188 | 92072 | 92072-1239 | 4 | ||
| BAND,L=99 | 92072C | 92072-3871 | 4 | ||
| CLAMP | 92171 | 92171-3701 | 6 | ||
| TUBE,SENSOR-DECK | 92191 | 92191-3748 | 1 | ||
| TUBE,9X15X1200 | 92191A | 92191-3844 | 1 | ||
| TUBE,9X15X1050 | 92191B | 92191-3845 | 1 | ||
| TUBE,12X18X900 | 92191C | 92191-3846 | 1 | ||
| TUBE,12X18X650 | 92191D | 92191-3855 | 1 | ||
| TUBE | 92191E | 92191-3884 | 1 |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=188 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,L=99 | |
| REF # | 92072C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,SENSOR-DECK | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,9X15X1200 | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,9X15X1050 | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,12X18X900 | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,12X18X650 | |
| REF # | 92191D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
