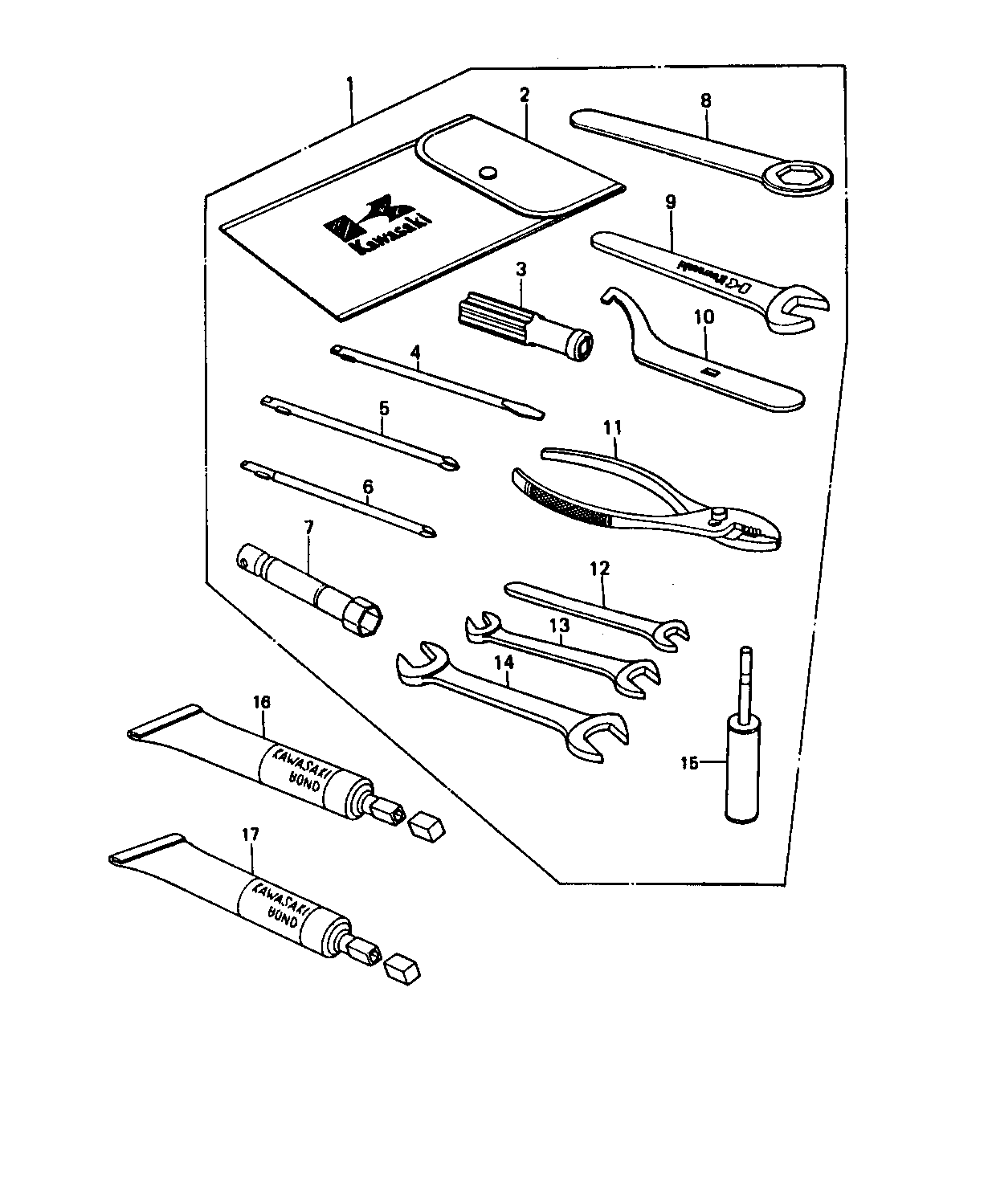

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 58007-1067 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 58008-009 | 1 | ||
| GRIP,SCREW DRIVER | 3 | 92106-1001 | 1 | ||
| 92107-1052 (Canada) | 4 | 92107-007 | 1 | ||
| TOOL-DRIVER | 5 | 92107-1052 | 1 | ||
| 92107-1002 (Canada) | 6 | 92107-008 | 1 | ||
| WRENCH,SPARK PLUG | 7 | 92108-008 | 1 | ||
| TOOL-WRENCH,BOX END,2 | 8 | 92110-1148 | 1 | ||
| WRENCH,OPEN END,19M/M | 9 | 92110-1004 | 1 | ||
| WRENCH,HOOK | 10 | 92110-1014 | 1 | ||
| 92112-003 (Canada) | 11 | 92112-005 | 1 | ||
| WRENCH,OPEN END,10M/M | 12 | 92110-1031 | 1 | ||
| WRENCH,OPEN END,12X13 | 13 | 92126-002 | 1 | ||
| TOOL-WRENCH,OPEN END, | 14 | 92110-1153 | 1 | ||
| GAGE,TENSION | 15 | 52005-1016 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 16 | 58019-120 | (1 | ||
| LIQUID GASKET | 17 | 92104-002 | (1 |
