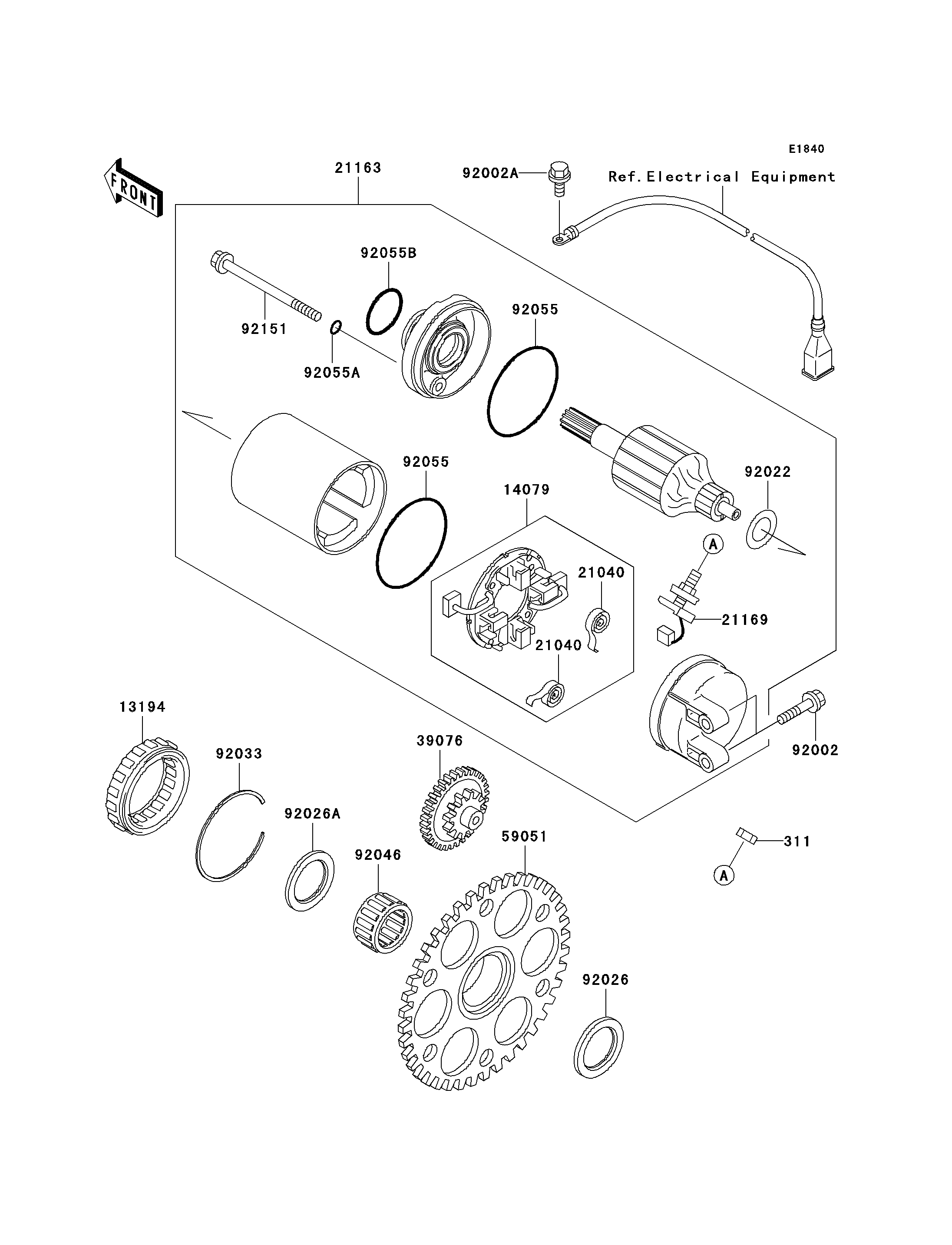

2005 Ultra 150 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
311
13194
14079
21040
21040
21163
21169
39076
59051
92002
92002A
92022
92026
92026A
92033
92046
92055
92055
92055A
92055B
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 1
CLUTCH-ONEWAY 13194 13194-3705 1
HOLDER-ASSY 14079 14079-3725 1
SPRING-BRUSH 21040 21040-3702 2
STARTER-ELECTRIC 21163 21163-3719 1
TERMINAL 21169 21169-3701 1
LIMITER 39076 39076-3703 1
GEAR-SPUR 59051 59051-3706 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X12 92002A 92002-3763 1
WASHER 92022 92022-2200 1
SPACER,28X38X3.0 92026 92026-3738 1
SPACER,26.3X38X2.5 92026A 92026-3739 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,KT283315E01 92046 92046-3701 1
RING-O,62MM 92055 92055-1260 2
RING-O,4.5MM 92055A 92055-1261 2
RING-O,24.4MM 92055B 92055-1262 1
BOLT 92151 92151-3809 2
