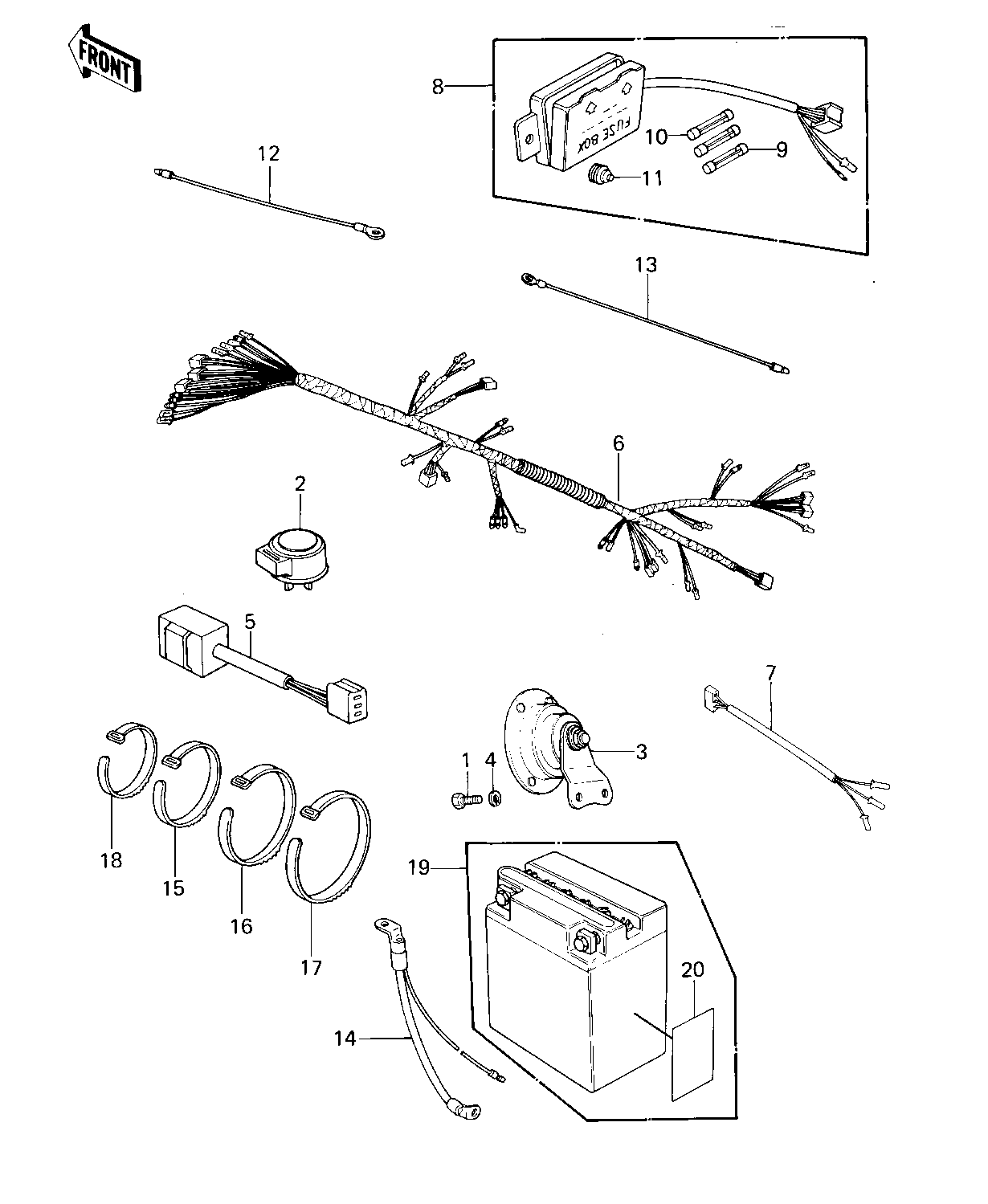

1980 LTD Belt - CHASSIS ELECTRICAL EQUIPMENT ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET,8X16 | 1 | 115G0816 | 2 | ||
| RELAY-TURN SIGNAL | 2 | 27002-011 | 1 | ||
| HORN | 3 | 27003-1019 | 1 | ||
| WASHER SPRING 8MM | 4 | 461F0800 | 2 | ||
| SWITCH,BK LIGHT IND | 5 | 28019-002 | 1 | ||
| HARNESS,MAIN | 6 | 26001-1127 | 1 | ||
| WIRING HARNESS,TL LMP | 7 | 26002-046 | 1 | ||
| FUSE ASSY | 8 | 26004-035 | 1 | ||
| FUSE 10A | 9 | 26006-003 | 3 | ||
| FUSE-20A | 10 | 26006-005 | 2 | ||
| DAMPER RUBBER,FUSE | 11 | 92075-279 | 1 | ||
| LEAD WIRE,SIGNAL LAMP | 12 | 26011-063 | 2 | ||
| WIRE,LEAD | 13 | 26011-095 | 2 | ||
| WIRE LEAD,BATTERY GRD | 14 | 26011-1022 | 1 | ||
| BAND,SHORT | 15 | 92072-030 | 4 | ||
| BAND,MIDDLE | 16 | 92072-031 | 6 | ||
| BAND,LONG | 17 | 92072-032 | 3 | ||
| BAND,BREATHER WIRE | 18 | 92072-067 | 2 | ||
| FB BAT FB12A-A | 19 | 26012-1004 | 1 | ||
| LABEL-WARNING,BATTERY | 20 | 56040-1036 | 1 |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BK LIGHT IND | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,TL LMP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE 10A | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FUSE-20A | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FUSE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEAD WIRE,SIGNAL LAMP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE LEAD,BATTERY GRD | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,MIDDLE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,BREATHER WIRE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FB BAT FB12A-A | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BATTERY | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
