Parts Diagrams |

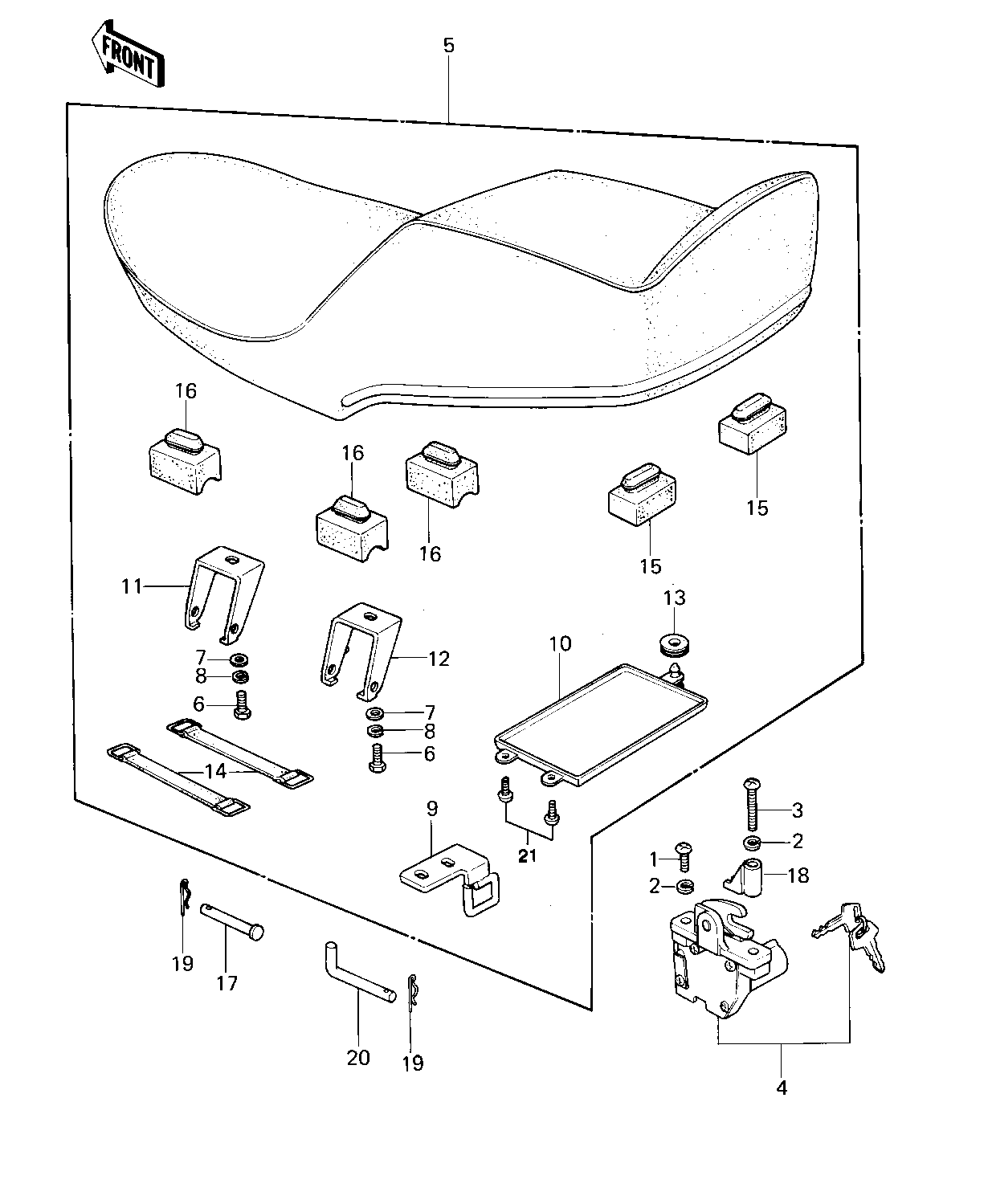

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X12 | 1 | 220B0612 | 1 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X35 | 3 | 220B0635 | 1 | ||
| LOCK ASSY,SEAT HELMET | 4 | 27016-5028 | 1 | ||
| SEAT-ASSY,DUAL | 5 | 53001-1124 | 1 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 4 | ||
| WASHER PLAIN 6MM | 7 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 4 | ||
| HOOK,SEAT | 9 | 27012-1011 | 1 | ||
| CASE | 10 | 32099-011 | 1 | ||
| HINGE, REAR | 11 | 53009-026 | 1 | ||
| HINGE,SEAT | 12 | 53009-1017 | 1 | ||
| GROMMET | 13 | 92071-056 | 1 | ||
| BAND | 14 | 92072-1006 | 2 | ||
| DAMPER RUBBER | 15 | 92075-099 | 2 | ||
| DAMPER RUBBER-SEAT | 16 | 92075-156 | 3 | ||
| PIN, DUAL SEAT PIVOT | 17 | 53011-006 | 1 | ||
| GUARD,SEAT LOCK | 18 | 55020-1031 | 1 | ||
| PIN,SNAP | 19 | 554A0600 | 2 | ||
| PIN,SEAT PIVOT | 20 | 92043-1064 | 1 | ||
| SCREW | 21 | 92009-1043 | 2 |
