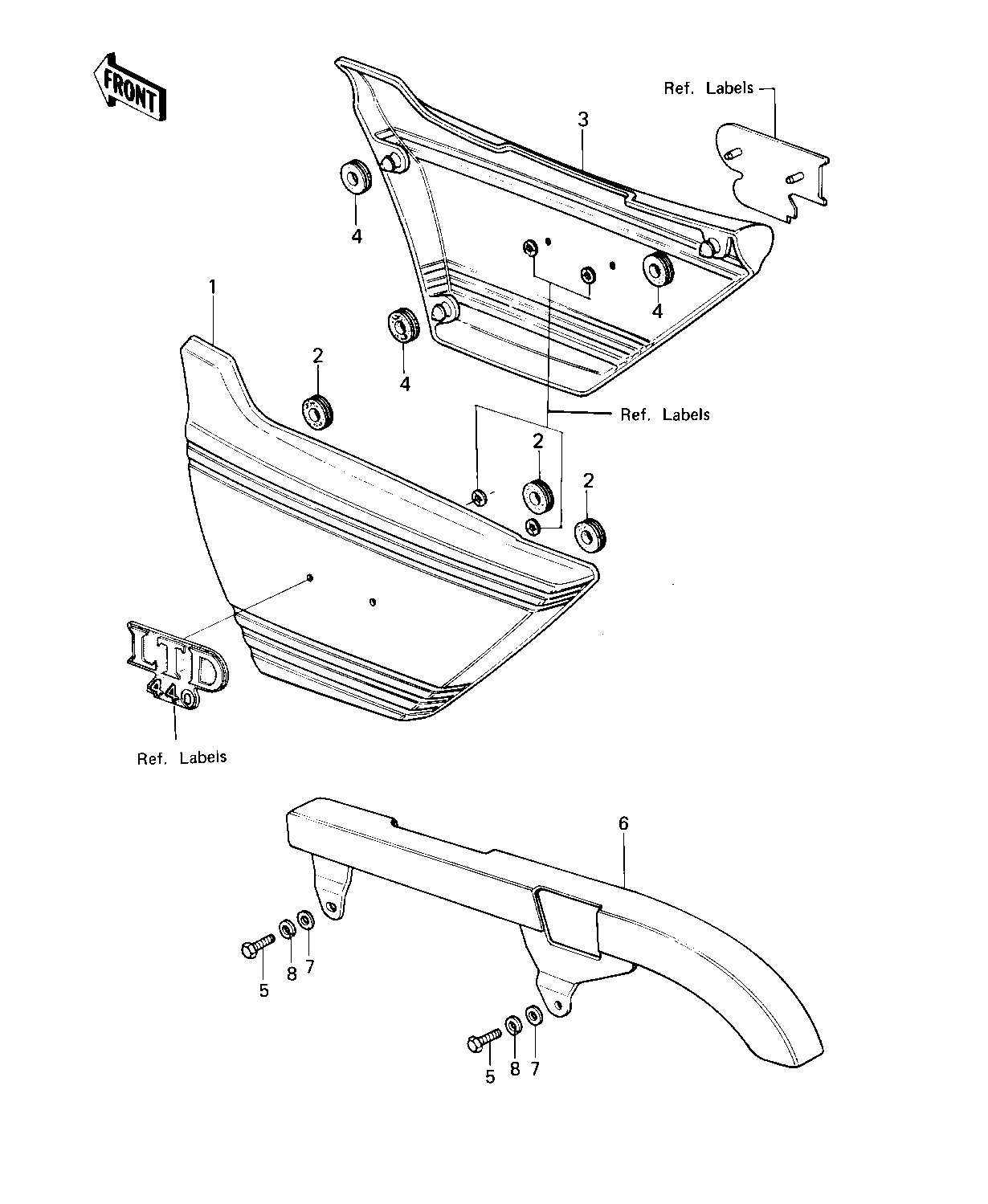

1980 LTD Belt - SIDE COVERS/BELT COVER ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,L.H,EBONY | 1 | 36001-1070-8G | 1 | ||
| COVER,SIDE,L.H,P.RED | 1 | 36001-1070-A5 | 1 | ||
| GROMMET | 2 | 92071-056 | 3 | ||
| COVER,SIDE,R.H,EBONY | 3 | 36001-1071-8G | 1 | ||
| COVER,SIDE,R.H,P.RED | 3 | 36001-1071-A5 | 1 | ||
| GROMMET | 4 | 92071-056 | 3 | ||
| BOLT-UPSET,6X16 | 5 | 112G0616 | 2 | ||
| CASE,CHAIN | 6 | 36014-1018 | 1 | ||
| WASHER PLAIN 6MM | 7 | 410B0600 | 2 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 2 |
