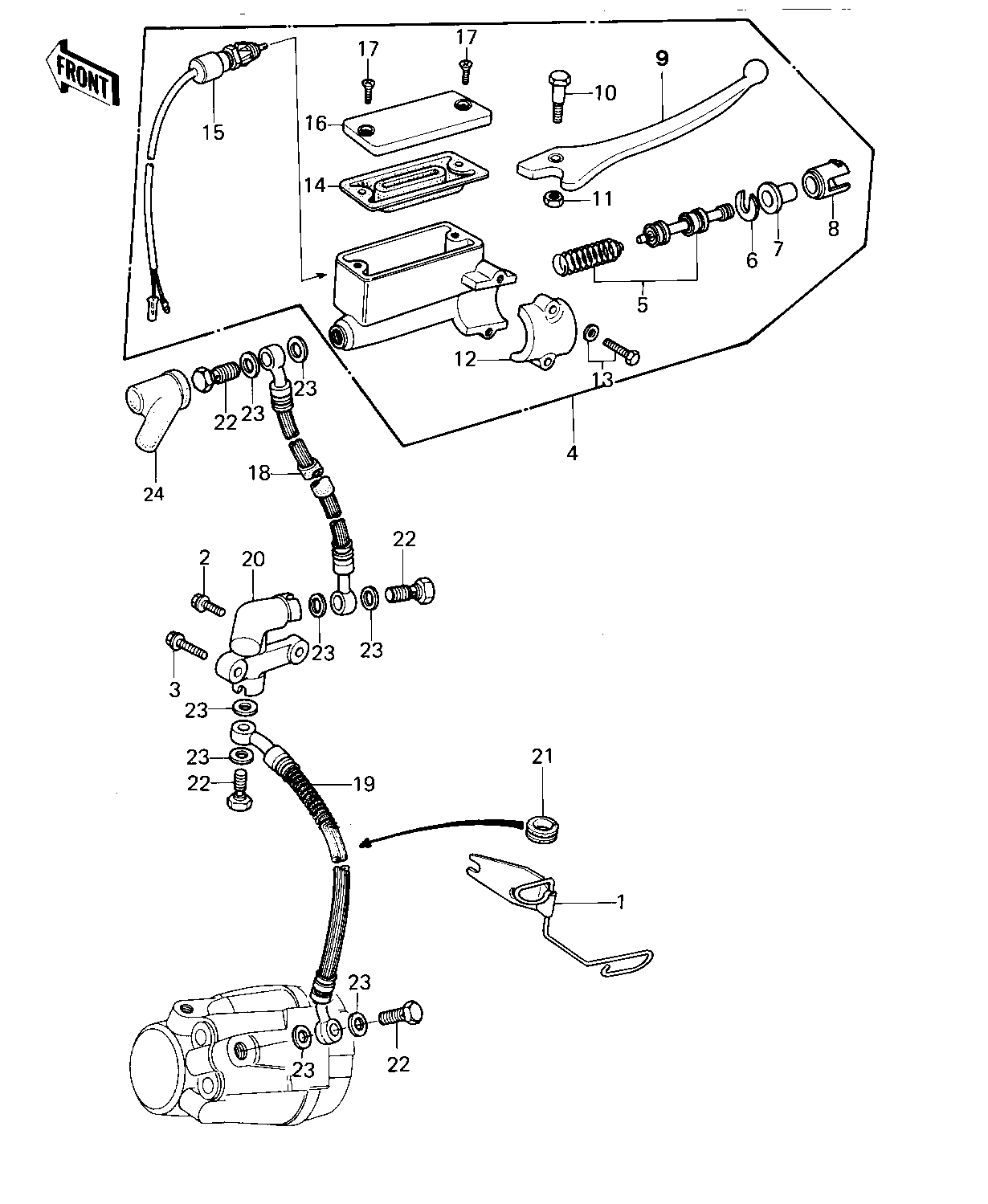

1980 LTD Belt - FRONT MASTER CYLINDER ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FRONT FENDER | 1 | 11034-1573 | 1 | ||
| BOLT,FLANGED,6X20 | 2 | 130B0620 | 1 | ||
| BOLT,FLANGED,6X30 | 3 | 131B0630 | 1 | ||
| CYLINDER ASSY,MASTER | 4 | 43015-1044 | 1 | ||
| PISTON-COMP-BRAKE | 5 | 43020-1026 | 1 | ||
| STOPER,PISTON | 6 | 43022-1001 | 1 | ||
| DUST COVER | 7 | 49016-1010 | 1 | ||
| LINER,PISTON | 8 | 14008-1007 | 1 | ||
| LEVER,FRONT BRAKE | 9 | 46092-1009 | 1 | ||
| BOLT,CLUTCH LEV FITT | 10 | 92001-1056 | 1 | ||
| NUT 6MM | 11 | 312B0600 | 1 | ||
| HOLDER,MASTER CYLINDR | 12 | 43034-1001 | 1 | ||
| BOLT,HEX HEAD,6X25 | 13 | 43033-003 | 2 | ||
| DIAPHRAGM | 14 | 43028-1008 | 1 | ||
| SWITCH,BRAKE | 15 | 27010-1028 | 1 | ||
| CAP,OIL CUP | 16 | 43026-1006 | 1 | ||
| SCREW,COUNTERSUNK HED | 17 | 92001-1055 | 2 | ||
| HOSE,BRAKE,M/C,L=390 | 18 | 43059-1037 | 1 | ||
| HOSE,BRAKE,CALIPER | 19 | 43059-1043 | 1 | ||
| JOINT,BRAKE,TWO WAY | 20 | 43061-1003 | 1 | ||
| DAMPER RUBBER,CYL HSE | 21 | 43064-006 | 1 | ||
| BOLT,OIL,L=23 | 22 | 92002-1888 | 4 | ||
| WASHER-OIL BOLT | 23 | 43067-001 | 8 | ||
| BOOT,DUST | 24 | 49006-1041 | 1 |
