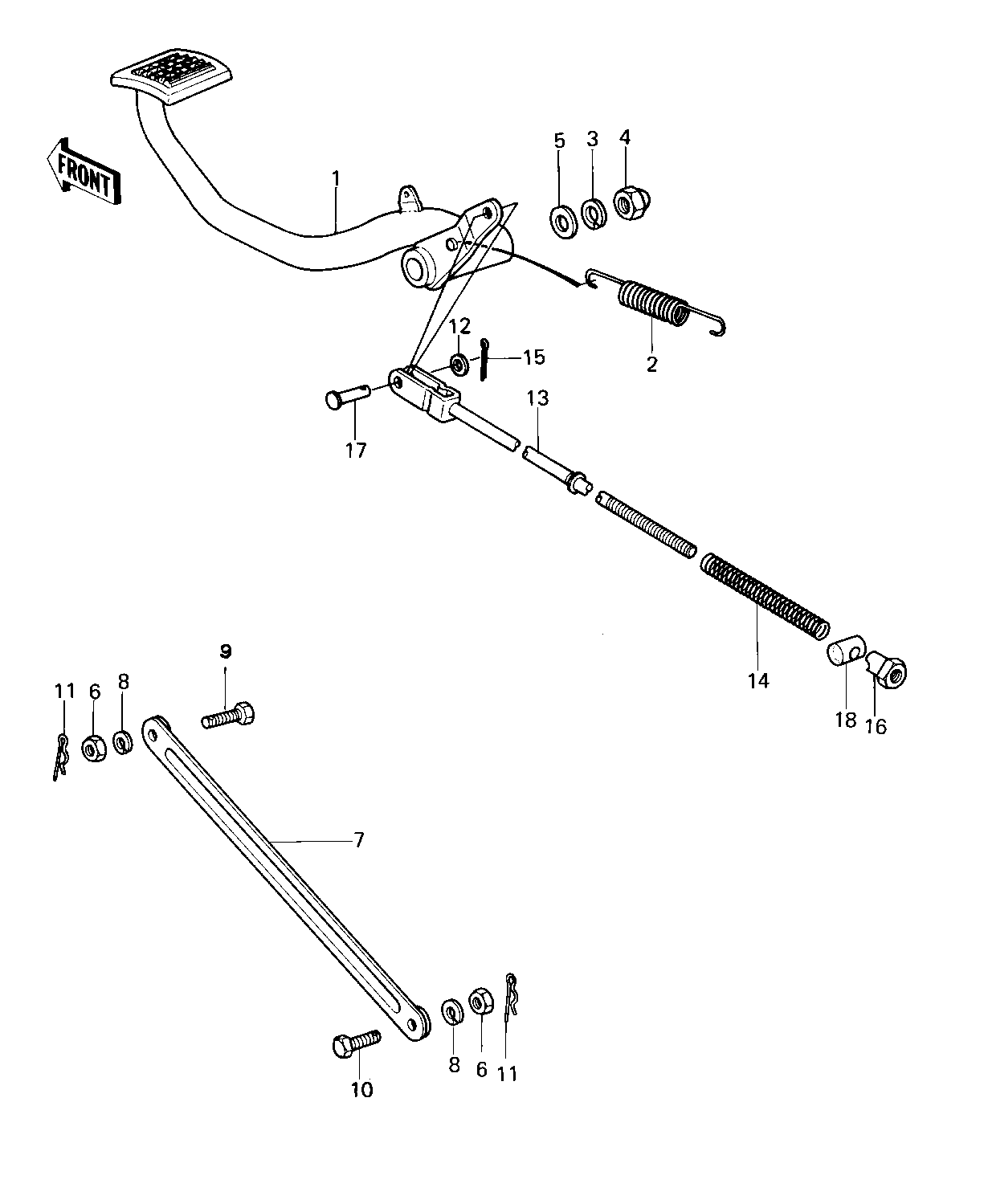

1980 LTD Belt - BRAKE PEDAL/TORQUE LINK ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,BRAKE | 1 | 43001-1035 | 1 | ||
| SPRING,BRAKE PEDAL | 2 | 43005-029 | 1 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 1 | ||
| NUT,CAP AND LOCK,8MM | 4 | 92019-013 | 1 | ||
| WASHER,8.5X20X1.6 | 5 | 92022-1561 | 1 | ||
| NUT 10MM | 6 | 315B1000 | 2 | ||
| TORQUE LINK REAR BRK | 7 | 43007-016 | 1 | ||
| WASHER SPRING 10MM | 8 | 461F1000 | 2 | ||
| BOLT TORQUE LINK FIT | 9 | 92003-017 | 1 | ||
| BOLT HEX HEAD 10MM | 10 | 92003-034 | 1 | ||
| PIN,SNAP | 11 | 554A0800 | 2 | ||
| WASHER PLAIN 6MM | 12 | 410B0600 | 1 | ||
| ROD-BRAKE | 13 | 43011-009 | 1 | ||
| SPRING,BRAKE ROD | 14 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 15 | 550D2015 | 1 | ||
| NUT-BRAKE ROD ADJUST | 16 | 92015-042 | 1 | ||
| PIN-BRAKE ROD FITTING | 17 | 92043-064 | 1 | ||
| PIN-BRAKE ROD | 18 | 92043-065 | 1 |
