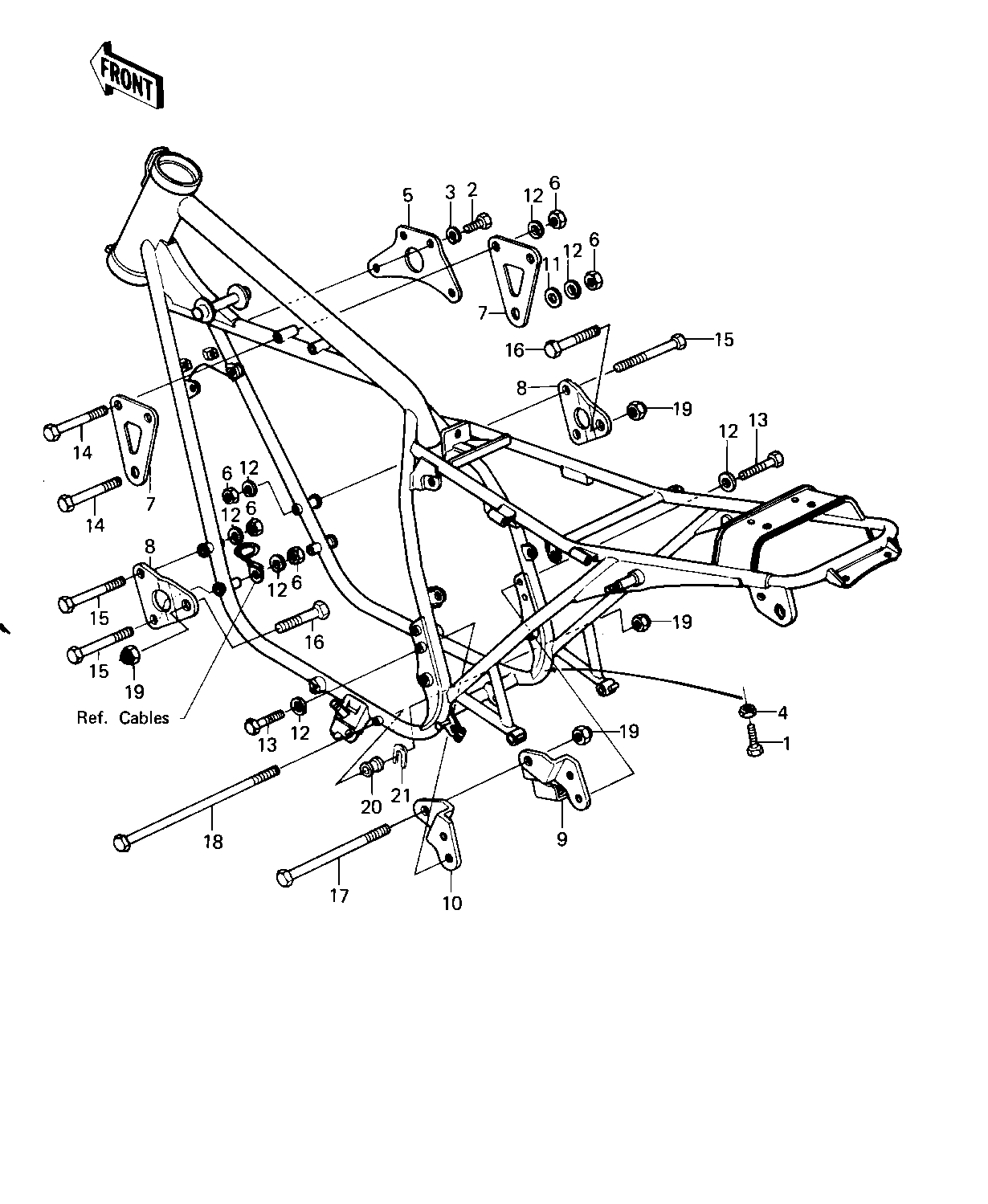

1980 LTD Belt - FRAME FITTINGS ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| BOLT-UPSET 6X14 | 2 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| NUT 6MM | 4 | 311B0600 | 1 | ||
| BRACKET,IGNITON COIL | 5 | 32058-049 | 1 | ||
| NUT,8MM | 6 | 311B0800 | 7 | ||
| BRACKET,ENGINE,HEAD | 7 | 32029-1097 | 2 | ||
| BRACKET,ENGINE,FRONT | 8 | 32029-1098 | 2 | ||
| BRACKET,ENG,REAR,R.H. | 9 | 32029-1099 | 1 | ||
| BRACKET,ENG REAR,L.H. | 10 | 32029-1100 | 1 | ||
| WASHER PLAIN 8MM | 11 | 411B0800 | 1 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 11 | ||
| BOLT,FLANGED,8X35 | 13 | 92001-1577 | 4 | ||
| BOLT,FLANGED,8X60 | 14 | 92001-1581 | 3 | ||
| BOLT,HEX HEAD,8X65 | 15 | 92001-1236 | 4 | ||
| BOLT,HEX HEAD,10X50 | 16 | 92001-1254 | 2 | ||
| BOLT,HEX HEAD,10X200 | 17 | 92001-1260 | 1 | ||
| BOLT,10X300,REAR LOWR | 18 | 92001-1272 | 1 | ||
| NUT,LOCK,10MM | 19 | 92019-021 | 4 | ||
| COLLAR,ENG MOUNTING | 20 | 92027-160 | AR | ||
| COLLAR | 20 | 92027-250 | AR | ||
| SHIM-ENG FIT FR,0.5MM | 21 | 92025-053 | AR |
