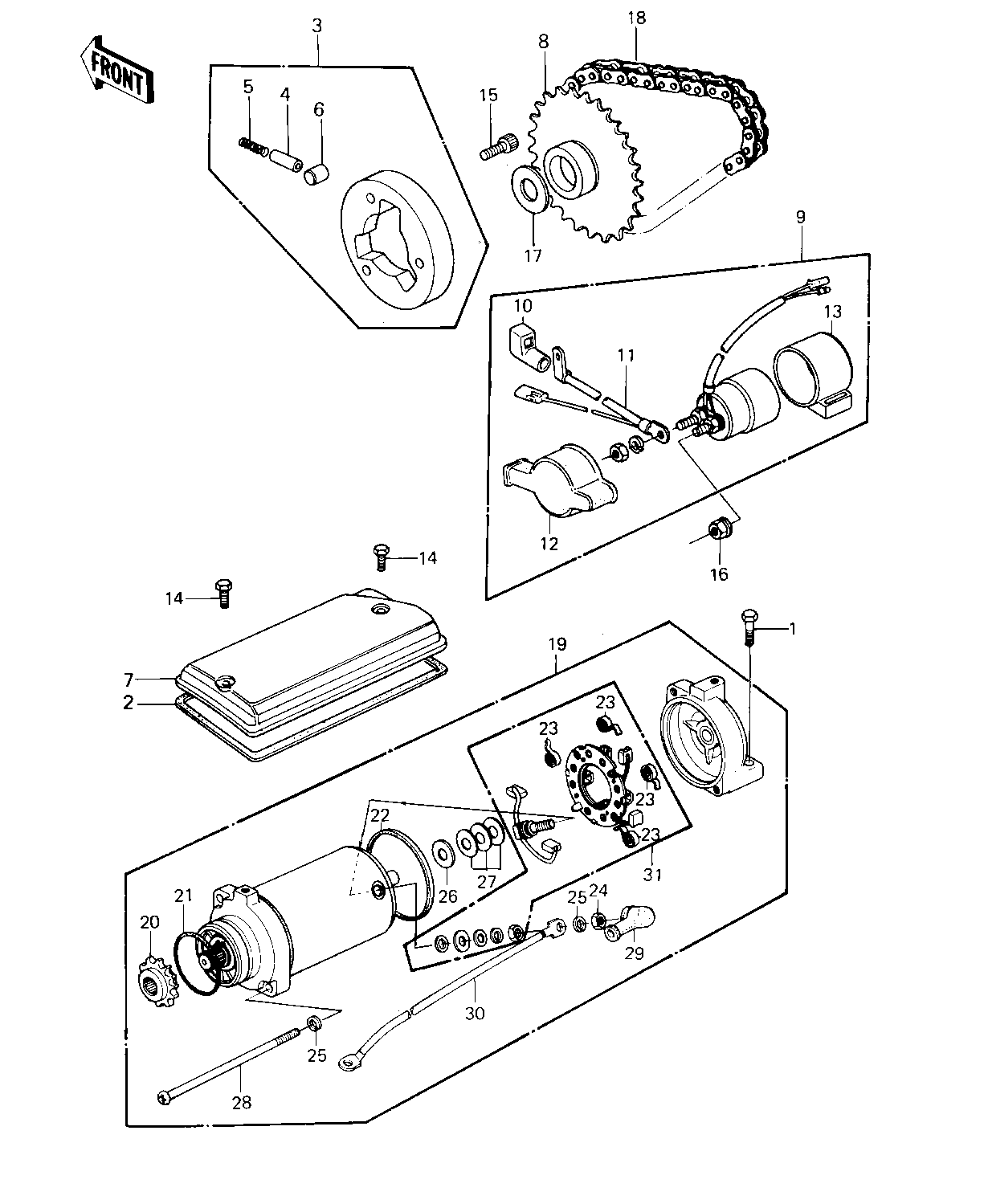

1980 LTD Belt - STARTER MOTOR/STARTER CLUTCH ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 2 | ||
| GASKET,STARTER COVER | 2 | 11009-1006 | 1 | ||
| CLUTCH ASSY,STARTER | 3 | 13193-1001 | 1 | ||
| PIN | 4 | 92043-087 | 3 | ||
| SPRING | 5 | 92081-110 | 3 | ||
| ROLLER | 6 | 92122-004 | 3 | ||
| COVER,STARTER | 7 | 14025-1284 | 1 | ||
| SPROCKET,ONWAY CLUTCH | 8 | 12046-1030 | 1 | ||
| SWITCH,MAGNETIC | 9 | 27010-1040 | 1 | ||
| CAP,MAG SWTCH TERMNL | 10 | 21017-021 | 1 | ||
| WIRE LEAD MAG SWITCH | 11 | 26011-1107 | 1 | ||
| COVER MAGNETIC SWITCH | 12 | 21141-004 | 1 | ||
| DAMPER MAG SWITCH SHK | 13 | 21064-002 | 1 | ||
| BOLT,6X10 | 14 | 92001-1151 | 2 | ||
| BOLT | 15 | 120P0816 | 3 | ||
| NUT,LOCK 6MM | 16 | 92017-014 | 1 | ||
| SPACER,25X40X1 | 17 | 92026-1004 | 1 | ||
| CHAIN,DYNAMO | 18 | 92057-1009 | 1 | ||
| MOTOR ASSY,STARTER | 19 | 21163-1011 | 1 | ||
| SPROCKET STARTNG MOT | 20 | 21053-002 | 1 | ||
| "0" RING,42.8MM | 21 | 21027-005 | 1 | ||
| "0" RING,STARTER MOTR | 22 | 92055-1086 | 1 | ||
| SPRING,CARBON BRUSH | 23 | 21040-1002 | 4 | ||
| NUT 6MM | 24 | 312B0600 | 1 | ||
| WASHER SPRING 6MM | 25 | 461F0600 | 3 | ||
| WASHER,THRUST,0.8T | 26 | 92022-1132 | 1 | ||
| WASHER,THRUST,0.2T | 27 | 21025-011 | 4 | ||
| SCREW,PAN HEAD,6X119 | 28 | 92009-1097 | 2 | ||
| CAP,STARTING MOTOR | 29 | 21017-020 | 1 | ||
| WIRE STRTER MOT LEAD | 30 | 26010-035 | 1 | ||
| BRUSH SET,CARBON | 31 | 21039-1005 | 1 |
