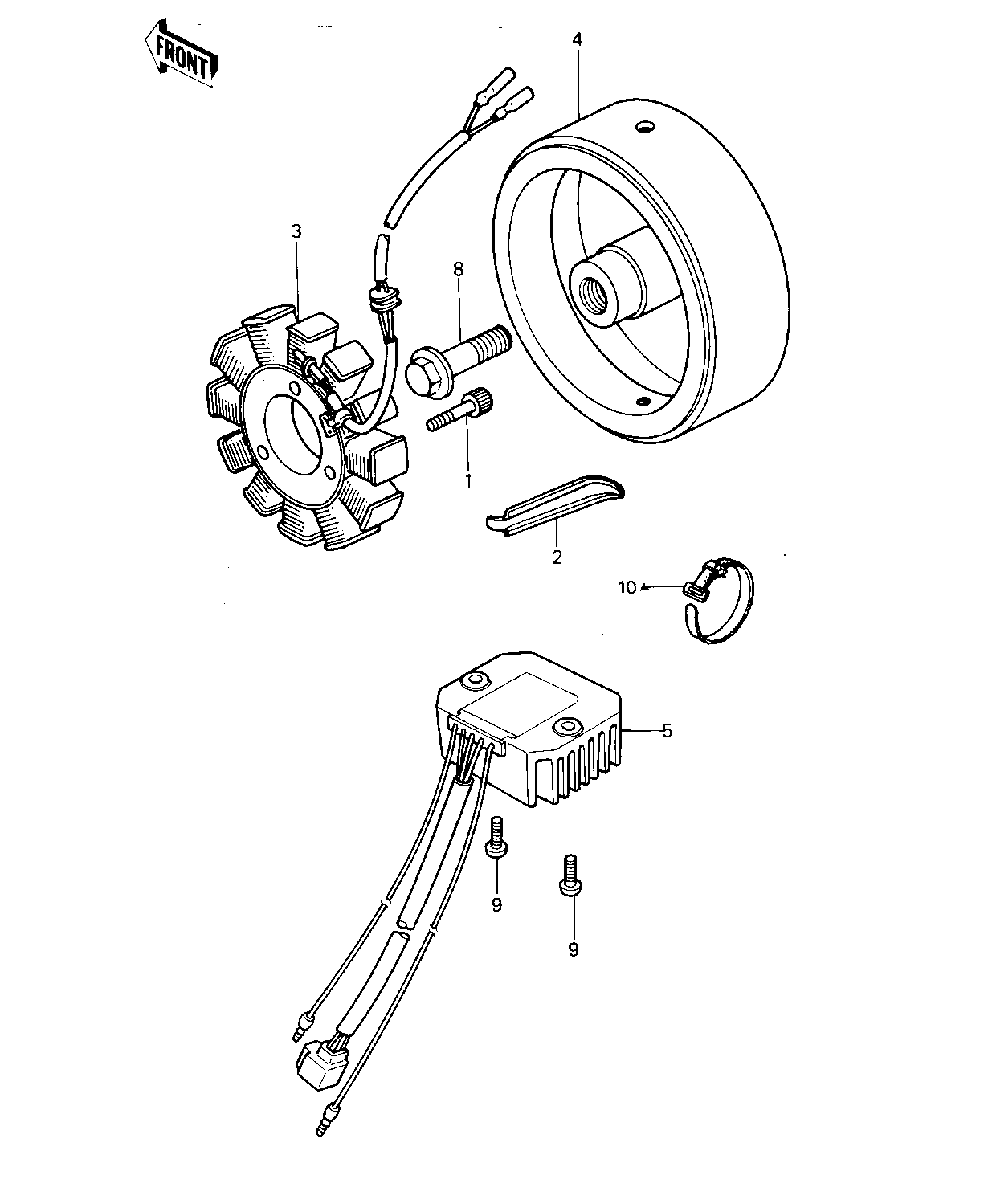

1980 LTD Belt - GENERATOR/REGULATOR ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,ALLEN,6X28 | 1 | 120P0628 | 3 | ||
| PLATE,LEAD CLAMP | 2 | 13169-1008 | 1 | ||
| STATOR.ASSY,GENERATER | 3 | 21003-1009 | 1 | ||
| FLYWHEEL | 4 | 21050-1004 | 1 | ||
| REGULATOR,VOLTAGE | 5 | 21066-1014 | 1 | ||
| CLAMP,WIRING HARNESS | 6 | 21126-008 | 1 | ||
| SCREW PAN HEAD 6X10 | 7 | 220B0610 | 1 | ||
| BOLT,10X40 | 8 | 92002-1303 | 1 | ||
| SCREW PAN HEAD 6X14 | 9 | 220B0614 | 2 | ||
| BAND,SHORT | 10 | 92072-030 | 1 |
