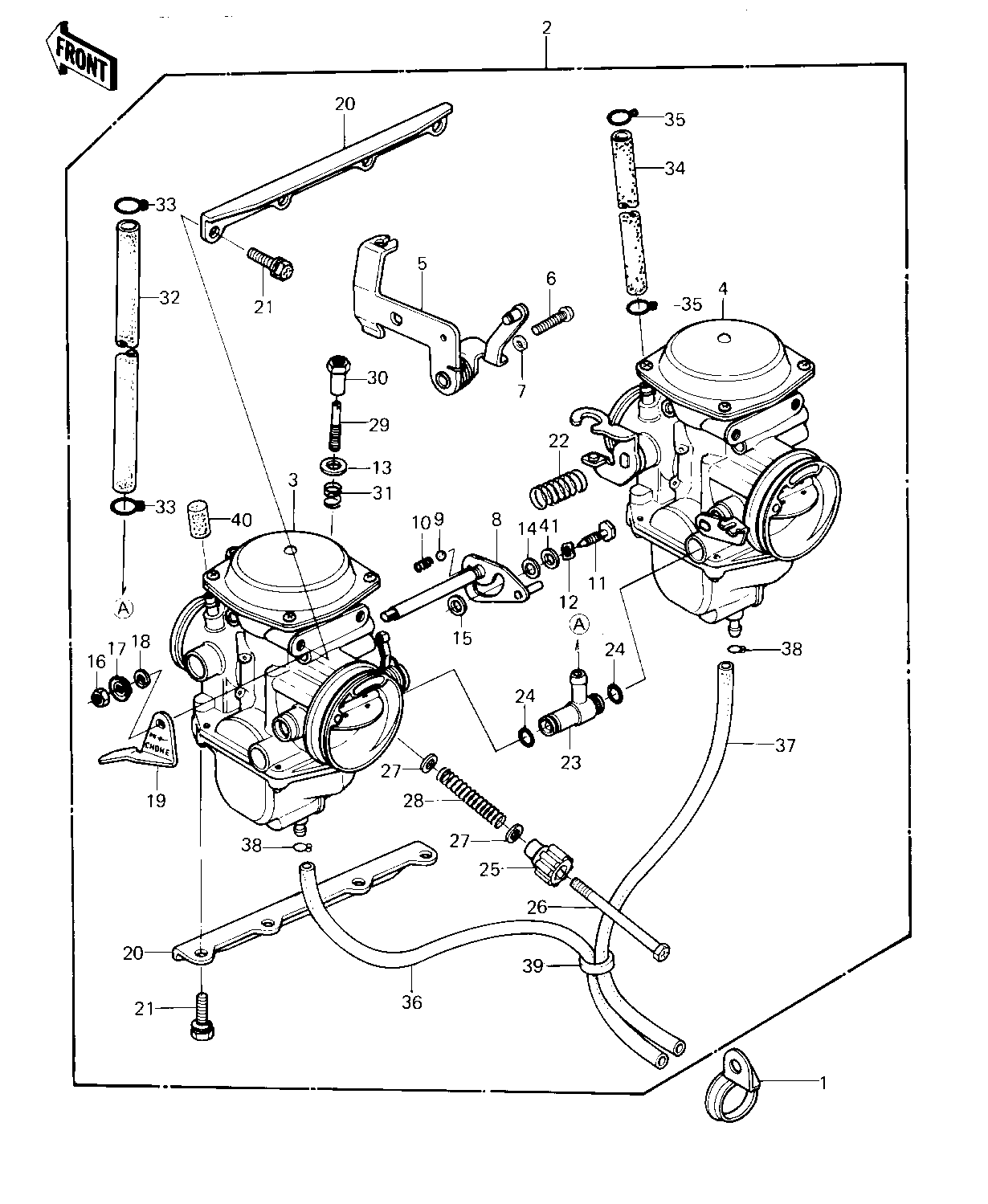

1980 LTD Belt - CARBURETOR ASSY ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLAMP,TUBE 1 92037-1153 1
CARBURETOR 2 16001-1391 1 USA
CARBURETOR ASSY 2 16001-1275 1 CANADA
CARBURETOR,L.H. 3 16001-1290 1 USA
CARBURETOR,L.H. (Canada) 3 16001-1276 1 CANADA
CARBURETOR,R.H. 4 16001-1291 1 USA
CARBURETOR,R.H. (Canada) 4 16001-1277 1 CANADA
BRACKET,THROTTLE CABL 5 11034-1805 1
SCREW PAN HEAD 5X20 6 220B0520 1
WASHER SPRING 5MM 7 461F0500 1
SHAFT,LINK 8 16041-1020 1
BALL,STEEL,3/16" 9 92140-1004 1
SPRING 10 92081-1249 1
SCREW,LINK SHAFT 11 92009-1096 1
SPRING,WAVED WASHER 12 92081-1262 1
WASHER 13 92022-1204 1
WASHER,6.1X11X0.8,POL 14 92022-1199 1
WASHER,6.4X9.4X0.8,PL 15 92022-1200 1
NUT,5MM 16 311B0500 1
WASHER,LOCK,5M/M 17 92022-1201 1
WASHER SPRING 5MM 18 461F0500 1
LEVER,CHOKE 19 13168-1065 1
PLATE,STAY 20 16065-1012 2
SCREW,6X16 21 92009-1129 8
SPRING 22 92081-1258 1
FITTING,FUEL TUBE 23 92005-1026 1
"O" RING 24 92055-1004 2
HOLDER,ADJUST 25 13091-1078 1
BOLT,HEX HEAD,5X70 26 92001-1328 1
WASHER 27 92022-1203 2
SPRING 28 92081-1251 1
SCREW,SLOTTED 29 16021-1027 1
NUT,5M/M 30 92015-1118 1
SPRING 31 92081-1252 1
TUBE,FUEL INLET 32 92059-1029 1
CLAMP,FUEL INLET TUBE 33 92037-1075 2
HOSE,FUEL INLET 34 92059-1001 1
CLAMP,TUBE 35 92037-1682 2
HOSE,FUEL OVERFLOW 36 92059-111 1
HOSE,FUEL OVERFLOW 37 92059-111 1
CLAMP,TUBE,OVERFLOW 38 92037-1142 2
TUBE,CLAMP 39 92059-1141 1
CAP,RUBBER 40 11012-1129 1
WASHER,6.5X11X1.2,STL 41 92022-1207 1
