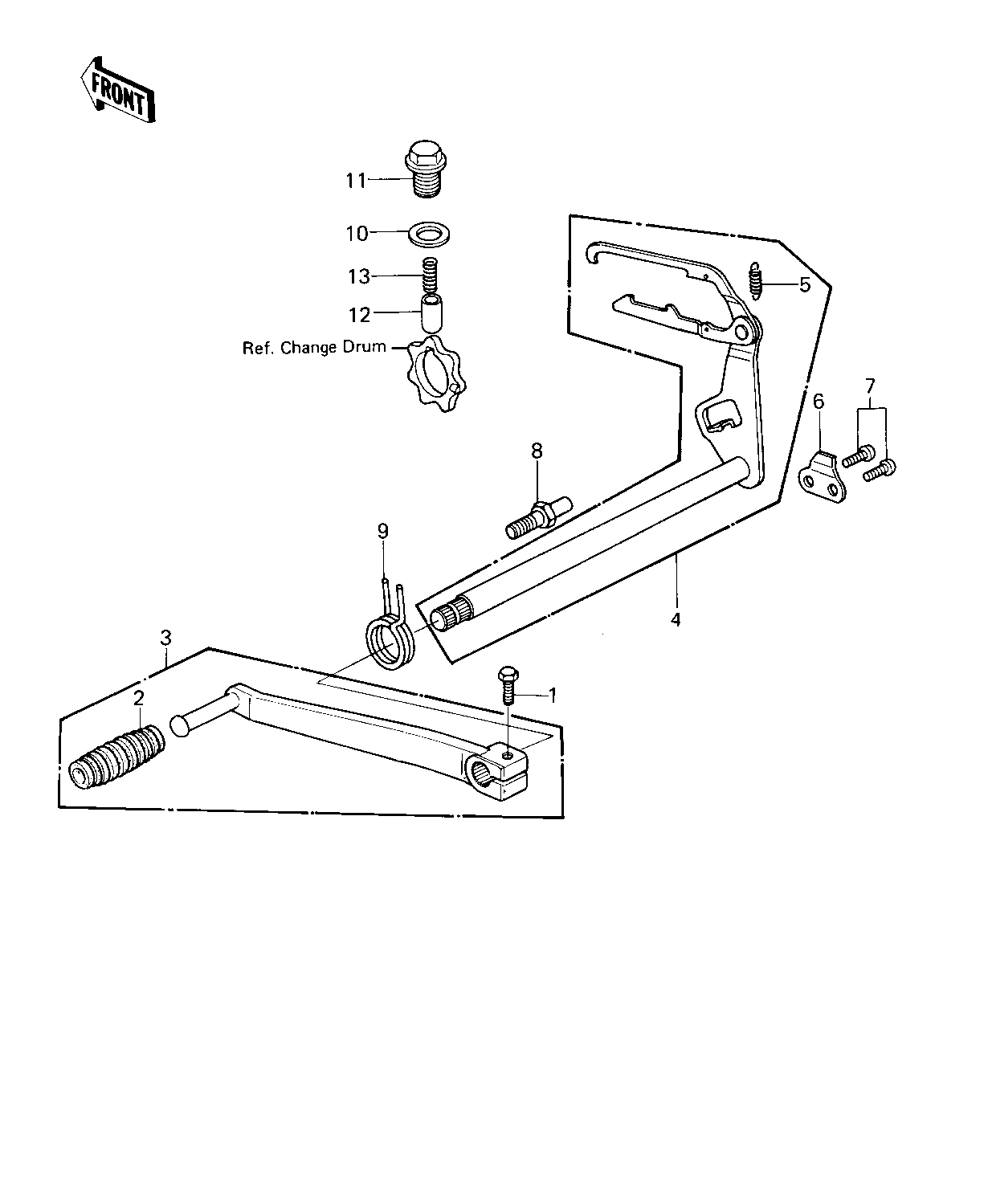

1980 LTD Belt - GEAR CHANGE MECHANISM ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| DAMPER,CHANGE PEDAL | 2 | 92160-1036 | 1 | ||
| PEDAL ASSY,GEAR CHANG | 3 | 13242-1019 | 1 | ||
| LEVER COMP,CHNG SHAFT | 4 | 13161-1001 | 1 | ||
| SPRING-CHANGE LEVER | 5 | 92081-076 | 1 | ||
| PLATE,GEAR SHIFT LEV | 6 | 13169-011 | 1 | ||
| SCREW PAN HEAD 6X16 | 7 | 220B0616 | 2 | ||
| BOLT,RETURN SPRING | 8 | 92001-1401 | 1 | ||
| SPRING,CHG PEDL RTRN | 9 | 92083-028 | 1 | ||
| GASKET,15.5X22X1 | 10 | 11009-1008 | 1 | ||
| BOLT,NEUTRAL POSITION | 11 | 92001-1037 | 1 | ||
| PIN-NEUTRAL POSITION | 12 | 92043-076 | 1 | ||
| SPRING | 13 | 92081-112 | 1 |
