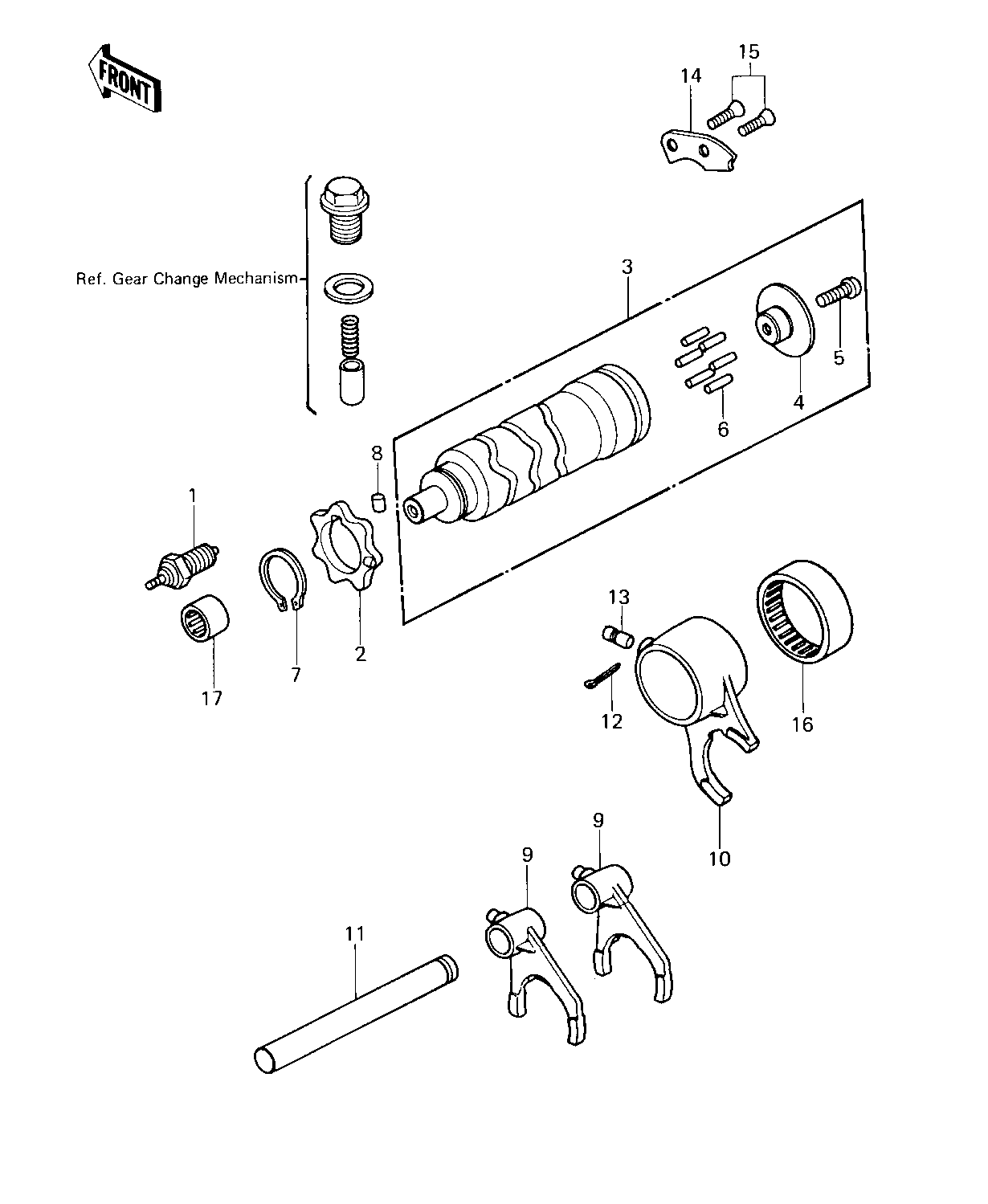

1980 LTD Belt - GEAR CHANGE DRUM & FORKS ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,NEUTRAL | 1 | 13151-5002 | 1 | ||
| CAM-CHANGE DRUM | 2 | 13145-1058 | 1 | ||
| DRUM ASSY,CHANGE | 3 | 13239-1011 | 1 | ||
| PLATE,SHIFT DRUM PIN | 4 | 13142-016 | 1 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 1 | ||
| PIN GEAR CHANGE DRUM | 6 | 92042-014 | 6 | ||
| CIRCLIP,30MM | 7 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 8 | 610A0406 | 2 | ||
| FORK-SHIFT,1,4&2,3 | 9 | 13140-1067 | 2 | ||
| FORK-SHIFT,5TH&TOP | 10 | 13140-1053 | 1 | ||
| ROD,SHIFT | 11 | 13209-022 | 1 | ||
| PIN COTTER 3.0X20 | 12 | 550D3020 | 1 | ||
| DOWEL PIN,8X18 | 13 | 92042-021 | 1 | ||
| PLATE,SIFT DRM POSITN | 14 | 14014-1001 | 1 | ||
| SCREW,CSK,6X16 | 15 | 92009-1007 | 2 | ||
| BRG,NEDL,37BTM4312 | 16 | 92046-051 | 1 | ||
| BEARING,NEEDLE,HK1210 | 17 | 92046-1010 | 1 |
